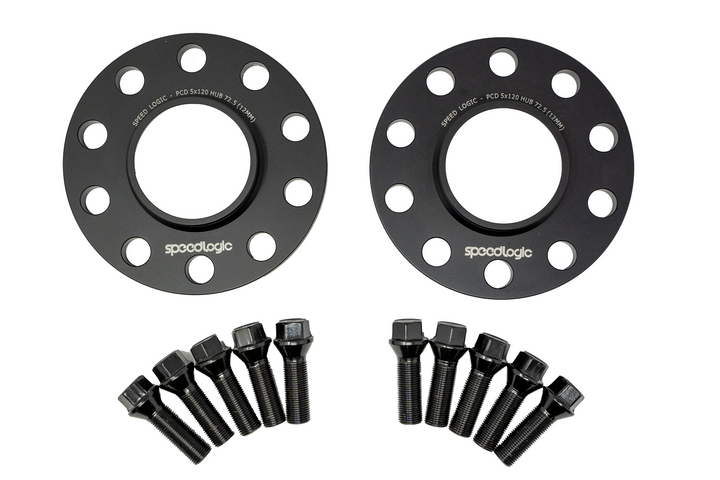

Speed Logic Wheel Spacers w/ 10 Extended Bolts – BMW F-Series

OVERVIEW

Speed Logic Wheel Spacers for F-Series BMWs push the wheels out to fill the arch, giving the car a more aggressive stance while improving handling and sharpening the way it sits. They are CNC machined from high-grade 7075-T6 aluminum alloy and anodized black for the best protection, and each box contains a pair of fully hub-centric spacers along with extended Grade 10.9 replacement bolts. Sizes run from 5mm to 20mm, and two sets are needed to cover the whole car.

SPECS

• CNC machined from high-grade 7075-T6 aluminum alloy
• Black anodized finish for corrosion protection
• Available in 5mm, 10mm, 12mm, 15mm, 18mm and 20mm thicknesses
• Bolt pattern: 5x120
• Center bore: 72.6mm, fully hub-centric
• Includes 10 extended M14 x 1.25 cone seat lug bolts, Grade 10.9 zinc coated
• Torque: 105 ft-lb (142 Nm)
• Supplied as a pair (2 spacers) - two sets are required to cover all four corners of the car

PARTS INCLUDED

• (2) Speed Logic wheel spacers in the thickness selected
• (10) Extended M14 x 1.25 Grade 10.9 cone seat lug bolts

TECH RESOURCES

Additional Parts Required

• None. The extended lug bolts needed to mount the wheels over the spacers are supplied in the box.
• Order two sets if you are spacing all four corners - one set covers two wheels.
• A torque wrench is supplied by the installer; torque the wheel bolts to 105 ft-lb (142 Nm) and re-check after the first drive.

Installation

• No installation document is published for these spacers. They fit between the hub and the wheel and are secured with the supplied extended bolts, and our team is available to help if you have questions about sizing or fitment.
• Bolt length is matched to spacer thickness - do not mix up bolts between different spacer sizes.

Notes

• Do not use 10mm spacers on the rear of an F30 or F31. Confirm clearance before fitting 18mm or 20mm spacers.
• Important: some F-chassis models take G chassis spacers instead of these - the F90 M5, the F91/F92/F93 M8, the F48 X1, the F39 X2 and the F95/F96/F97/F98 X-M models.
• Does not fit the F15 / F16 / F85 / F86 X5, X6, X5 M and X6 M.
• Each box covers two wheels - order two sets for the full car.
