SPL Front Lower Control Arms – BMW E8X / E9X / F2X / F3X / F8X / G2X

OVERVIEW

SPL Parts Front Lower Control Arms (FLCA) give the BMW E8X, E9X, F2X, F3X, F8X and G2X roll center, camber and track width adjustment with the correct ball joint angle for full articulation. More negative camber raises peak lateral grip and stops the outer tire shoulder wearing away, while a wider front track reduces weight transfer to the outside tire. Lowering a car raises its roll center and increases body roll; the stackable 304 stainless roll center spacers correct that across a range of ride heights.

The main arm is slotted so the factory pinch bolts can still be used, and the rotating clamps on SPL's exclusive Double Adjuster lock down camber and track width settings with no jam nuts to fight. The Double Adjuster is machined from 4130 chromoly, gun drilled to reduce weight and electroless nickel plated; blue anodized titanium hardware trims further unsprung weight. FK PTFE-lined spherical bearings and rod ends replace the OEM joints that flex and bind. F2X / F3X / G2X arms include a ride height sensor bracket so the factory sensor location is unchanged regardless of arm length; E9X and F8X arms are the street version with the headlight adjusting rod.

Select your chassis and drivetrain from the drop-down. The F2X / F3X arms are drivetrain-specific — the RWD and xDrive part numbers are not interchangeable — while the single G2X part covers both sDrive and xDrive.

SPECS

• Adjustable for camber, roll center and track width
• 6061-T6 billet aluminum arms, clamps and spacers, black anodized
• Electroless nickel plated 4130 chromoly Double Adjuster, gun drilled
• Ti-6Al-4V titanium socket head cap screws (blue anodized)
• Stackable 304 stainless steel roll center spacers in 1/8" and 1/4" sizes
• 5/8" 4140 chromoly stud
• Low friction three-piece PTFE-lined FK spherical bearings and rod ends (F1 spec, self-cleaning)
• Correct ball joint angle for full articulation; slotted main arm retains the factory pinch bolts
• Ride height sensor bracket included (F2X / F3X / G2X); headlight adjusting rod included (E9X / F8X street version)
• Sold as a pair (one pair per vehicle)
• Made in the USA

PARTS INCLUDED

• Two SPL Parts front lower control arms with Double Adjusters, FK bearings and titanium hardware
• Stackable stainless steel roll center spacers
• Ride height sensor brackets (F2X / F3X / G2X) or headlight adjusting rod (E9X / F8X)
• Complete kit as supplied by SPL Parts; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• Four-wheel alignment after installation — mandatory. Camber, track width and roll center all change when these arms are fitted.
• Professional installation is recommended; these are safety-critical suspension components.
• Corner weighting is recommended for track use.
• To tune caster alongside the new arms, pair them with the SPL Front Tension Rods / Caster Rods or the SPL Front Caster Rod Bushings.
• Bump steer changes with lower arm geometry; correct it with the SPL Bumpsteer Adjustable Tie Rod Ends.

Installation

• SPL Parts SPL FLCA F8X front lower control arms — installation instructions (PDF)
• SPL Parts SPL FLCA E9X front lower control arms — installation instructions (PDF)
• SPL Parts SPL FLCA F3X front lower control arms (RWD) — installation instructions (PDF)
• SPL Parts SPL FLCA F3X IX front lower control arms (xDrive) — installation instructions (PDF)
• SPL Parts SPL FLCA G2X front lower control arms — installation instructions (PDF)

Notes

• SPL FLCA E9X and SPL FLCA F3X fit rear-wheel-drive cars only. xDrive F2X / F3X cars take SPL FLCA F3X IX. SPL FLCA G2X fits both sDrive and xDrive.
• Expect a small to moderate increase in road noise and harshness, more so on rough roads and when combined with a spherical tension rod; quality dampers and compliant tires reduce it.
• Price is for parts only; labor and alignment are not included.
• Confirm your exact model, chassis code and drivetrain with Speed Logic before ordering.

PART NUMBER

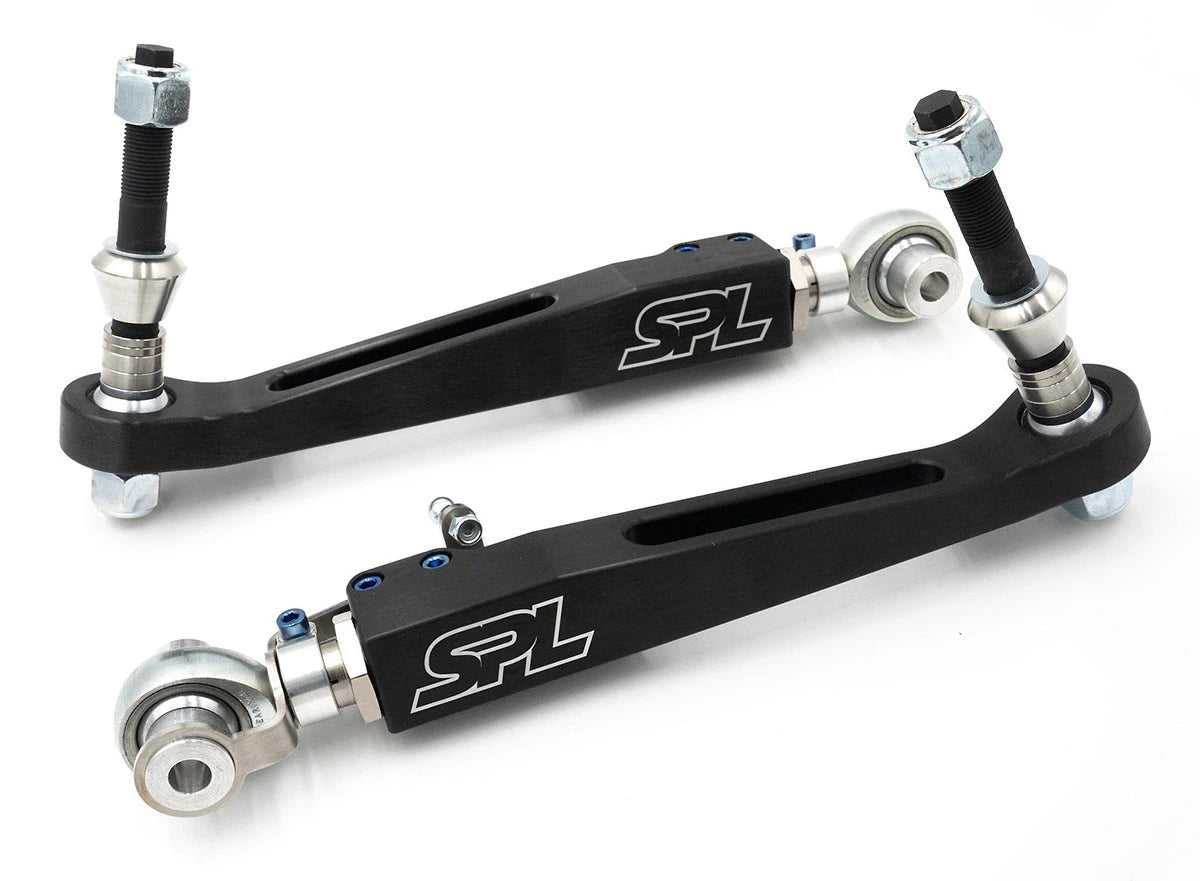

• SPL FLCA F8X — F80 M3, F82 / F83 M4, F87 M2

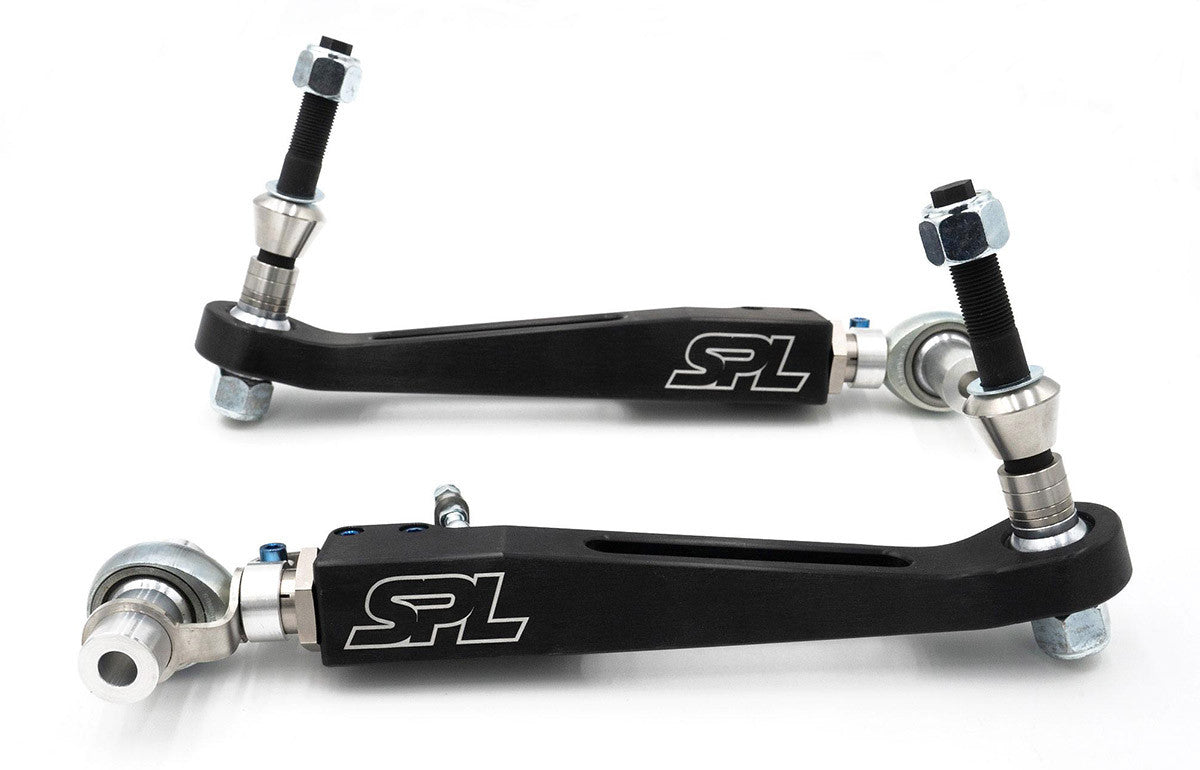

• SPL FLCA E9X — E82 / E88 135i and 1M, E90 / E92 / E93 335i (RWD only)
• SPL FLCA F3X — F2X / F3X RWD
• SPL FLCA F3X IX — F2X / F3X xDrive

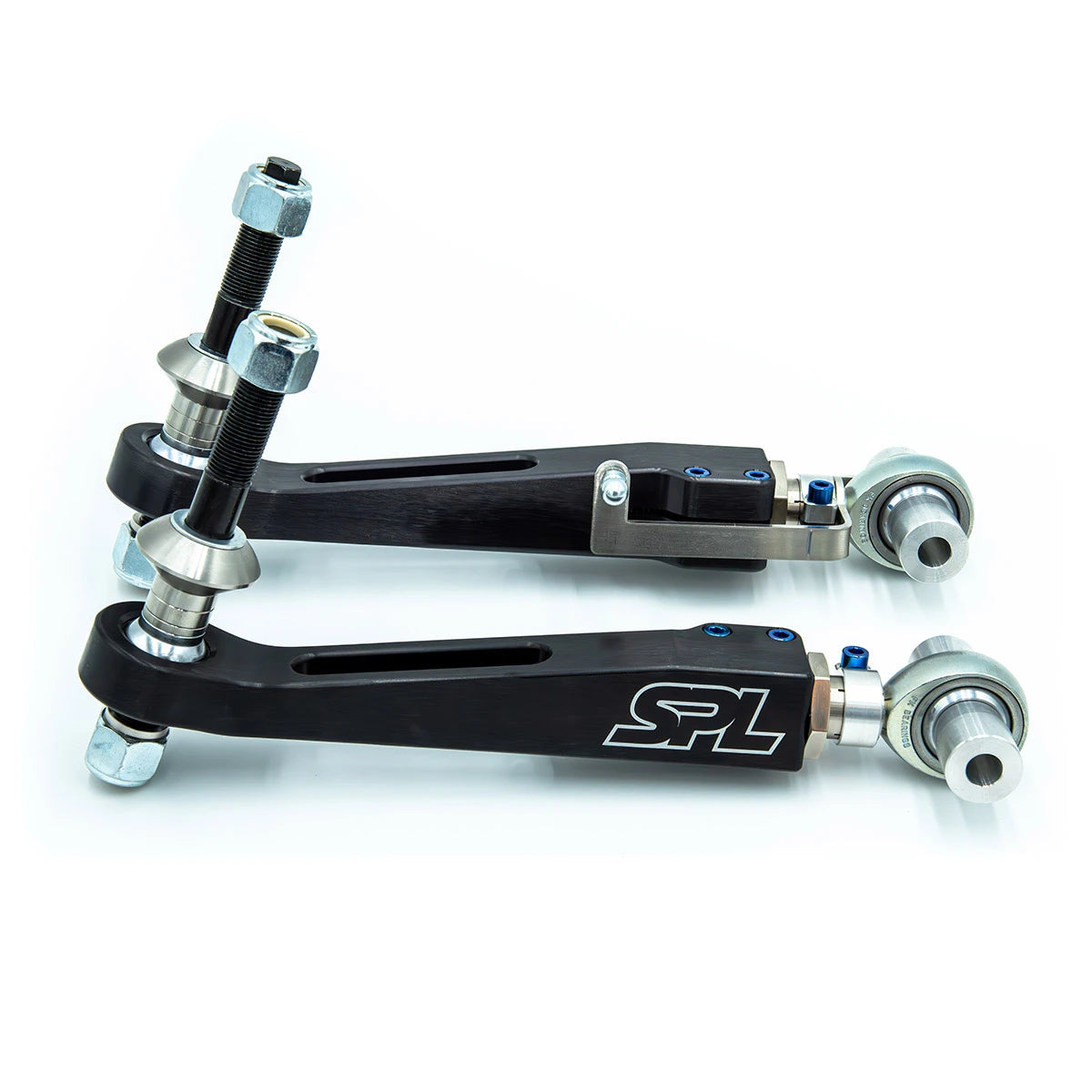

• SPL FLCA G2X — G20 / G22 / G23 / G26 sDrive and xDrive
