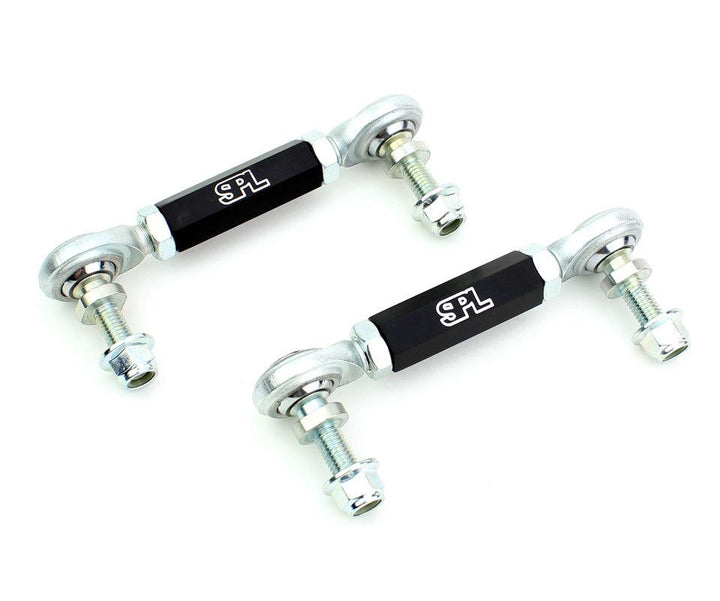

SPL Rear Swaybar Endlinks – BMW G2x / G29 / G42 & Toyota GR Supra A90

OVERVIEW

SPL Parts Rear Endlinks (RE) use massive 1/2" FK rod ends to give the highest load capacity for use with stock or stiffer aftermarket sway bars. Custom machined high misalignment studs offer extreme articulation capability of 65 degrees, which prevents the endlink from binding when different adjustment holes on an aftermarket bar are used.

The endlinks are also length adjustable so preload can be taken out of the sway bars — preload that results from uneven settling of springs or uneven suspension heights after corner weighting.

SPECS

• 1/2" FK rod ends for high load capacity with stock or aftermarket bars
• Custom machined high misalignment studs
• 65 degrees of articulation to prevent binding
• Length adjustable to eliminate sway bar preload
• Sold as a pair (one pair per vehicle)
• Made in the USA

PARTS INCLUDED

• Two SPL Parts adjustable rear swaybar endlinks with FK rod ends and high misalignment studs
• Complete kit as supplied by SPL Parts; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• None required to run the part. SPL specifies no additional hardware beyond what is supplied.
• Corner weighting is recommended for track use, and the endlinks should be set to zero preload afterwards.
• Professional installation is recommended; endlinks are a safety-critical suspension component.

Installation

• SPL Parts SPL RE G29 rear endlinks — installation instructions (PDF)

Notes

• Fitment as published by SPL Parts. Confirm with Speed Logic before ordering if you are unsure which chassis code your car carries.

PART NUMBER

• SPL RE G29
