ST Suspensions XTA Coilover Kit – BMW 325i / 328i / 330i / 335i / 335d (E90/E92)

OVERVIEW

The ST XTA coilover kit for the E90 sedan and E92 coupe 3 Series combines height adjustment with 16-click rebound damping and camber-adjustable top mounts, so the same kit can serve a lowered daily driver or a track-day car.

ST is the value brand of KW Automotive, and every ST coilover is built by hand at KW in Fichtenberg, Germany. The XTA sits at the top of the ST coilover range: height adjustable, with 16 distinct clicks of rebound damping adjustment and aluminum unibal top mounts that also allow camber adjustment. The struts are galvanized zinc-coated steel and the spring perch is a composite polyamide item with a stainless steel insert. The kit ships preset to ST's factory-recommended damper settings.

SPECS

• Damper family: ST XTA (height and rebound adjustable, adjustable top mounts)
• E90 sedan lowering range: 1.2 in to 2.4 in front, 1.0 in to 2.2 in rear
• E92 coupe lowering range: 0.8 in to 1.8 in front, 0.8 in to 1.6 in rear
• Damping adjustment: rebound, 16 distinct clicks
• Top mounts: aluminum unibal, camber adjustable
• Strut material and finish: galvanized zinc-coated steel
• Spring perch: composite polyamide with stainless steel insert
• Warranty: 5-year limited, unlimited mileage

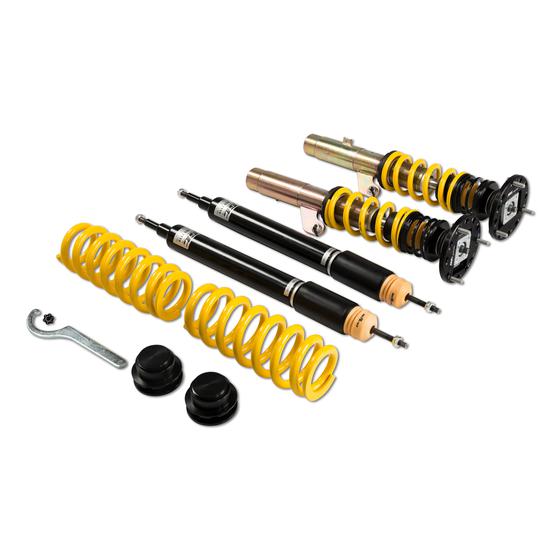

PARTS INCLUDED

• Front and rear coilover struts with ST race springs
• Aluminum unibal camber-adjustable front top mounts
• Spanner wrench for ride-height adjustment
• ST rebound adjustment knob
• Damper setup manual with ST reference settings
• Installation documentation and technical component report

TECH RESOURCES

• Required: four-wheel alignment after installation and after any ride-height change.
• Required: professional installation with spring compressors and strut service tools.
• Rear-wheel-drive only; xDrive cars are not covered. Not for cars with Electronic Damping Control (EDC).
• Wheel spacers may be needed with stock wheels and tires.
• The 335is is not covered by this part number.
• Vehicle-specific installation instructions for ST 18220832 ship in the box with the kit.
• Damper setup manual with ST reference rebound settings is included in the box.
• Speed Logic offers professional installation and alignment: request an appointment.

PART NUMBER

• 18220832
