Swift Springs Spec-R Lowering Springs – BMW M3 (F80)

OVERVIEW

Swift Springs' Spec-R line uses the company's signature small-ID, high-travel spring design for a more linear rate through the shock's travel than a typical high-ID lowering spring. For the F80 M3, the Spec-R kit lowers ride height for street and track use while working with the factory S55's damper valving.

SPECS

• Front spring rate: 4.8 kgf/mm
• Rear spring rate: 12.8 kgf/mm
• Front drop: approx. 1.0 in
• Rear drop: approx. 0.4 in
• Swift small-ID, high-travel spring construction

PARTS INCLUDED

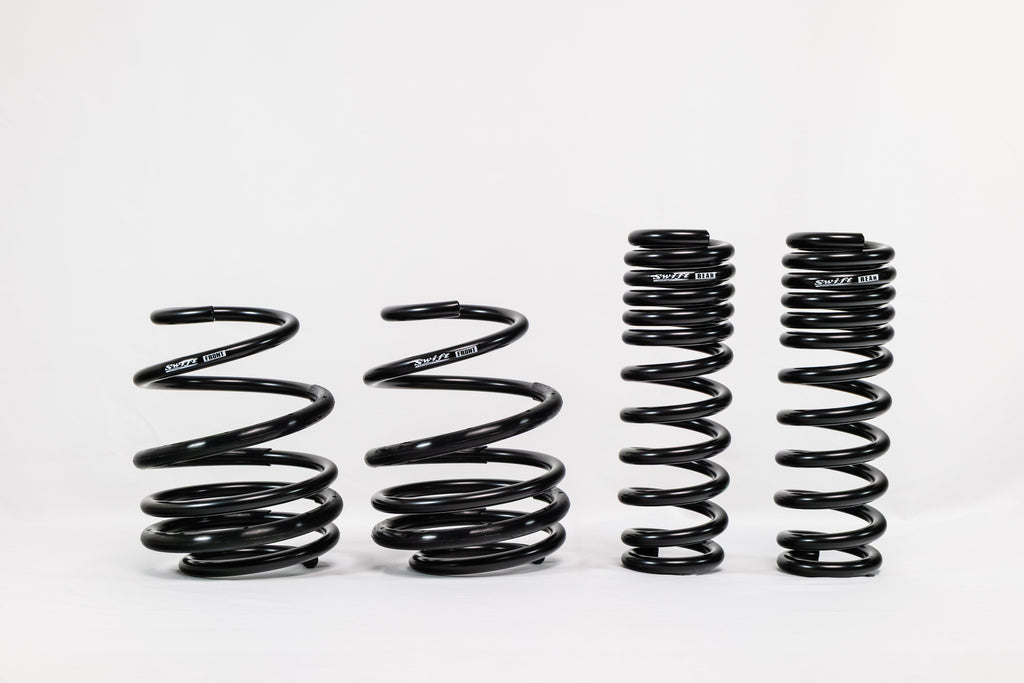

• Front and rear Spec-R lowering springs (set of 4), as supplied by Swift Springs

TECH RESOURCES

Required Parts

• None. Swift Springs specifies no additional hardware beyond the factory strut/shock assembly for installation.

Notes

• Swift Springs does not publish an installation PDF or a vehicle-specific install video for this kit; installation follows standard spring-compressor procedure onto the factory struts/shocks.

PART NUMBER

• 4X909R
