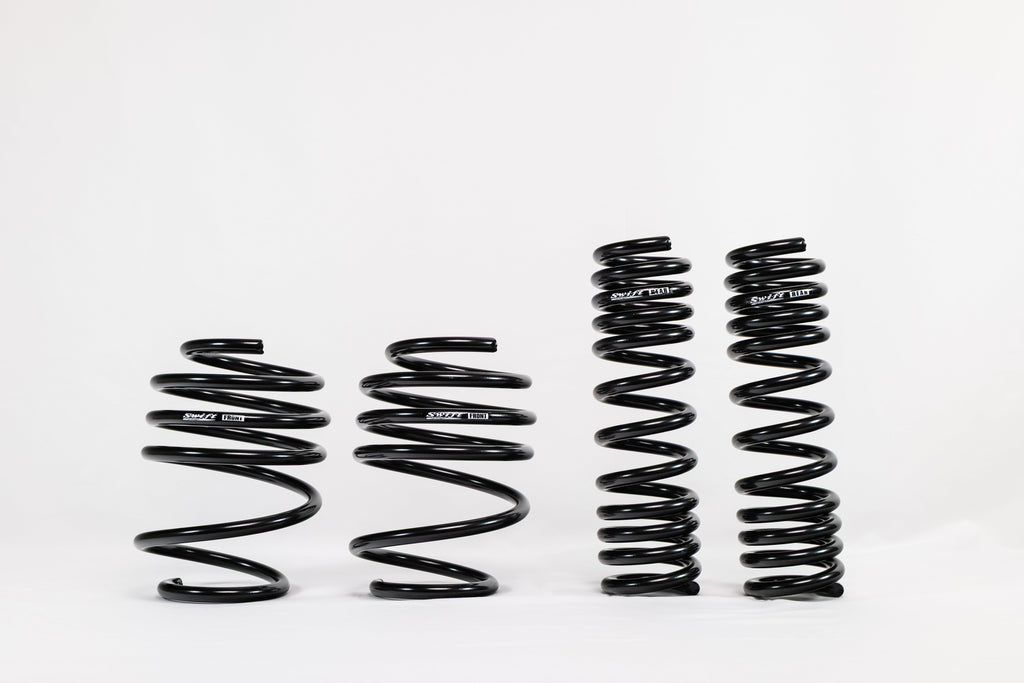

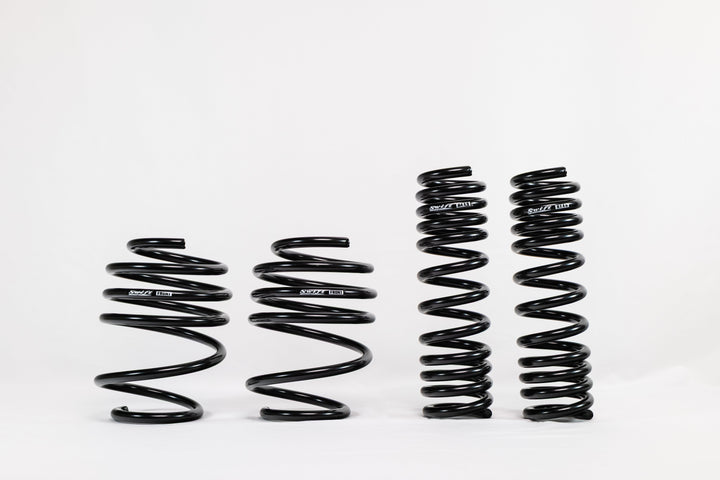

Swift Springs Spec-R Lowering Springs – BMW M3 (G80)

OVERVIEW

Swift Springs' Spec-R line uses the company's signature small-ID, high-travel spring design for a more linear rate through the shock's travel than a typical high-ID lowering spring. For the G80 M3, the Spec-R kit lowers ride height for street and track use while working with the factory S58's damper valving.

SPECS

• Front spring rate: 5.6 kgf/mm
• Rear spring rate: 13.5 kgf/mm
• Front drop: approx. 1.3 in
• Rear drop: approx. 1.0 in
• Swift small-ID, high-travel spring construction

PARTS INCLUDED

• Front and rear Spec-R lowering springs (set of 4), as supplied by Swift Springs

TECH RESOURCES

Required Parts

• None. Swift Springs specifies no additional hardware beyond the factory strut/shock assembly for installation.

Notes

• Swift Springs does not publish an installation PDF or a vehicle-specific install video for this kit; installation follows standard spring-compressor procedure onto the factory struts/shocks.
• Swift's own product page confirms fitment for the M3 and M3 Competition (G80) only; it does not state compatibility with the M4 (G82/G83), so this listing is scoped to the M3 sedan. Confirm with Swift Springs before assuming M4 fitment.

PART NUMBER

• 4X930R
