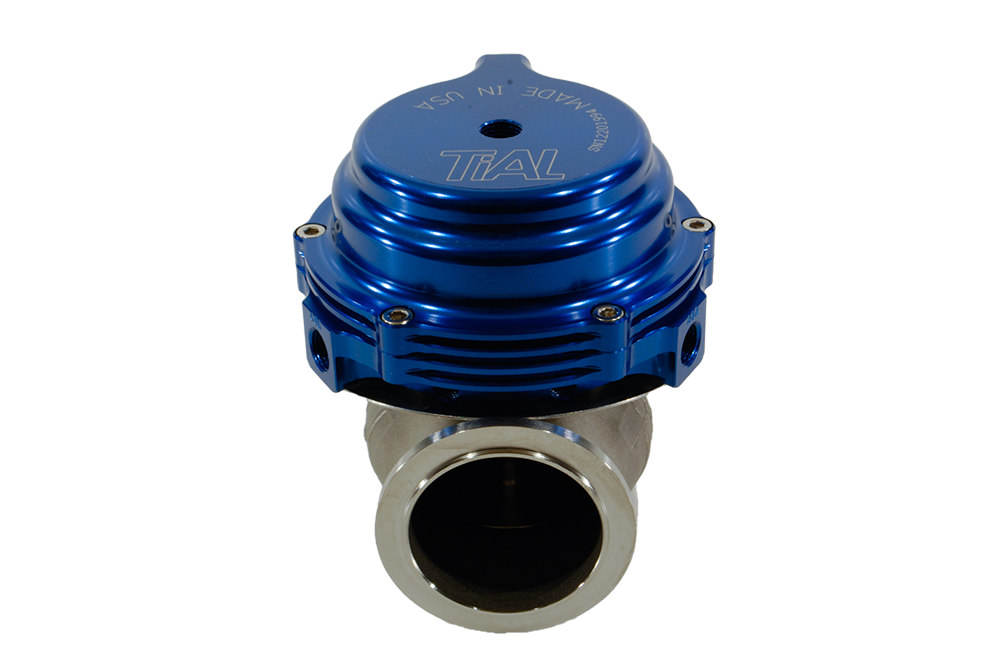

TiAL Sport MV-R 44mm External Wastegate – All Springs & Colors

OVERVIEW

The MV-R is TiAL Sport's 44 mm external wastegate, more compact than any other current 44 or 46 mm gate and flowing 50 lb/min. It is the step up from the 38 mm MV-S for higher-power single-turbo builds where a smaller gate cannot hold the target boost, and it is a direct bolt-on replacement for TiAL's legacy V44.

Like the MV-S it ships as a complete assembly — valve seat, air and coolant fittings, port plugs, inlet and outlet flanges and clamps, and springs are all in the box.

SPECS

• Valve size: 44 mm
• Mass flow: 50 lb/min
• Control range: 0.3–1.5 bar
• V-band inlet and outlet; mating weld flanges are 304L stainless
• High-temperature alloy valve and stainless steel valve housing, valve seat and bushing
• High-temperature silicone-reinforced diaphragm; stainless steel spring
• Integrated −4AN water-cooling ports
• 3 lower and 2 upper air ports; plugs supplied for unused ports
• Direct bolt-on for the legacy TiAL V44
• Clamp style: new band clamp set or V-clamp set
• Colors: Silver, Blue, Black, Purple, Red; position-sensor version in Black only

PARTS INCLUDED

• MV-R wastegate assembly
• Valve seat
• Inlet V-band clamp and flange; outlet V-band clamp and flange
• CNC-machined air and coolant fittings
• Plugs for unused air ports
• Spring or springs per the option selected

TECH RESOURCES

Additional Parts Required

• Exhaust fabrication. The supplied flanges must be welded into the manifold or hot side. Spare flanges and clamps: TiAL Sport MV-S / MV-R Wastegate Flanges & V-Band Clamps.
• Coolant plumbing to the −4AN ports. For a 44 mm gate that runs without coolant lines, see the MV-RAR on TiAL Sport MV-SAR / MV-RAR Motorsport External Wastegate.
• A boost control source — manual controller, electronic solenoid or ECU-driven.

Installation

• TiAL Sport MV-R product drawing (PDF)
• TiAL Sport MV-R spring selection guide (PDF)
• TiAL Sport wastegate routing and plumbing guide (PDF)
• TiAL Sport wastegate static bench-testing instructions (PDF)
• TiAL Sport wastegate FAQ (PDF)

Notes

• Universal part: fits any turbocharged application with a hot side built for a 44 mm V-band wastegate.
• MV-Series gates are custom-built; TiAL notes assembly can take up to two weeks.
• Competition / off-road use only. Price is for parts only; labor and fabrication are not included.

PART NUMBER

• 004770 — MV-R 44mm, 0.5 bar, Silver
• 003867 — MV-R 44mm, 0.5 bar, Blue
• 003816 — MV-R 44mm, 0.5 bar, Black
• 005937 — MV-R 44mm, 0.5 bar, Purple
• 006749 — MV-R 44mm, 0.5 bar, Red
• 003513 — MV-R 44mm, 1.0 bar, Silver
• 003540 — MV-R 44mm, 1.0 bar, Blue
• 003414 — MV-R 44mm, 1.0 bar, Black
• 003409 — MV-R 44mm, 1.0 bar, Purple
• 003444 — MV-R 44mm, 1.0 bar, Red
• 001930 — MV-R 44mm, All Springs set, Silver
• 002948 — MV-R 44mm, All Springs set, Blue
• 002949 — MV-R 44mm, All Springs set, Black
• 002950 — MV-R 44mm, All Springs set, Purple
• 002951 — MV-R 44mm, All Springs set, Red
• 007256 — MV-R 44mm with position sensor, Black
• 006169 — MV-R position sensor retrofit kit
