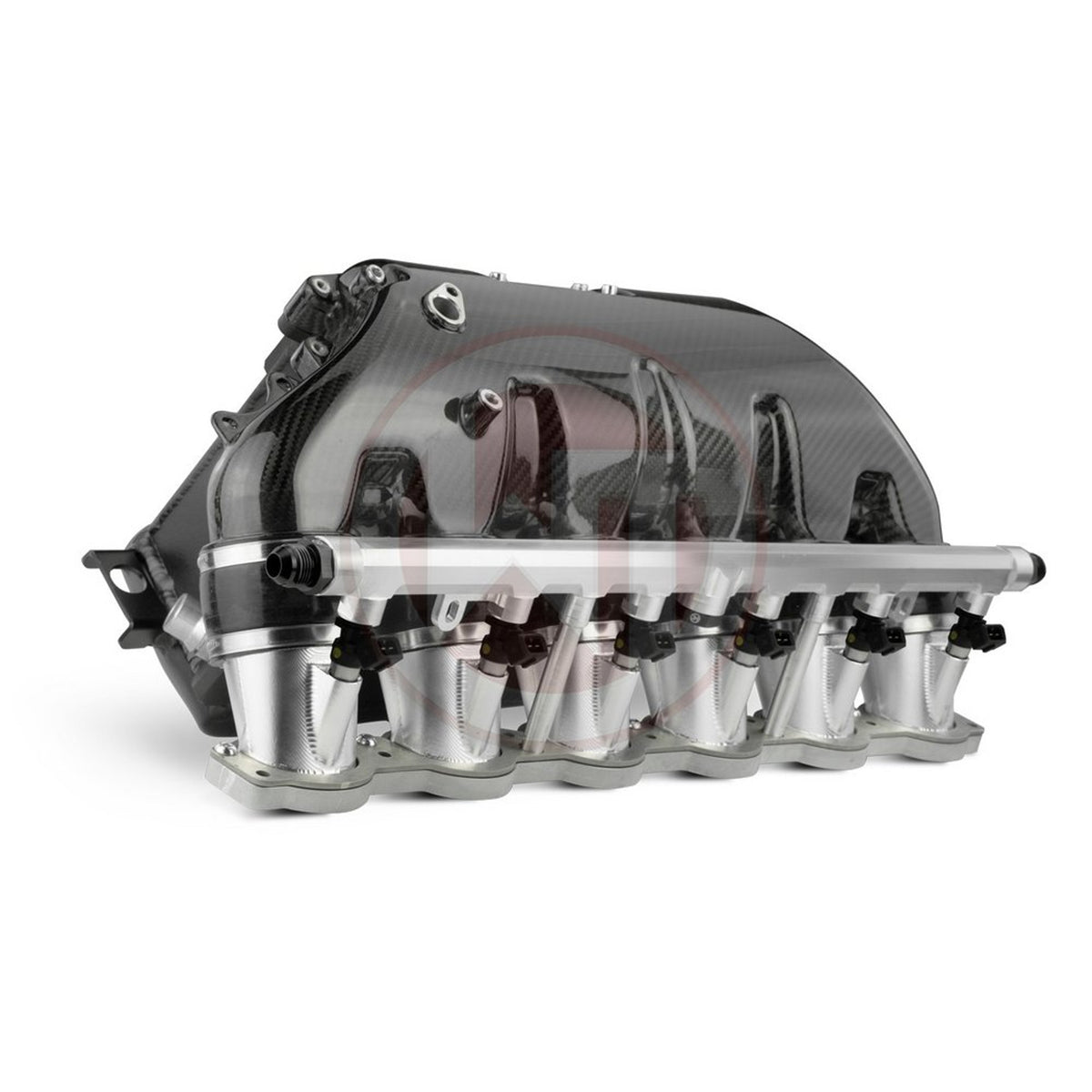

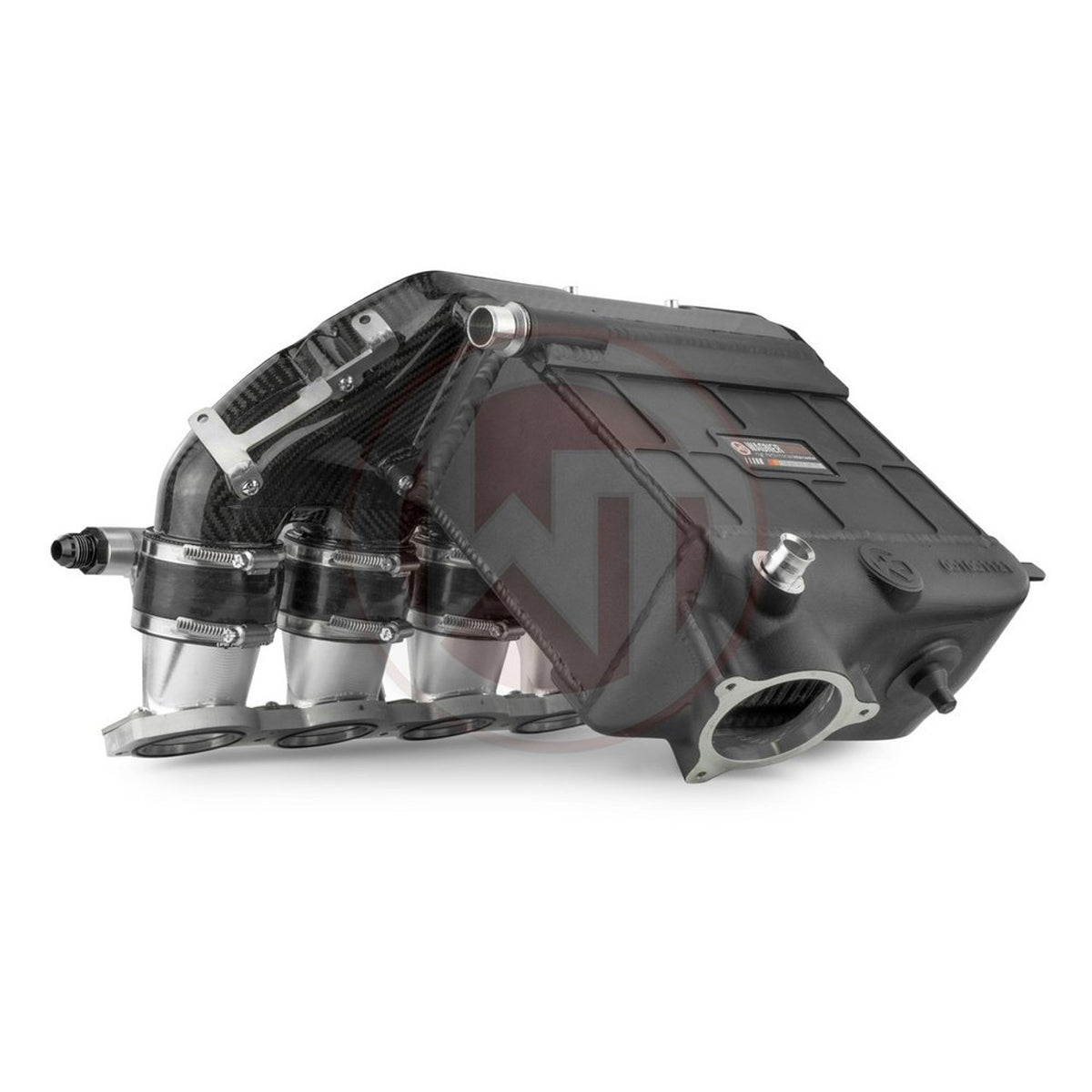

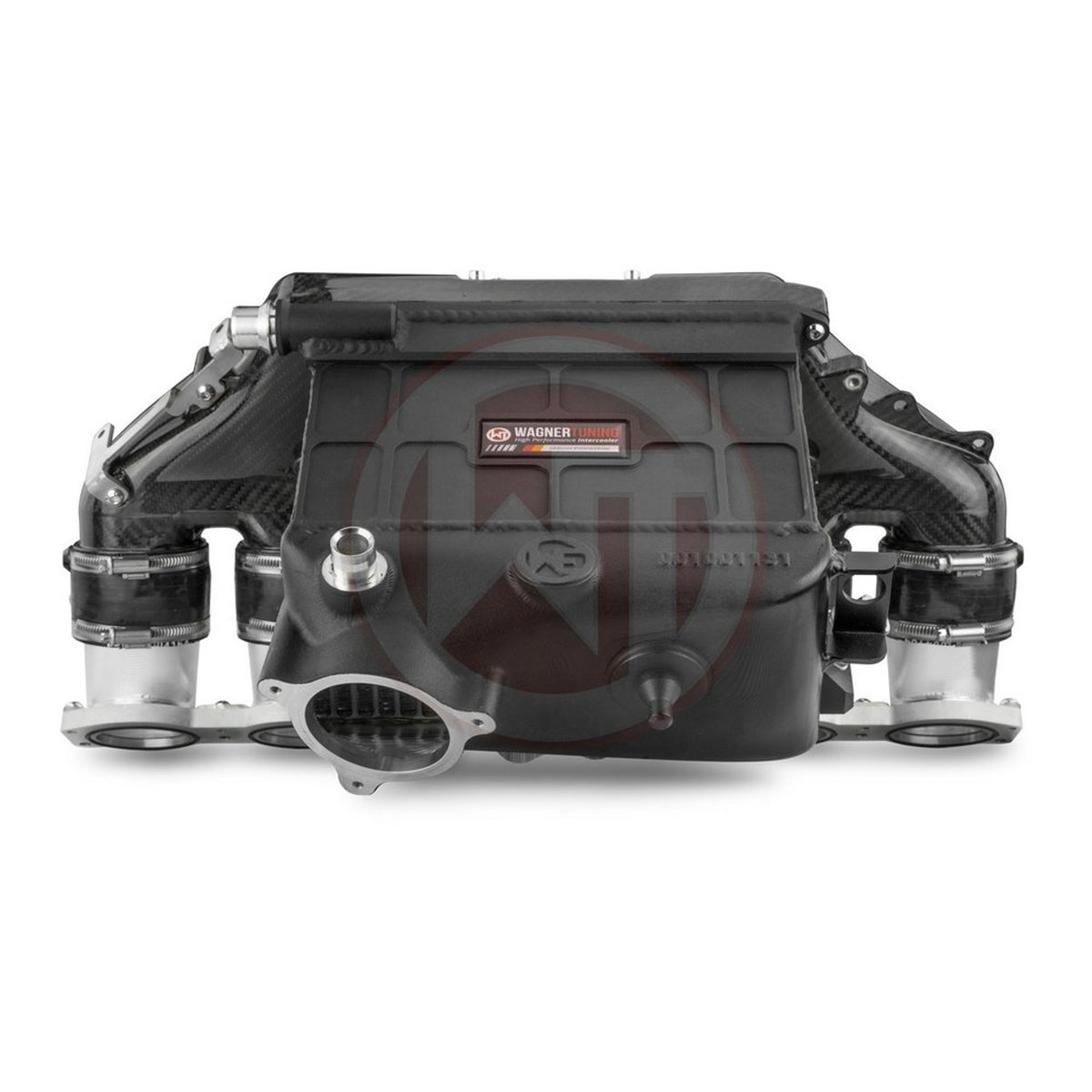

Wagner Tuning Hybrid Carbon Intake Manifold w/ Intercooler – BMW M3 / M4 (S58 G8x)

OVERVIEW

The WAGNERTUNING Hybrid-Carbon intake manifold with integrated intercooler is a high-performance upgrade for BMW M models running the S58 engine. It combines carbon with other materials for strength at reduced weight, and integrates a water-cooled intercooler directly into the manifold so charge air is cooled as close to the intake ports as possible.

The competition core inside the manifold was developed for the S58's demands and carries 50% more external core volume than the stock intercooler. CFD simulations were used to shape the CNC-milled end tanks, improving airflow and cutting back pressure, and the result is intake air temperatures up to 20 °C cooler with less heat soak during aggressive driving. Better cooling and airflow translate into more power and torque, and the assembly is robust enough for motorsport use.

The manifold carries a heat-conductive anti-corrosion coating for long service life, is built to handle high pressure, and installs plug and play without modification. It also includes preprocessed ports for additional fuel injection and 1/8 NPT ports for extra measurement.

SPECS

• Construction: hybrid carbon intake manifold with integrated water-cooled intercooler
• Core volume: 50% greater than the stock intercooler
• Intake air temperature: up to 20 °C cooler than stock
• End tanks: CNC-milled, CFD-optimized
• Coating: heat-conductive anti-corrosion coating
• Fueling: preprocessed ports for additional fuel injection (fuel rail available separately)
• Measurement: 1/8 NPT ports for additional sensors
• Built for high pressure resistance
• Installation: plug and play, no modification required

PARTS INCLUDED

• 1 x Hybrid-Carbon intake manifold with integrated intercooler
• 1 x set of mounting hardware
• 1 x installation instructions
• 1 x combination approval certificate (Kombinationsgutachten)

TECH RESOURCES

Additional Parts Required

• None. Wagner Tuning specifies no additional hardware — the manifold installs plug and play using the supplied mounting material.
• Optional: a Wagner fuel rail is available separately if you intend to use the preprocessed ports for additional fuel injection.
• Wagner quotes an installation time of roughly 60 work units (about 300 minutes).

Installation

• Wagner Tuning 200001187 installation instructions (PDF)

Notes

• Wagner's installation instructions cover G80–G83, G87, F97 and F98 S58 applications, with model-specific notes for F9x and G8x cars. Confirm your chassis with Speed Logic before ordering.

PART NUMBER

• 200001187
