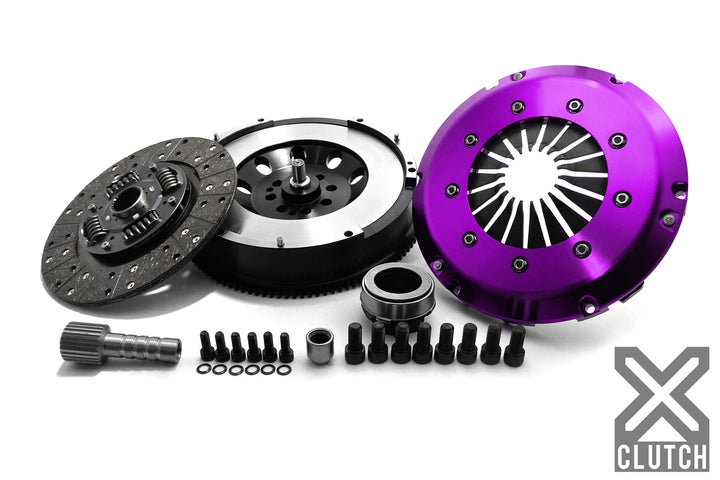

XClutch Stage 1 Organic Clutch & Flywheel (8-Bolt) – BMW 135i / 335i (N54/N55)

OVERVIEW

XClutch sprung organic kits offer excellent dampening and the highest levels of driveability in the XClutch range, which makes them the natural choice for a performance street car that still has to behave in traffic.

This Stage 1 kit is a complete single-disc clutch and flywheel package for the 8-bolt crankshaft N54, rated by XClutch for up to 440 ft-lb of torque with a 70 percent increase in clamping force over stock. Everything needed for the job is in the box, including the flywheel, release bearing, pilot bushing and alignment tool.

SPECS

• XClutch stage: Stage 1 — single sprung organic
• Torque capacity: up to 440 ft-lb
• Clamping force increase: 70 percent over stock
• Disc material: organic
• Disc type: sprung hub
• Disc count: single
• Clutch disc diameter: 9.449 in
• Input spline quantity: 26
• Input shaft diameter: 1.375 in
• Pressure plate: lightweight alloy
• Flywheel: performance flywheel included
• Crankshaft: 8-bolt
• Recommended use: street use

PARTS INCLUDED

• Lightweight alloy pressure plate
• Sprung organic friction disc
• Performance flywheel
• Flywheel and pressure plate bolts
• Release bearing
• Pilot bushing
• Clutch alignment tool
• Spline grease

TECH RESOURCES

Additional Parts Required

• None. XClutch supplies the flywheel, release bearing, pilot bushing, bolts, alignment tool and spline grease in the kit — no separate flywheel or bearing purchase is needed.
• Break-in is required. XClutch specifies driving the vehicle gently for the first 1,000 km (roughly 620 miles), avoiding aggressive launches; low-rpm engagements bed the friction material in properly.
• XClutch recommends inspecting the concentric slave cylinder while the transmission is out and replacing it if worn, since the labor is already committed.
• Professional installation; transmission removal is required.

Installation

• XClutch Technical Service Bulletin TSB-214 (PDF)
• XClutch Technical Service Bulletin TSB-226 (PDF)
• XClutch Technical Service Bulletin TSB-SMF02 — single mass flywheel (PDF)

Notes

• This part number is for cars with the 8-bolt crankshaft — approximately up to January 2009 build dates. Confirm whether your engine has a 6-bolt or 8-bolt crank before ordering.

PART NUMBER

• XKBM24565-1A
