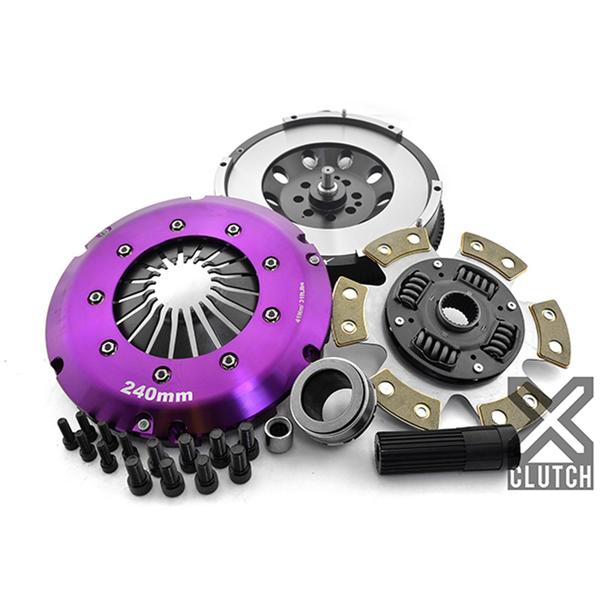

XClutch Stage 2 Ceramic Race Clutch & Flywheel (8-Bolt) – BMW 135i / 335i (N54/N55)

OVERVIEW

The Stage 2R ceramic kit is a single-disc, race-only clutch. Available for a wide variety of vehicles, the Stage 2R provides higher torque and heat capacity than the equivalent Stage 2 kits.

This version is built for the 8-bolt crankshaft N54 and is supplied as a complete package with a chromoly performance flywheel, release bearing, pilot bushing and alignment tool. XClutch rates it at up to 670 ft-lb of torque.

SPECS

• XClutch stage: Stage 2R — single ceramic, race
• Torque capacity: up to 670 ft-lb
• Disc material: ceramic
• Disc type: sprung hub
• Disc count: single
• Clutch disc diameter: 9.449 in
• Input spline quantity: 26
• Input shaft diameter: 1.375 in
• Pressure plate: lightweight alloy
• Flywheel: chromoly performance flywheel included
• Crankshaft: 8-bolt
• Recommended use: track use

PARTS INCLUDED

• Lightweight alloy pressure plate
• Ceramic friction disc
• Chromoly performance flywheel
• Flywheel and pressure plate bolts
• Release bearing
• Pilot bushing
• Clutch alignment tool
• Spline grease

TECH RESOURCES

Additional Parts Required

• None. XClutch supplies the chromoly flywheel, release bearing, pilot bushing, bolts, alignment tool and spline grease in the kit.
• Break-in is required. XClutch specifies driving the vehicle gently for the first 1,000 km (roughly 620 miles), avoiding aggressive launches; low-rpm engagements bed the friction material in properly.
• XClutch recommends inspecting the concentric slave cylinder while the transmission is out and replacing it if worn, since the labor is already committed.
• Professional installation; transmission removal is required. This is a race-only clutch and will feel harsher than a street disc.

Installation

• XClutch Technical Service Bulletin TSB-214 (PDF)
• XClutch Technical Service Bulletin TSB-226 (PDF)
• XClutch Technical Service Bulletin TSB-SMF02 — single mass flywheel (PDF)

Notes

• XClutch lists this part number for N54 135i and 335i models with the 8-bolt crankshaft, approximately up to January 2009 build dates. Confirm whether your engine has a 6-bolt or 8-bolt crank, and confirm exact fitment with Speed Logic, before ordering.

PART NUMBER

• XKBM24565-1R
