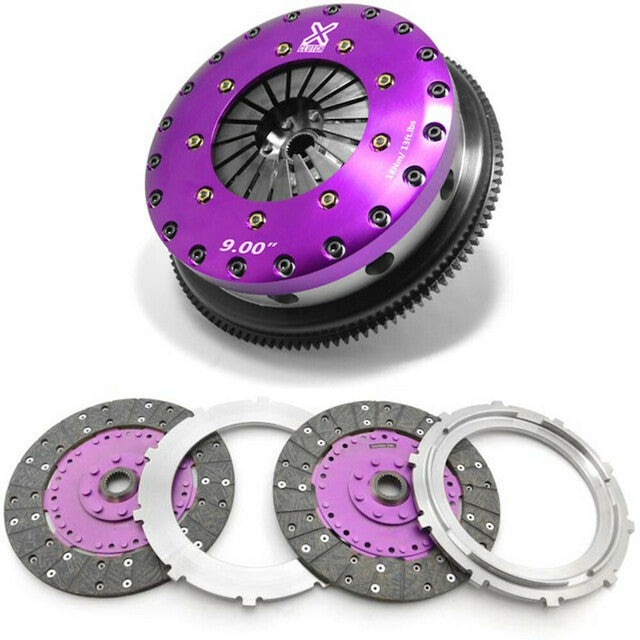

XClutch Twin Disc Clutch Kit (8-Bolt) – BMW 135i / 335i

OVERVIEW

This 9 inch XClutch twin-disc kit for the 8-bolt crankshaft N54 is offered in two friction materials. The Stage 4 rigid organic version is designed specifically for high-horsepower street-driven cars: the twin organic discs optimize pedal feel and reliability where a single disc would be marginal. The Stage 5 rigid ceramic version is built for high-horsepower motorsport applications where a high heat and torque capacity is required.

Both versions are supplied complete with a chromoly performance flywheel, release bearing, pilot bushing and alignment tool. Choose the disc material at checkout.

SPECS

• Stage 4 — 9 in twin rigid organic (XKBM23595-2G): torque capacity up to 890 ft-lb; recommended for performance street use
• Stage 5 — 9 in twin rigid ceramic (XKBM23595-2E): torque capacity up to 1,350 ft-lb; recommended for track use
• Disc count: twin
• Disc type: solid (rigid) hub
• Clutch disc diameter: 9.055 in
• Input spline quantity: 26
• Input shaft diameter: 1.375 in
• Pressure plate: lightweight alloy
• Flywheel: chromoly performance flywheel included
• Crankshaft: 8-bolt

PARTS INCLUDED

• Lightweight alloy pressure plate
• 2 x rigid friction discs (organic or ceramic, per the option selected)
• Chromoly performance flywheel
• Flywheel and pressure plate bolts
• Release bearing
• Pilot bushing
• Clutch alignment tool
• Spline grease

TECH RESOURCES

Additional Parts Required

• None. XClutch supplies the chromoly flywheel, release bearing, pilot bushing, bolts, alignment tool and spline grease in the kit.
• Break-in is required. XClutch specifies driving the vehicle gently for the first 1,000 km (roughly 620 miles), avoiding aggressive launches; low-rpm engagements bed the friction material in properly.
• XClutch recommends inspecting the concentric slave cylinder while the transmission is out and replacing it if worn, since the labor is already committed.
• Professional installation; transmission removal is required. Rigid-hub twin-disc clutches transmit more drivetrain noise than a sprung street disc.

Installation

• XClutch Technical Service Bulletin TSB-166 (PDF)
• XClutch Technical Service Bulletin TSB-214 (PDF)

Notes

• XClutch lists this part number for N54 135i and 335i models with the 8-bolt crankshaft, approximately up to January 2009 build dates. XClutch also produces a twin carbon-blade disc version of this kit for motorsport use — contact Speed Logic if you need it. Confirm your crank bolt count and exact fitment before ordering.

PART NUMBER

• XKBM23595-2G — Stage 4, 9 in twin rigid organic discs
• XKBM23595-2E — Stage 5, 9 in twin rigid ceramic discs
