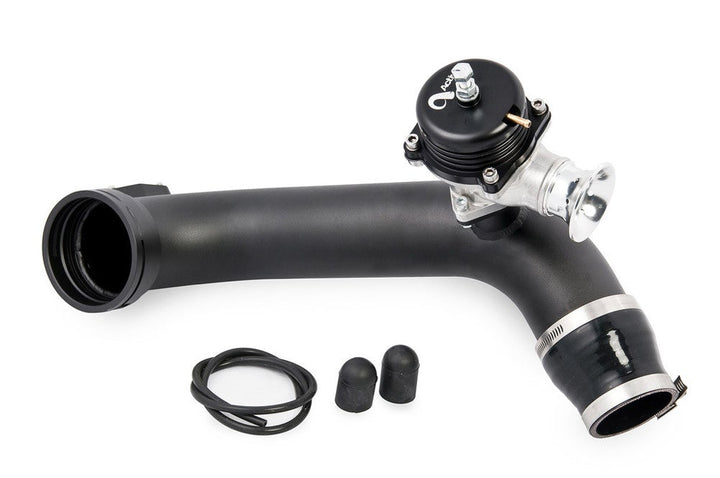

Active Autowerke Charge Pipe & Blow-Off Valve Kit – BMW 135i / 335i (N54)

OVERVIEW

The Active Autowerke BOV kit replaces the two small plastic diverter valves on the N54 with a single high-efficiency blow-off valve mounted to an aluminum charge pipe with a large venturi, built to handle the pressure that builds against the turbo compressor blades when the throttle closes — compressor surge, which can damage the compressor wheel and shaft. With the Active Autowerke BOV in place the stock turbos stay protected as boost is raised and excess inlet pressure is released with an audible whoosh. All hardware and fittings carry a factory-quality look, are built to perform under aggressive boost, and Active Autowerke rates the kit to handle 600+ horsepower.

SPECS

• High-efficiency single displacement blow-off valve replaces the two smaller plastic factory valves
• Large valve opening sized to handle maximum boost and provide high flow
• Proven and tested to handle 600+ HP
• All-aluminum venturi design with factory-style throttle clamp
• CNC machined flange
• Durable black wrinkle powder-coated finish

PARTS INCLUDED

• BOV charge pipe
• Blow-off valve with horn
• 2 x 6 x 25 mm Allen bolts and 2 x 6 mm nuts
• Flange gasket
• 3 in to 2-1/2 in reducer with #48 and #40 clamps
• 2 x one-inch rubber plugs with tie straps
• 3 ft of 3 mm vacuum line
• 2 x 4 x 16 mm bolts with washers
• Illustrated instruction manual and installation guide

TECH RESOURCES

Additional Parts Required

• None. Active Autowerke specifies no additional hardware for this kit; it is a plug-and-play installation using the supplied fittings.
• Optional: a flash tune is a recommended pairing for higher boost levels, but is not required for the BOV kit to function — see the MHD Super License for N54, which also needs the MHD Universal WiFi Adapter to flash.
• Installer supplies basic hand tools; no cutting or welding is required.

Installation

• Active Autowerke N54 BOV kit and charge pipe installation instructions (PDF)

Notes

• Active Autowerke warning: when flashing your ECU, connect a battery charger to the car so voltage stays stable regardless of battery condition, and disable any sleep options on your laptop. Fitment applies to US-model cars unless stated otherwise; confirm fitment with Speed Logic before ordering.

PART NUMBER

• AA-BOVKIT-N54 — Active Autowerke BOV kit with charge pipe, N54
• Speed Logic catalog SKU: 15-002
