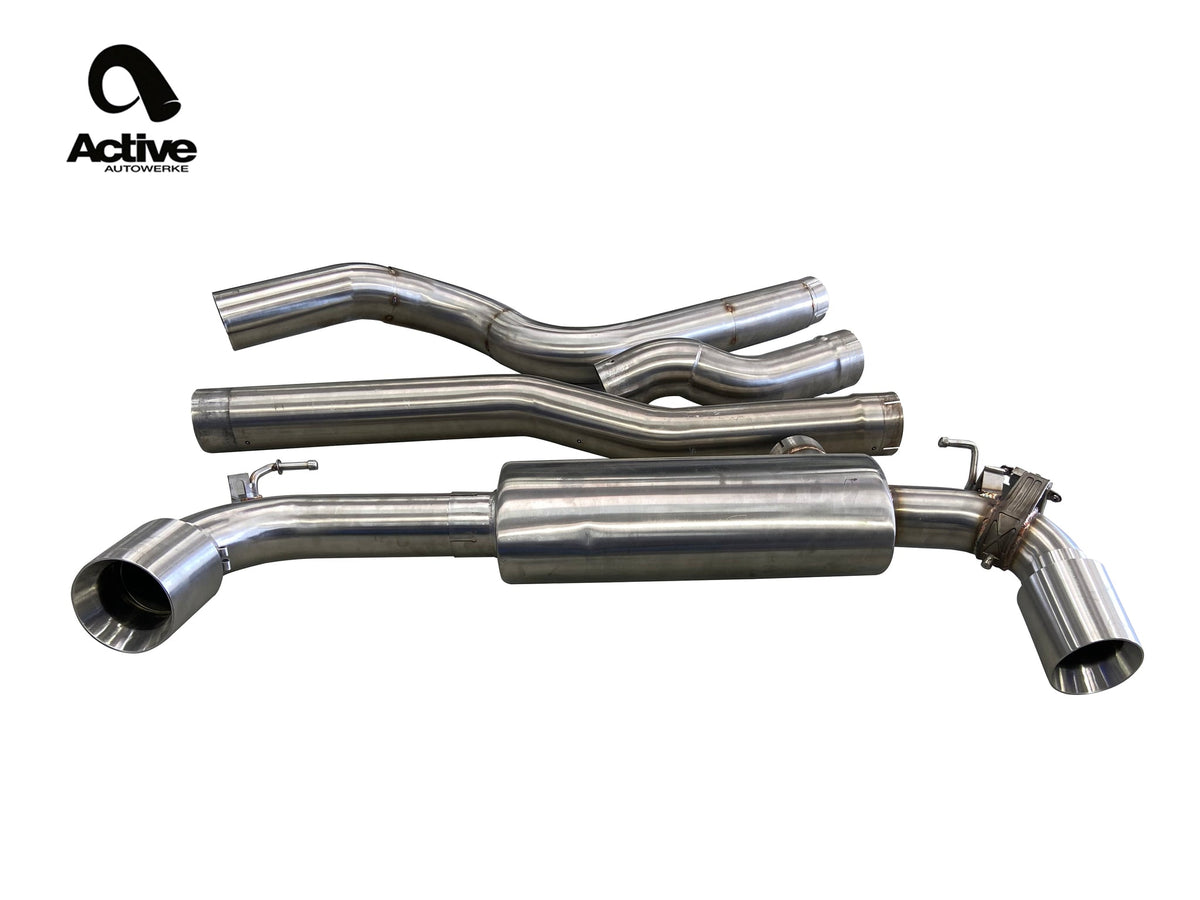

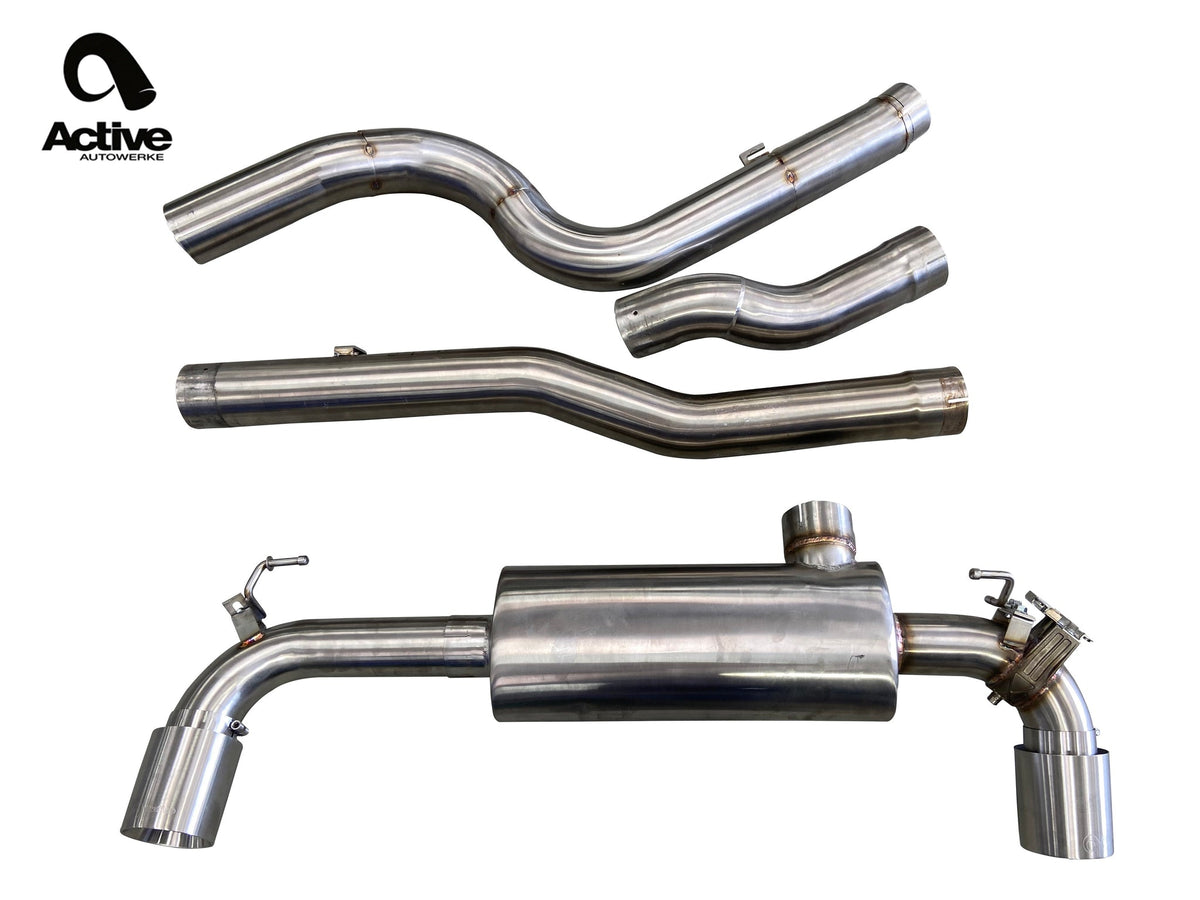

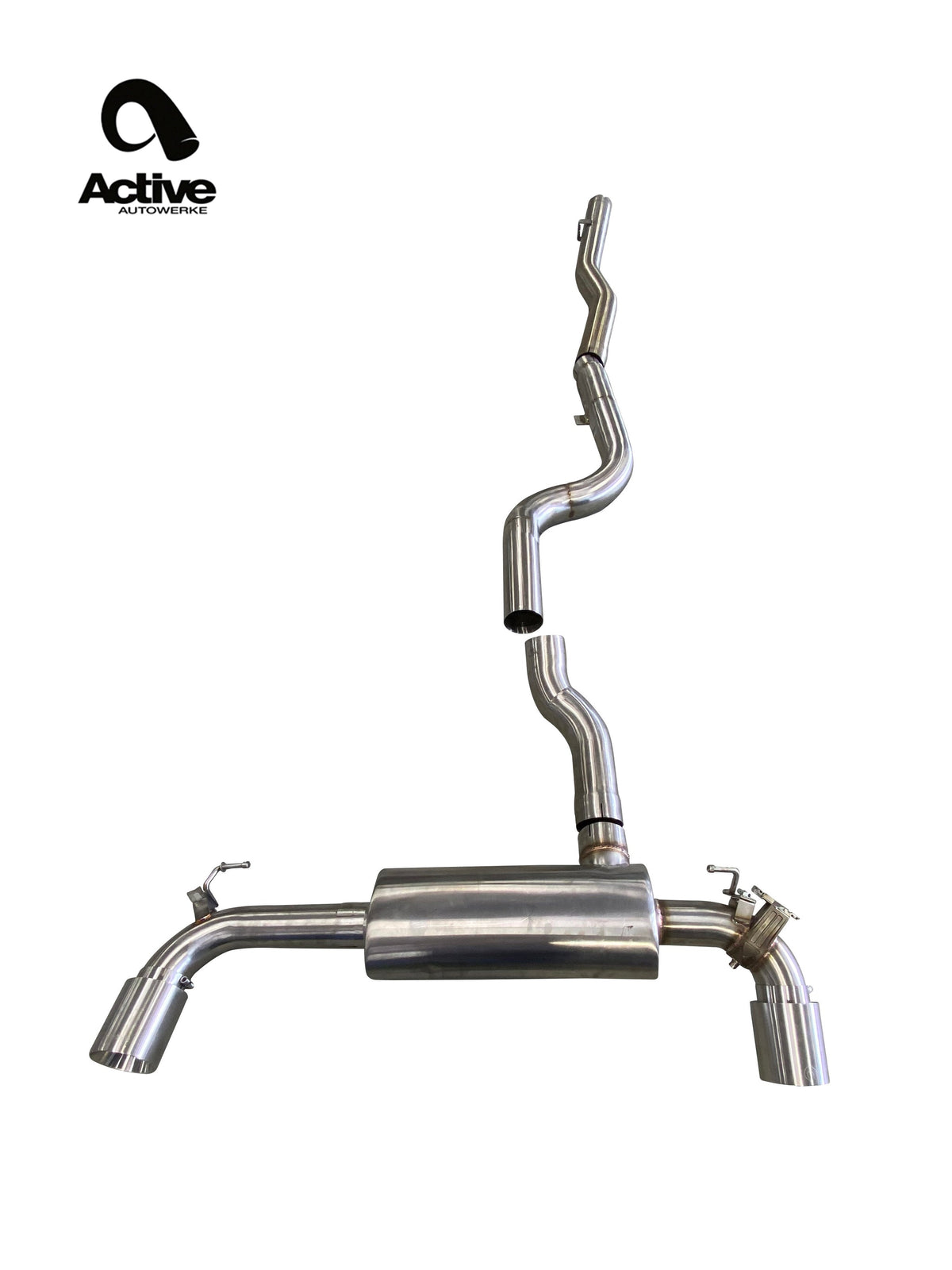

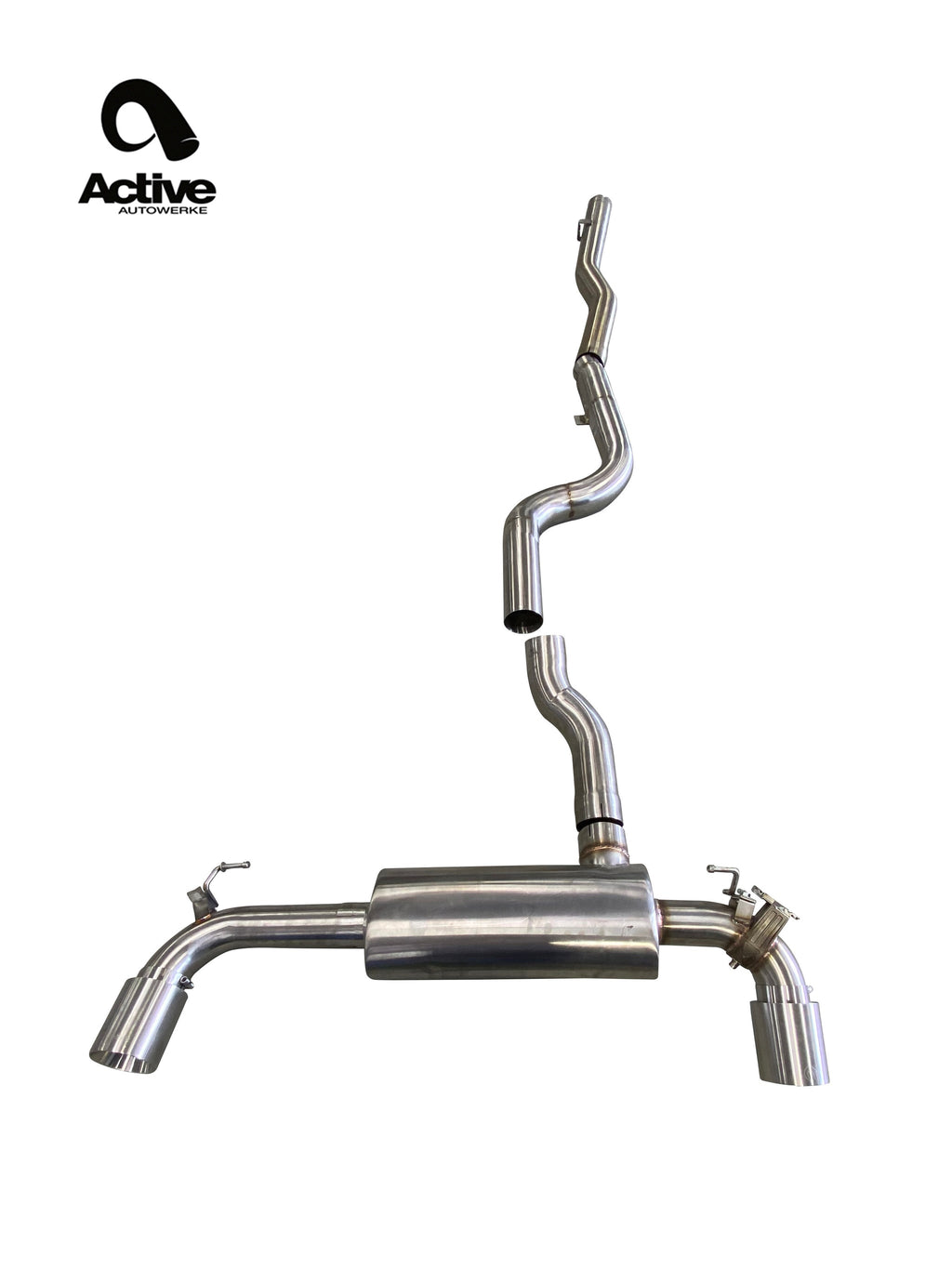

Active Autowerke Performance Rear Exhaust – Toyota GR Supra 3.0 (A90 / A91)

OVERVIEW

This Active Autowerke system is constructed from 100% brushed 304 stainless steel and finished with adjustable 100mm Active Autowerke double-walled tips in brushed, matte black or carbon fiber — the choice of finish is yours. To provide the maximum benefit from an exhaust system, Active Autowerke built it as a complete downpipe-back system, so it couples perfectly to the Active Autowerke GESi catted Supra downpipe, which delivers the benefits of a catless downpipe without any check engine light. The single 3-1/2 inch midpipe improves flow over the factory exhaust while giving the car a deeper, more aggressive sound, and a single valve setup similar to production reuses the production valve actuator.

SPECS

• Large 3-1/2 inch midpipe for maximum flow
• Brushed 100% 304 stainless steel construction
• Double-walled 100mm Signature tips with embossed Active Autowerke logo, in brushed, matte black or carbon fiber stainless
• Adjustable tips
• Gains of 12-15 HP over stock configuration
• Improved power and torque throughout the entire RPM band
• Single valve setup similar to production; reuses the production valve actuator
• Tight seal through TORCA-style exhaust clamps
• Height-adjustable mounting brackets for easier installation

PARTS INCLUDED

• Single 3-1/2 inch midpipe
• Rear muffler section with double-walled 100mm tips in the selected finish
• TORCA-style exhaust clamps
• Height-adjustable mounting brackets

TECH RESOURCES

Additional Parts Required

• None. Active Autowerke specifies no additional hardware for this part — the clamps and adjustable mounting brackets are supplied and the production valve actuator is reused.
• Optional: Active Autowerke High Flow GESi Catted Downpipe for the 3.0L B58 Supra A90/A91 (11-564) — the downpipe this system was designed to couple to.
• Installer-supplied: standard metric hand tools, a vehicle lift or jack stands, and penetrating oil for the factory exhaust fasteners.

Installation

• Active Autowerke — Installation Manual: Toyota Supra Mid-Pipe and Rear Exhaust (PDF)

Notes

• Confirm fitment with Speed Logic before ordering.

PART NUMBER

• 11-565 — 100mm brushed stainless tips
• 11-565B — 100mm black stainless tips
• 11-565C — 100mm carbon fiber stainless tips

VEHICLE APPLICATIONS
