AMS Performance Toyota GR Supra 3" Aluminum Charge Pipe

OVERVIEW

The AMS Performance 3" charge pipe is a direct replacement for the Toyota GR Supra's thin plastic factory charge pipe, removing a common failure point under high boost. Mandrel-bent 3" aluminum tubing eliminates the restrictive indentations of the OEM pipe, improving cross-sectional area by about 30% on average and up to 52% at the tightest points.

CNC-machined adapters give a smooth transition out of the turbo and into the throttle body, the bead-rolled ends seal at high boost, and the pipe is sized to support a larger aftermarket turbo later (2.5" or 3" compressor outlet, with an additional 3" coupler for the latter).

SPECS

• 3" mandrel-bent aluminum, powder-coated matte black
• Up to 52% more cross-sectional area than OEM (approx. 30% average)
• Dual 1/8" NPT ports for methanol or nitrous injection
• Bead-rolled ends for high-boost sealing
• CNC-machined, black-anodized throttle body and compressor outlet adapters
• Direct bolt-in; all hardware included
• Weight: 5 lbs

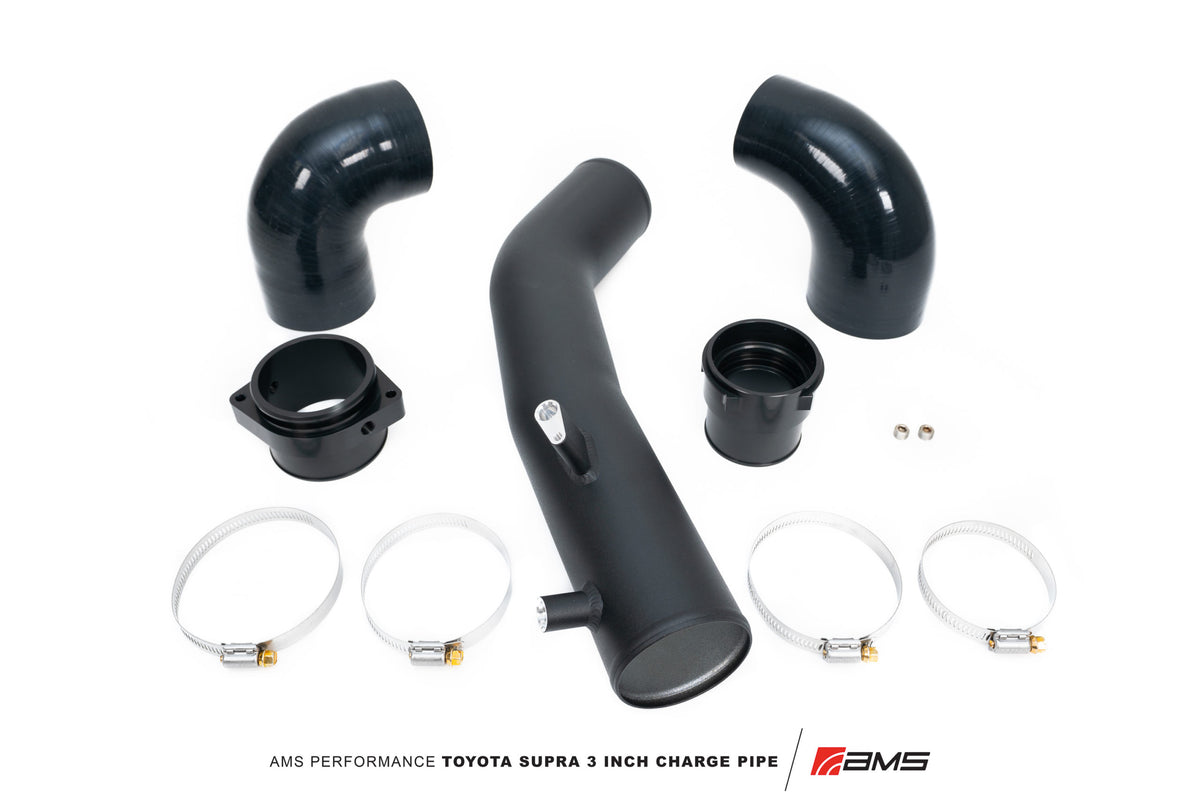

PARTS INCLUDED

• 3" aluminum charge pipe, powder-coated black
• 4-ply silicone couplers
• CNC-machined throttle body adapter (black anodized)
• CNC-machined compressor outlet adapter (black anodized)
• Clamps and associated hardware

TECH RESOURCES

Additional Parts Required

• None. AMS Performance includes all necessary hardware.

Installation

• AMS Performance Toyota GR Supra 3" Charge Pipe Install Instructions (PDF)

Notes

• Compatibility: Designed around the factory airbox and the AMS Performance GR Supra Carbon Fiber Cold Air Intake.
• Emissions: AMS Performance has not completed CARB/EPA compliance testing for this part. Not legal for emissions-controlled vehicles in California without a completed AMS race waiver.

PART NUMBER

• AMS.38.09.0001-1
