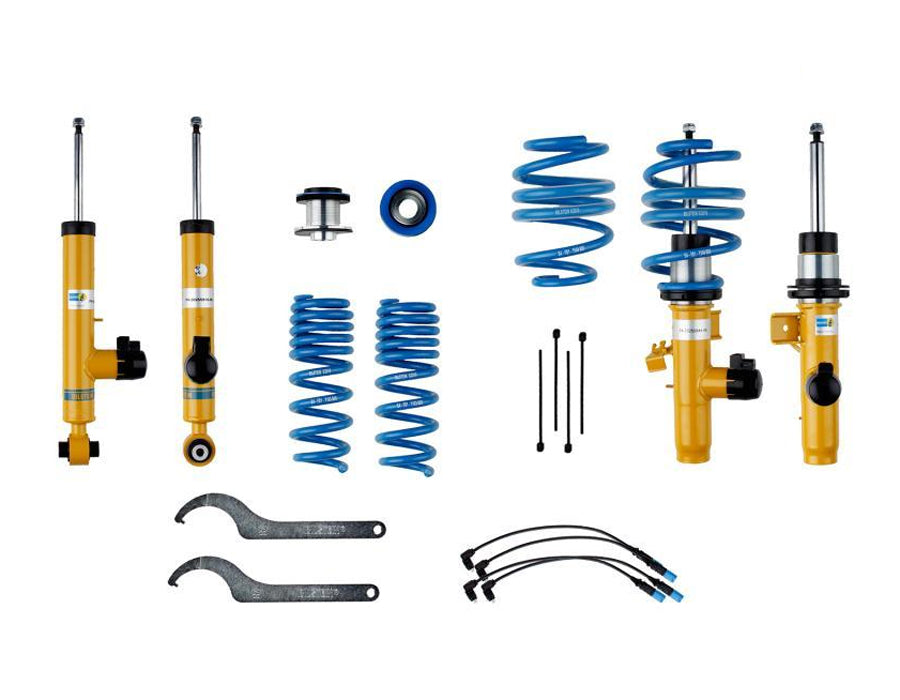

Bilstein B16 DampTronic Coilover Kit – BMW F22 / F23 / F30 / F32 / F33 / F36

OVERVIEW

The engineers at Bilstein created the ultimate race-inspired suspension: the B16 DampTronic. This kit delivers ride-height adjustability with dampers that are compatible with the OE electronic damping system, so all of the active features of the factory electronic suspension — along with the factory controls — are retained after installation.

The threaded damper bodies allow accurate adjustment of the front and rear progressive-rate springs, so you can set vehicle ride height, center of gravity and handling balance exactly where you want them. The B16 system puts you in complete control, providing the kind of precise suspension tuning formerly available only on race cars — from a weekend of competition to daily driving.

This kit fits rear-wheel-drive F22/F23 (228i, 230i, M235i, M240i), F30 (320i, 328d, 328i, 330i, 335i, 340i, ActiveHybrid 3) and F32/F33/F36 (428i, 430i, 435i, 440i) models fitted with factory electronic suspension (EDC / Adaptive M Suspension).

SPECS

• Bilstein B16 (DampTronic) coilover suspension kit
• Dampers compatible with the OE electronic damping system; factory adaptive functions and controls are retained
• Twin-tube damper design
• Threaded shock bodies with a 20 mm ride-height adjustment range at both axles
• Lowering range of approximately 30–50 mm at the front and rear
• Front main spring rate: 330 lbs/in (progressive)
• Rear main spring rate: 566 lbs/in (progressive)
• No tender springs used
• Finish: yellow dampers with blue springs
• Spring plates and lock nuts made from a special aluminum alloy
• Triple-C-Technology surface coating for long-lasting corrosion resistance
• Road-tested and fine-tuned by Bilstein ride engineers under extreme motorsport conditions
• Made in Germany
• Bilstein Limited 5-Year Warranty
• Position: front and rear — one kit per vehicle

PARTS INCLUDED

• Complete front and rear Bilstein B16 (DampTronic) coilover kit as supplied by Bilstein; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Factory electronic suspension (EDC / Adaptive M Suspension) is required. This kit is only for cars originally equipped with the OE electronic damping system — cars without it need a conventional kit such as the Bilstein B14 (PSS) Coilover Kit or the Bilstein B16 (PSS10) Coilover Kit.
• Recommended tool: Bilstein spanner wrench set E4-XS1-Z001A00 for setting ride height on the threaded damper bodies.
• A four-wheel alignment is mandatory after installation — changing ride height alters camber, caster and toe.
• Professional installation is strongly recommended. Spring compressors and BMW strut tooling are required, and the front strut assemblies are under spring load.
• The damper control cables must be routed and connected as shown in the installation instructions; the ride-height sensors must be checked and re-set after installation.
• Re-check ride height and re-torque the fasteners after the springs have settled, then re-align the car if the height is changed again later.

Installation

• Bilstein B16 DampTronic (E4-WM4-Y751A00) installation instructions and parts certificate (PDF)
• Bilstein shock absorber installation safety notice (PDF)

Notes

• Rear-wheel-drive models with factory electronic suspension (EDC / Adaptive M Suspension) only; xDrive cars use a different Bilstein kit.

PART NUMBER

• Bilstein part number: 49-255935
• Interchange (previous revision): 49-207323
