Burger Motorsports BMS Oil Catch Can – BMW 2/3/4 Series (G42/G43/G20/G21/G28/G22/G23/G26, B46/B48)

OVERVIEW

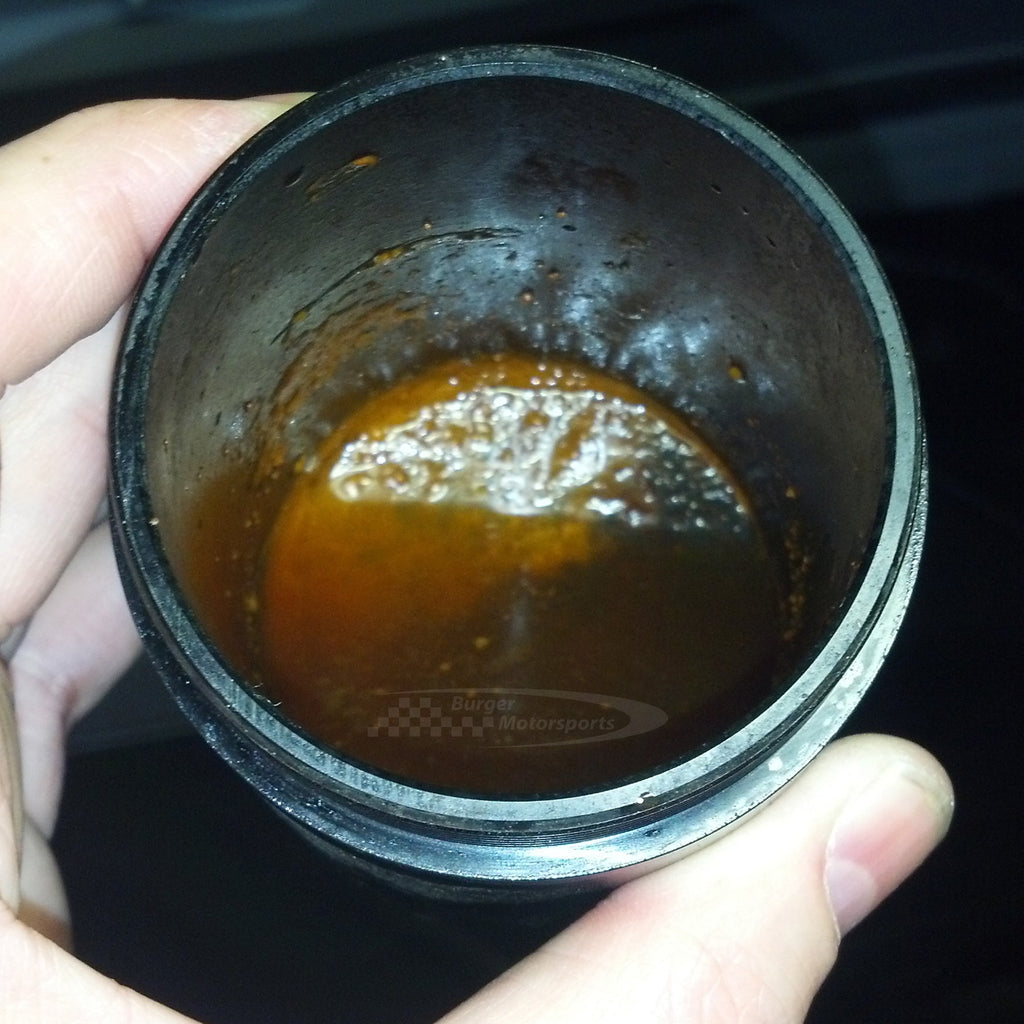

Every direct-injected turbo engine routes crankcase blow-by back into the intake, and on the G-chassis B46/B48 that vapor carries oil that ends up in the charge pipes, intercooler and on the intake valves. The BMS G-chassis oil catch can intercepts that mist inside the PCV circuit so the oil collects in the can rather than in your intake system.

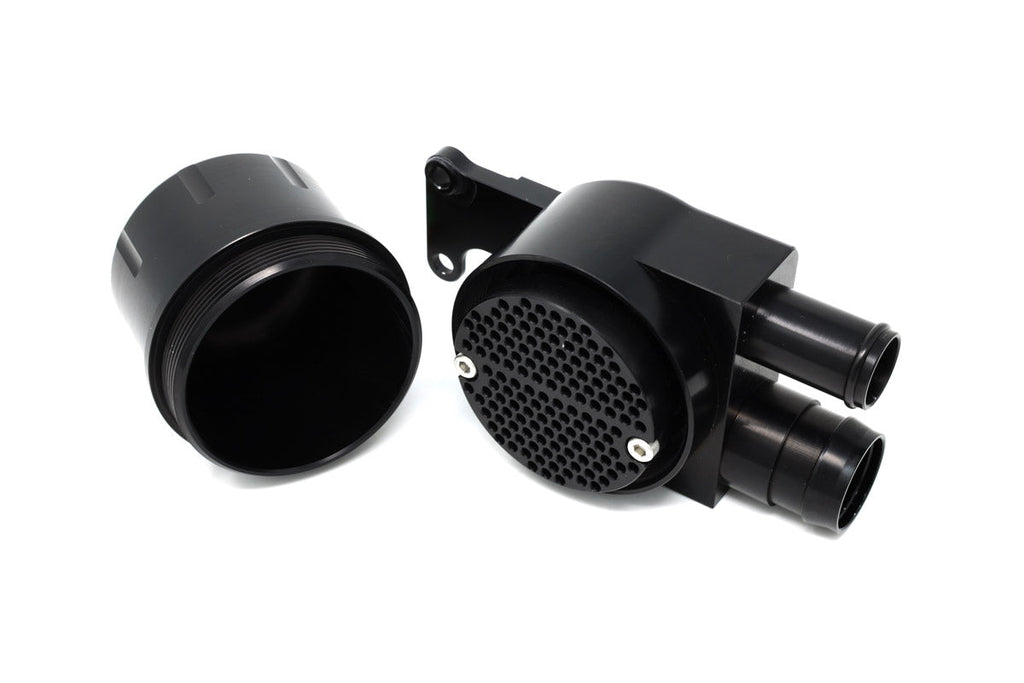

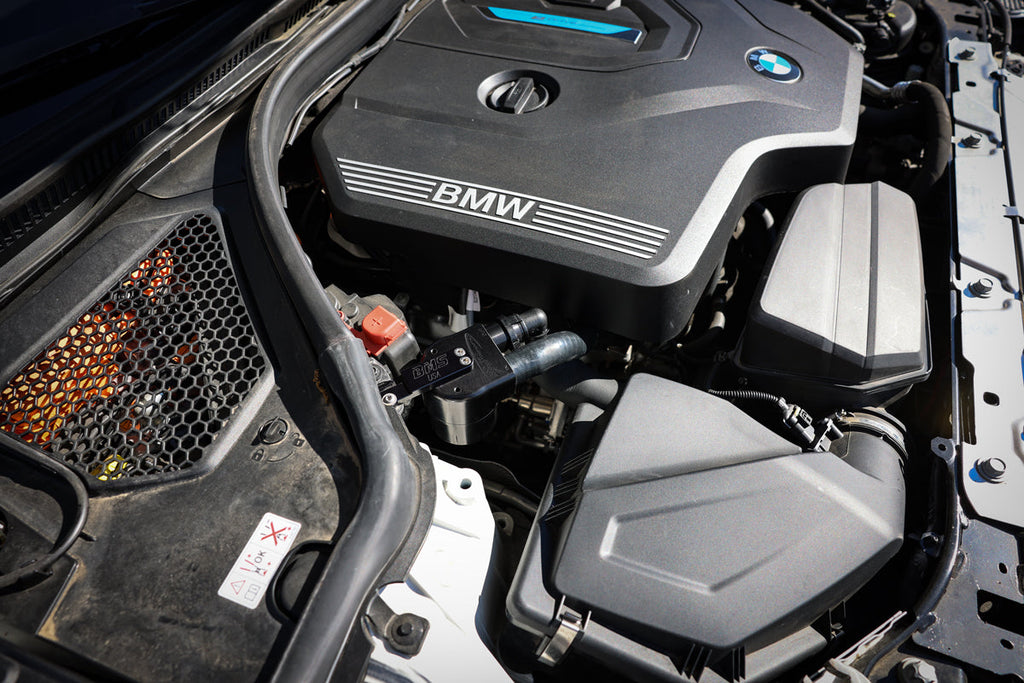

Machined from solid aluminum with a triple-baffle separator and 16 mm+ fittings that outflow the stock PCV line, the can keeps the factory closed-loop PCV path intact. It tucks into a discreet location using a billet bracket and a heavy-duty silicone hose, goes in in about 10 minutes, and can be removed without trace. Drain it by spinning off the base or through the 1/8" NPT plug. Choose the standard billet base or a transparent base so you can see the oil level at a glance.

SPECS

• Can height with lid: 4.4 in (111 mm)
• Can diameter: 2.5 in (63.7 mm)
• Lid length (back to nozzle end): 4 in (101 mm)
• Nozzle outer diameter: 0.75 in (19.2 mm)
• Nozzle inner diameter: 0.669 in (17 mm)
• Fluid capacity: up to 5.5 fl oz (162.6 mL)
• Inlet/outlet: 16 mm+ (larger than OEM PCV sizing)
• Drain: removable base or 1/8" NPT drain plug
• Material: CNC-machined aluminum, zero welds
• Retains factory closed-loop PCV system (no venting to atmosphere)
• Made in the USA; lifetime guarantee on the can
• Shipping weight: 3.5 lb (1588 g)
• Finish: black anodized
• Install time: approx. 10 minutes, fully reversible
• Can base options: billet aluminum with 1/8" NPT bung, or transparent

PARTS INCLUDED

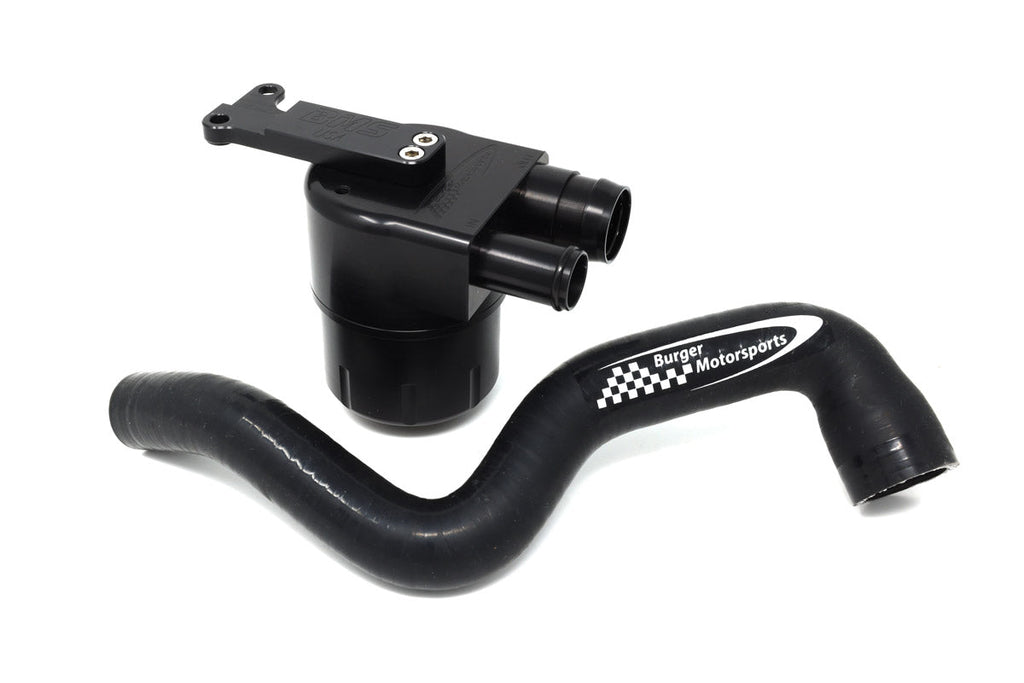

• (1) BMS G2x B48 oil catch can
• (1) Billet B58/Supra-style mounting bracket
• (1) G2x B48 heavy-duty silicone catch can hose
• (2) Bracket-to-can screws, M5 x 0.8 x 12 mm internal hex

TECH RESOURCES

Additional Parts Required

• No additional parts required; all mounting hardware and the hose are included
• Optional: Transparent can base is available as a variant on this listing (not recommended where temperatures regularly reach 32°F / 0°C or below)

Installation

• BMS G-Chassis B46/B48 Oil Catch Can Installation Instructions (PDF)

VEHICLE APPLICATIONS

B46/B48 G-chassis only. Some listed trims (e.g. 220i, 320i, 420i, G28) were not sold in all markets.
