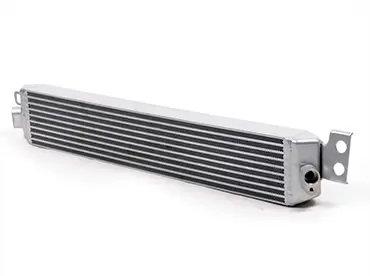

CSF Cast-Endtank Race-Spec Engine Oil Cooler – BMW M3 (E9x)

OVERVIEW

Developed in collaboration with supercharger system manufacturer VF Engineering, CSF's race-spec engine oil cooler replaces the E9X M3's mechanically jointed, tack-welded factory unit with a fully TIG-welded cast-end-tank design built for durability under sustained track use.

The tapered cast end tanks follow the contour of the OEM bumper, so aftermarket splitters still attach correctly, and it is the only cooler on the market for this platform that requires no cutting of the shroud. Eight rows of turbulated heavy-duty bar/plate core with a high-density multi-louvered fin pitch deliver roughly a 25% gain in cooling efficiency, and every OEM attaching component — oil lines, mounting brackets, shroud and ducting — bolts straight back on.

SPECS

• Designed and developed in collaboration with VF Engineering
• Fully TIG-welded cast-end-tank design versus the OEM mechanically jointed and tack-welded design
• Tapered cast end tanks fit the contour of the OEM bumper with no issues attaching an aftermarket splitter
• Turbulated heavy-duty bar/plate core
• 8 rows of cooling with a high-density multi-louvered fin pitch design
• Approximately 25% increase in cooling efficiency over the OEM cooler
• The only cooler available for this platform that requires no cutting of the shroud
• Drop-in fit requiring no modifications — accepts all attaching OEM components including oil-line connections, mounting brackets and shroud/ducting
• Motorsport Silver finish
• Replaces OEM part number 17212284075
• 2-year warranty to the original purchaser under normal use

PARTS INCLUDED

• CSF cast-endtank race-spec engine oil cooler
• Complete kit as supplied by CSF Radiators; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• Late-style BMW oil cooler lines and O-rings — required on E9X M3s built up to 3/2008. BMW superseded the two oil lines for this cooler, and CSF #8025 was designed around the later-style lines. Early cars need engine oil cooler line, feed 17222284077; engine oil cooler line, return 17222284078; and O-ring 17222284079 (qty 2). Cars built after 3/2008 already have them.
• Otherwise none — CSF specifies no additional hardware; the cooler reuses the OEM brackets, shroud and ducting.

Installation

• CSF does not publish a downloadable installation PDF for this part. Printed installation instructions ship in the box.

Notes

• Check your build date before ordering — M3s built up to 3/2008 need the later-style oil cooler lines and O-rings listed under Additional Parts Required.

PART NUMBER

• 8025
