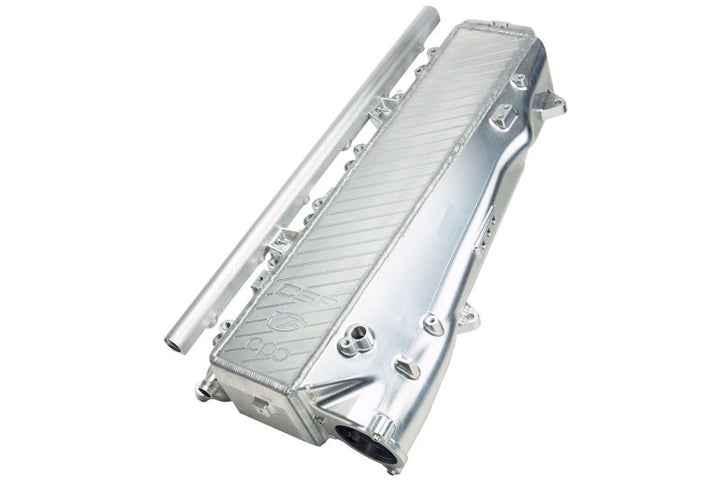

CSF Charge-Air Cooler Manifold – BMW M340i (G20) / Toyota GR Supra (B58)

OVERVIEW

CSF's "Super Manifold" replaces the factory B58 charge-air cooler manifold with a machined billet aluminum unit built around a motorsports-grade bar/plate air-to-water intercooler core carrying 12 rows of water cooling — double the OEM's six — with significantly lower pressure drop across the core.

It was designed in SolidWorks using computational fluid dynamics, with an integrated air divider in the counter-balanced inlet tank to distribute airflow evenly across all six runners. Independent dyno testing showed roughly a 30°F reduction in intake air temperatures versus OEM and about 26 whp on a Stage 2 car. The manifold is plug-and-play, ships with a 28-piece hardware and installation kit with picture diagrams, and leaves the spin-off oil filter accessible so it never has to come off for an oil change.

SPECS

• High-performance motorsports-grade bar/plate air-to-water intercooler core
• Double the capacity of the OEM core — 12 rows of water cooling versus OEM 6
• Significantly lower pressure drop across the core compared to OEM
• Approximately 30°F reduction in intake air temperatures versus OEM in independent dyno testing, worth roughly 26 whp on a 400 whp Stage 2 car
• Designed in SolidWorks using computational fluid dynamics (CFD)
• Integrated air divider in the inlet tank evenly distributes airflow throughout the core
• Counter-balanced inlet design for optimized airflow
• Easy access to the spin-off oil filter — no need to uninstall the manifold for oil changes
• Integrated sensor pad with three 1/8" NPT ports to measure additional parameters
• Included optional fuel rail for top-feed port injection with individual, pre-plugged port injection bungs on each cylinder runner
• Individual 1/8" NPT ports on the top of each cylinder runner for nitrous or methanol injection, for even spray distribution
• Individual 1/8" NPT breather ports for both inlet and outlet water connections on the back of the manifold for easy air bleeding
• Plug-and-play design requiring no modifications to install
• Can be used with OEM or aftermarket engine covers using OEM connections
• Finish: raw billet aluminum; thermal dispersion black (CSF #8200B) and custom finishes (CSF #8200C) available to order
• Machined by Custom Plenum Creations in Australia; TIG welded
• Pressure tested at 60–70 PSI during quality control; not designed to operate above 60 PSI
• Replaces OEM part numbers 11618647977 (BMW) and 17101-WAA01 (Toyota)
• 2-year limited warranty to the original purchaser under normal use

PARTS INCLUDED

• CSF billet aluminum charge-air cooler manifold
• Extruded fuel rail with Radium Engineering fittings for top-feed port injection
• 6 anodized CNC injector hats for short-height injectors
• 28-piece hardware kit with brackets and mounting posts
• Installation manual with picture diagrams, exploded views and bill of materials

TECH RESOURCES

Additional Parts Required

• None. CSF specifies a plug-and-play install requiring no modifications; the manifold ships with its own hardware and installation kit.
• 48V mild hybrid cars require an alternator modification.
• The factory engine cover cannot be used if the included port injection fuel rail is installed.
• Optional: port injection fuel system components, and nitrous or methanol plumbing for the runner ports.

Installation

• CSF does not publish a downloadable installation PDF for this part. The printed installation manual with exploded diagrams and bill of materials ships in the box.

Notes

• Intended for off-highway and motorsports use only. CARB and TÜV approvals are pending. CSF pressure tests each manifold at 60–70 PSI during quality control; it is not designed to operate above 60 PSI, and doing so voids the CSF limited 2-year warranty.
• Fitment above follows CSF's official application list for part 8200. Model years equipped with the B58 vary by region, and other B58 G-Series variants may also be covered — confirm with Speed Logic before ordering.

PART NUMBER

• 8200 — raw billet aluminum
• 8200B — thermal dispersion black finish, available to order
• 8200C — custom finish, available to order
