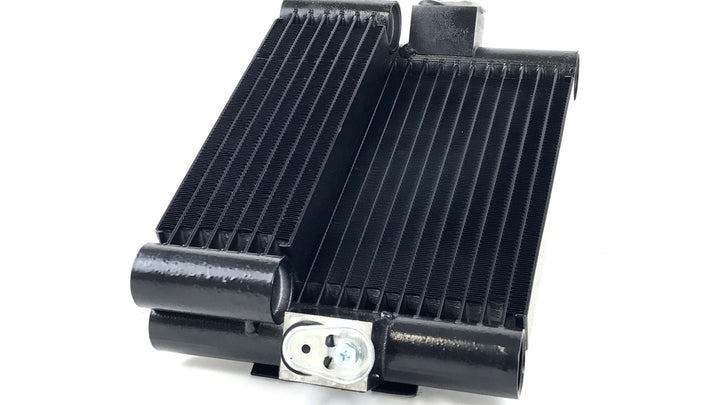

CSF Race-Spec Oil Cooler – BMW M2 (F87)

OVERVIEW

The CSF Race-Spec Oil Cooler is the world's first and only true plug-and-play upgraded engine oil cooler for the N55 engine in the BMW F87 M2. It uses an innovative 2-core in-series system: the front full-size core carries 17 cooling tubes against the OEM's 15, and a secondary backside cooler adds a further 6 rows of cooling in series.

Both cores are built with CSF's AC condenser technology, using a 1-row super-high-pressure 26mm multi-channel microtube and a high-density multi-louvered fin design for maximum surface area contact. CSF track tested the system in 103°F ambient conditions (115°F heat index) and recorded a maximum oil temperature of 240°F — down from the 275–280°F limp-mode territory the same car reached on the OEM cooler under identical testing.

Fitment is a true drop-in, accepting all attaching OEM components including the oil-line connections, mounting brackets and shroud/ducting.

SPECS

• Innovative 2-core in-series system
• Front full-size core with 17 cooling tubes vs. OEM 15
• Secondary in-series backside cooler adds 6 additional rows of cooling
• 1-row super-high-pressure 26mm multi-channel microtube built with CSF's AC condenser technology
• High-density multi-louvered fin design for maximum surface area contact
• Track tested in 103°F ambient (115°F heat index) — maximum oil temperature 240°F
• Reduction from 275–280°F track oil temperatures (limp mode) recorded with the OEM cooler under the same test
• System capacity approximately 7.5 quarts vs. 7 quarts with the OEM cooler
• "Drop-in fit" — accepts all attaching OEM components including oil-line connections, mounting brackets and shroud/ducting
• OEM cross-reference: BMW 17217853240 (also listed as 17217628056)
• 2-year limited warranty

PARTS INCLUDED

• CSF #8104 race-spec oil cooler — front full-size core and secondary in-series backside cooler
• Complete kit as supplied by CSF Radiators; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Approximately ½ quart of additional engine oil. The CSF system holds more oil than the factory cooler — fill to roughly 7.5 quarts versus the OEM 7 quarts. Supply the correct BMW-approved grade for your engine.
• No other additional hardware is required. CSF specifies a true drop-in fit using the OEM oil-line connections, mounting brackets and ducting.

Installation

• CSF does not publish a downloadable installation PDF for this part. Printed installation instructions are supplied in the box.
• Installation requires no modification to the vehicle; the cooler reuses the OEM oil-line connections, mounting brackets and shroud/ducting.
• Re-check the oil level after the system has been filled and run up to temperature to account for the increased capacity.

Notes

• CSF's current published application table for #8104 lists 2016–2018 F87 M2 (N55); the previous store copy said 2016+. This part is for the N55 M2 only — it does not fit the S55-powered M2 Competition or M2 CS. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• 8104 — CSF BMW F87 M2 (N55) Race-Spec Oil Cooler
