Dinan Adjustable Coil-Over Suspension – BMW M2 (G87) #D190-8220

OVERVIEW

Dinan's adjustable coilover system for the G87 M2 pairs performance springs, threaded adjustment collars, progressive bump stops and suspension packers with black anodized aluminum hardware, retaining the factory electronic damping so the car keeps its comfort/sport modes.

Spring rates run 29% stiffer up front and 13% softer in the rear versus stock, giving up to 1-1/8" of front and over 2" of rear lowering (or up to 1" front and over 2" rear of lift). Dinan's recommended drop is 3/4" front and rear.

SPECS

• Threaded-collar coilover system, retains factory Electronic Damper Control (EDC)
• Spring rates: 29% stiffer front, 13% softer rear vs. stock
• Adjustment range: up to 1-1/8" front / 2"+ rear lowering; up to 1" front / 2"+ rear lift
• Recommended drop: 3/4" front and rear
• Black anodized aluminum components
• Covered under Dinan's standard warranty program

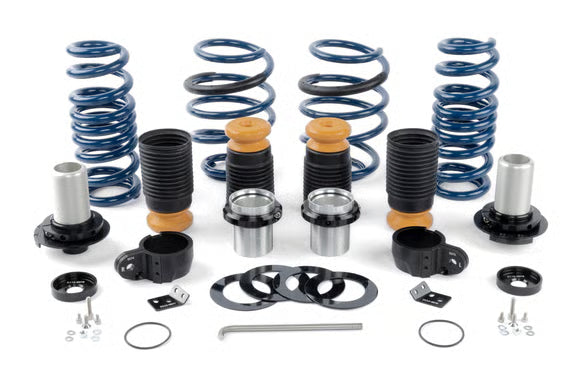

PARTS INCLUDED

• Front and rear performance springs
• Threaded adjustment collars
• Progressive bump stops and suspension packers
• Required mounting hardware

TECH RESOURCES

Additional Parts Required

• A four-wheel alignment is required after installation (service, sold separately). Dinan recommends a professional tire clearance check during install; estimated labor is about 9.2 hours.

Installation

• Dinan installation instructions – D190-8220 (G87 M2 coilovers)

Notes

• This part number was split out from a multi-SKU draft listing that bundled it with the G8x M3/M4 coilover, both anti-roll bar sets, and the tension strut ball joint kit as additional variants; each of those part numbers has its own individual Speed Logic listing, so this SKU has been given its own listing to match.

PART NUMBER

• D190-8220 — Dinan Adjustable Coil-Over Suspension, BMW M2 (G87)
