Dinan Free Flow Axle-Back Exhaust – BMW 230i (F22)

OVERVIEW

Dinan engineered this axle-back exhaust for the BMW 230i to improve exhaust flow by reducing back pressure, which increases power output and gives the car a sportier voice that stays civilized when you want it to be and turns pleasantly aggressive under hard acceleration. Like every Dinan exhaust, it is engineered to suppress low-RPM drone so the cabin stays intimate rather than drowned in an excessively loud tone.

The system is built with ease of fitting in mind and bolts on using the included mounting hardware. It is made from 100% 16-gauge 304 stainless steel and will resist corrosion for years. The design finishes with twin 3 in tips in ceramic black or polished, laser-engraved stainless, and yields a maximum gain of 4 horsepower and 3 lb-ft of torque. The factory computer-controlled exhaust valve is eliminated.

SPECS

• Maximum gain: +4 HP @ 6600 RPM and +3 lb-ft @ 6600 RPM
• 100% 16-gauge T304 stainless steel body and pipe construction

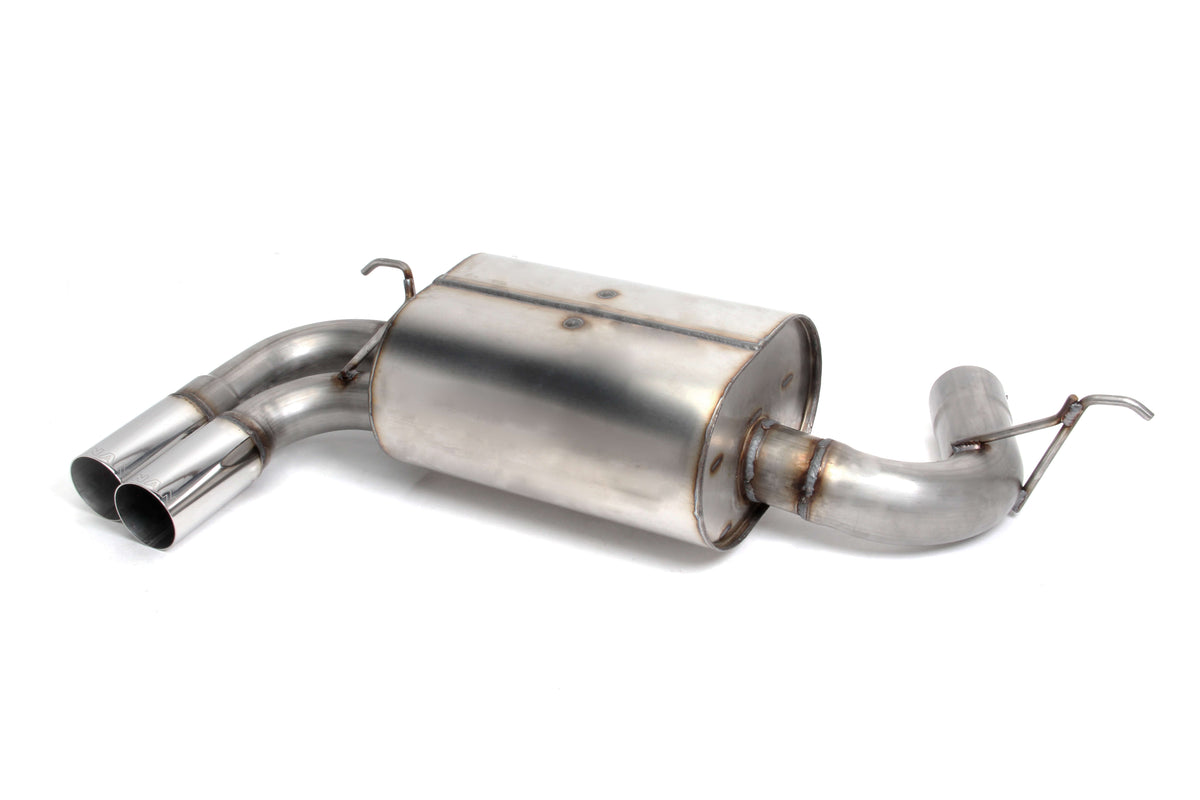

• Twin 76 mm (3 in) laser-engraved exhaust tips, polished stainless or ceramic black
• Drone abatement technology to reduce cabin resonance
• Factory computer-controlled exhaust valve is eliminated
• Bolt-on installation using the factory brackets and hangers, with mounting hardware included
• Shipping dimensions: 48 in L x 30 in W x 11 in H
• Weight: 51 lb
• Dinan labor time: 1.3 hours
• Emissions status per Dinan: legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles, because it does not affect vehicle emissions and is not covered by emissions regulations
• Dinan limited warranty: the remainder of the BMW new-car limited warranty, up to 4 years / 50,000 miles, if the vehicle is still covered by the factory warranty; otherwise 2 years / unlimited mileage. Wear items are excluded.

PARTS INCLUDED

• Complete axle-back exhaust kit as supplied by Dinan, including the muffler tube clamp and mounting hardware; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part; the mounting hardware and muffler tube clamp are supplied in the kit.

Installation

• Dinan Free Flow Axle-Back Exhaust Installation Instructions (INS660-0076, Rev. 03/14/18) - PDF
• Dinan labor time: 1.3 hours

PART NUMBER

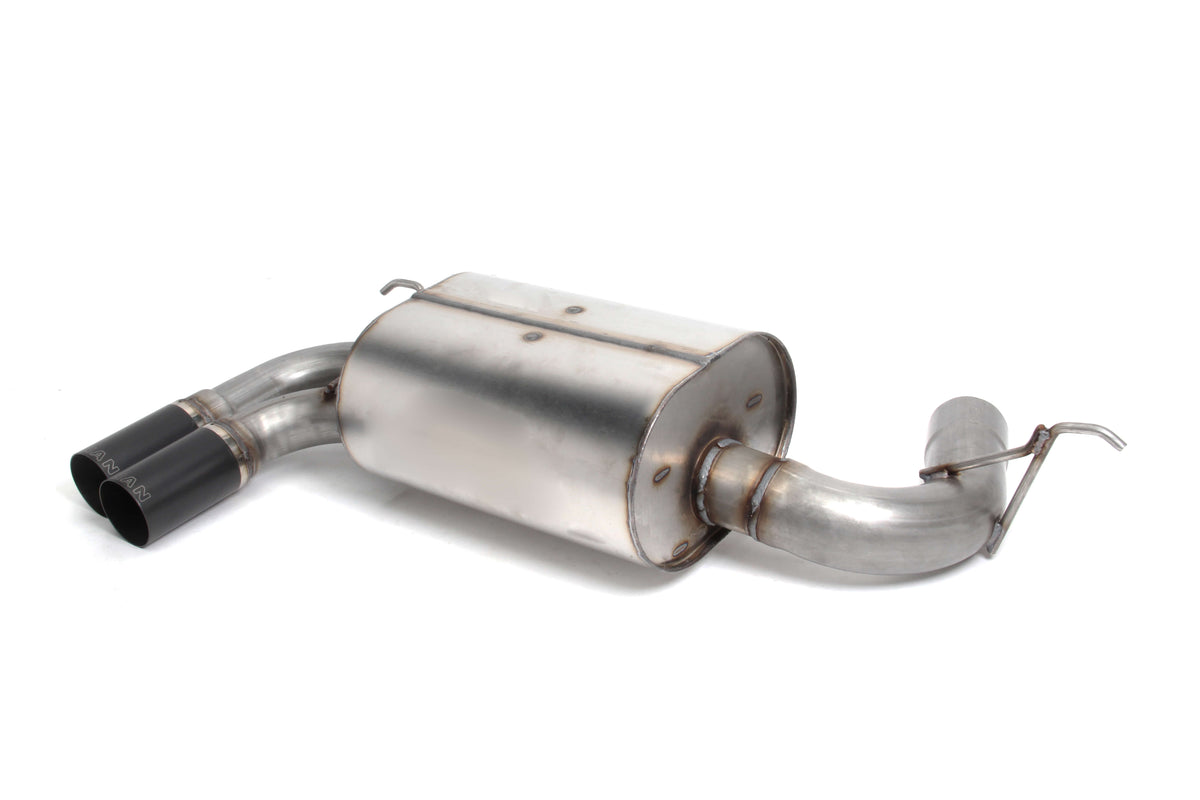

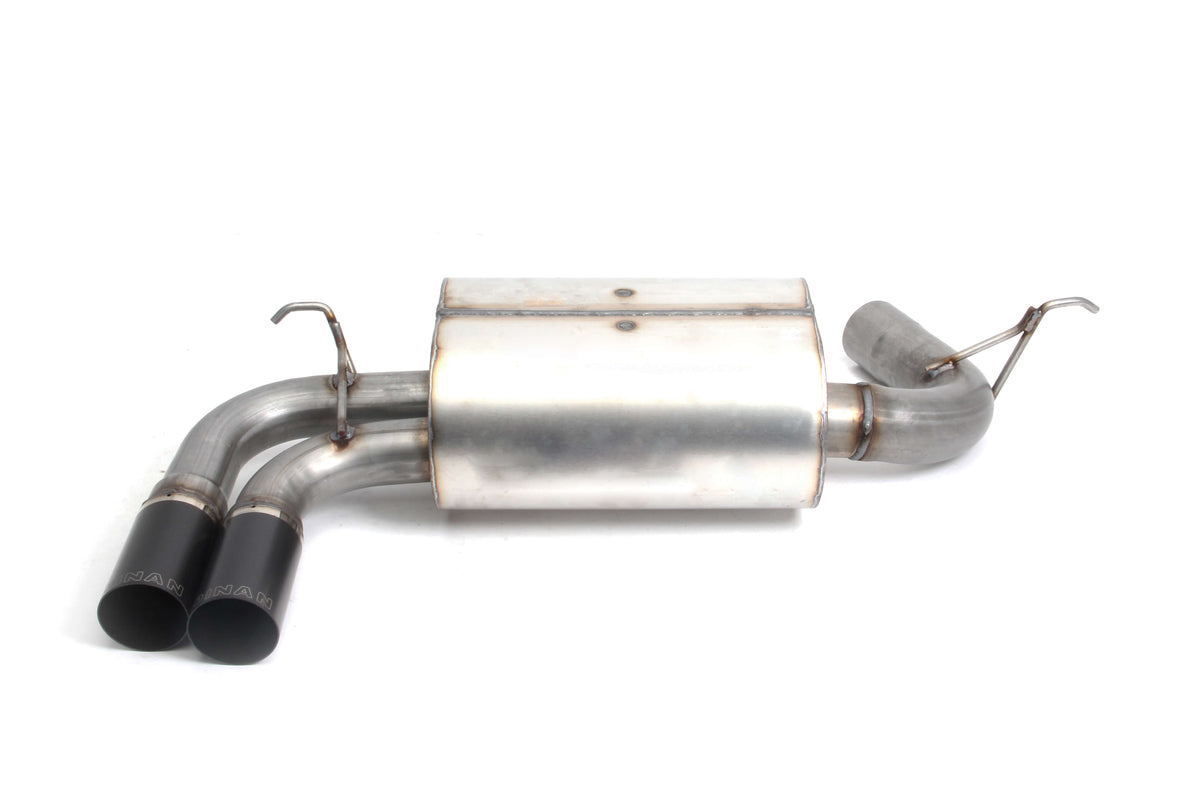

• D660-0076-BLK - ceramic black tips
• D660-0076 - polished stainless tips
