Eventuri Black Carbon Intake System V1 – BMW 330i (G20)

OVERVIEW

The BMW G20 B48 Eventuri intake was developed to give the turbo a less restrictive flow path while keeping inlet temperatures low. In the G20 the intake sits next to the exhaust manifold, which rapidly heat soaks the engine bay, and a turbo forced to build boost with heated, less dense air gives up performance. The only way to keep IATs to a minimum is a fully sealed intake, which normally creates a restriction because there is just one factory air feed to draw from.

During development Eventuri found an additional opening into the wheel well area and took advantage of it by adding a secondary feed to the airbox. The sealed airbox also carries a gold reflective heat shield to minimize radiative heat transfer from the exhaust manifold, and internal volume was maximized with a recess left for potential strut braces. The convoluted stock intake tube is replaced by a smooth carbon tube of larger internal volume that tapers down to match the turbo inlet, and the system is finished with a custom high-flow dry filter that is ISO tested for filtration performance and has a larger filtration area than stock.

The G20 3 Series B48 system uses Eventuri's patented carbon fiber housings with their Gen 2 bespoke filters, providing an aerodynamically efficient airflow path from the filter to the turbo. It is not another cone filter with a heat shield but a design that invokes the Venturi effect and maintains laminar flow conditions to reduce drag on the turbo.

SPECS

• Intake tube internal diameter increased from 80.8 mm (3.2 in) stock to 109 mm (4.3 in) — an 82% increase in cross-sectional area over stock, per Eventuri
• 100% pre-preg carbon fiber with no fiberglass, for a smooth internal surface that maintains laminar airflow
• Gloss black carbon finish
• Fully sealed carbon fiber airbox with dual air feeds, including a secondary feed from the wheel well opening
• Airbox volume maximized with a recess for potential strut braces
• Bespoke high flow dry cone filter — ISO tested, cleanable and reusable, double-layered non-woven mesh on a urethane base with an internal flow-guiding cone, larger filtration area than stock
• Heat shield with gold reflective backing to combat radiant heat from the exhaust manifold
• CNC machined temperature sensor mount

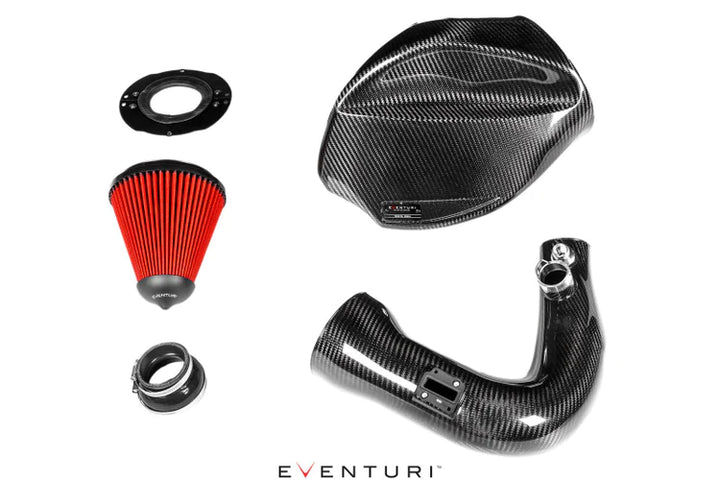

PARTS INCLUDED

• Carbon fiber airbox with dual feeds
• Carbon fiber inlet tube
• Bespoke high flow dry cone filter
• Heat shield with gold reflective backing
• CNC machined temperature sensor mount
• CNC machined breather adapters
• Silicone reducer with OEM specification clamps
• Laser cut stainless steel brackets

TECH RESOURCES

Additional Parts Required

• None. Eventuri specifies no additional hardware for this part — it is a complete bolt-on kit and no tune is required.
• Installer supplies basic hand tools.

Installation

• Eventuri BMW G20 B48 Intake — Installation Instructions (PDF)
• For a G20 330i built after November 2018, order the V2 system instead: Eventuri Black Carbon Intake System for 2019+ BMW G20 330i – EVE-G20B48-V2-INT

Notes

• DISCLAIMER: ** This item is not eligible for return ** This is the V1 system and fits G20 330i built before November 2018 only. Products that affect or remove vehicle emissions equipment (Intakes, Manifolds, Tuners, etc) that do not have a CARB EO number may not be available for sale in the state of California. Please contact us if you are unsure if a product is available for sale in California.
• Build date matters on this platform. Check your vehicle's production date before ordering, and contact Speed Logic if you are unsure which version you need.

PART NUMBER

• EVE-G20B48-V1-INT — V1, G20 330i built before November 2018
