Eventuri Carbon Intake – BMW Z4 sDrive30i (G29) / Toyota GR Supra 2.0 (B48)

OVERVIEW

The Eventuri Z4 B48 intake has been developed to give the turbo a less restrictive flow path while maintaining low inlet temperatures. Heat and volume are the main considerations when designing an intake for a turbocharged engine. In the Z4 the intake system sits next to the exhaust manifold, which rapidly heat soaks the engine bay. High temperatures are detrimental to performance because the turbo has to build boost with heated, less dense air, so the only way to keep IATs to a minimum is a fully sealed intake.

Sealing the system leaves only one factory air feed to draw from, which creates a restriction. During development Eventuri identified an additional opening into the wheel well area and took advantage of it with a secondary feed into the airbox. The sealed airbox also carries a heat shield with a gold reflective layer to minimize radiative heat transfer from the exhaust manifold, and the airbox itself was made as large as possible, with a recess to clear potential strut braces.

The stock convoluted intake tube is replaced with a smooth carbon tube of greater internal volume that tapers down to match the turbo inlet, providing an uninterrupted path from the filter. The same system fits the 4-cylinder Toyota GR Supra 2.0, which shares the Z4's B48 engine and engine bay.

SPECS

• 100% pre-preg carbon fiber with no fiberglass, for a smooth internal surface
• Sealed carbon fiber airbox with dual cold air feeds — factory front duct plus a secondary wheel well feed
• Carbon fiber inlet tube measuring 109 mm (4.3") internal diameter at the filter end
• 82% increase in cross sectional area over the 80.8 mm (3.2") OEM tube
• Bespoke high flow dry cone filter in double layered non-woven mesh, ISO tested and cleanable
• Larger filtration area than the stock filter
• Heat shield with gold reflective backing to combat radiant heat from the exhaust manifold
• Airbox recessed to clear aftermarket strut braces
• CNC machined temperature sensor mount and breather adapter
• Laser cut stainless steel brackets
• Silicone coupler with OEM specification clamps

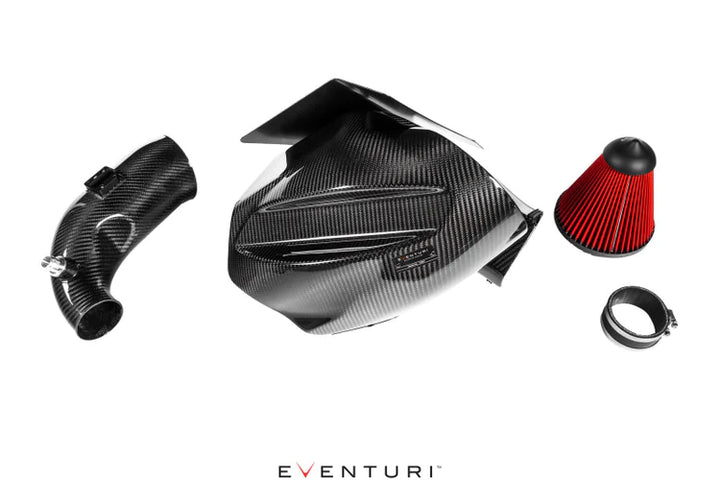

PARTS INCLUDED

• Carbon fiber airbox with dual feeds
• Carbon fiber inlet tube with 109 mm opening internal diameter
• Bespoke high flow dry cone filter
• Heat shield with gold reflective backing
• CNC machined temperature sensor mount
• CNC machined breather adapter
• Laser cut stainless steel brackets
• Silicone coupler with OEM specification clamps

TECH RESOURCES

Additional Parts Required

• None. Eventuri specifies no additional hardware for this part.

Installation

• Eventuri B48 Intake System – Installation Instructions (PDF) — the guide Eventuri supplies for this application

Notes

• DISCLAIMER: ** This item is not eligible for return ** Products that affect or remove vehicle emissions equipment (Intakes, Manifolds, Tuners, etc) that do not have a CARB EO number may not be available for sale in the state of California. Please contact us if you are unsure if a product is available for sale in California.
• B48 2.0L cars only. The 6-cylinder B58 Supra 3.0 and Z4 M40i take the Eventuri Black Carbon Intake – Toyota GR Supra 3.0 (A90) / BMW Z4 M40i (G29). The Z4 sDrive20i was not sold in the US.

PART NUMBER

• EVE-G29Z4-B48-INT
