Evolution Racewerks Charge Pipe – BMW N20 / N26 (F30)

OVERVIEW

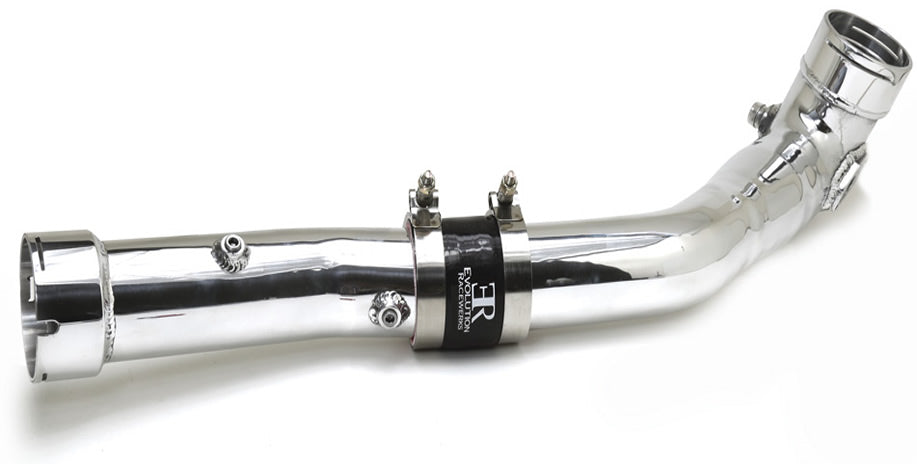

The Evolution Racewerks Charge Pipe replaces the factory soft plastic charge pipe on the F chassis N20 and N26 four cylinder turbo engine. The stock pipe is prone to breaking under high boost; this one is made entirely from lightweight high grade 6061 aluminium and is covered by a Limited Lifetime Warranty.

The pipe is throttle body matched at 2.75" and retains the factory style o-ring throttle body lock flange. That flange is precision CNC machined for a leak free connection and makes removal and installation quick, which Evolution Racewerks considers a better solution than the silicone hose and hose clamp connection used by other aftermarket charge pipes. A CNC machined MAP sensor flange keeps that connection sealed, and beaded pipe ends with T-bolt clamps prevent the intercooler piping from blowing off under boost.

Evolution Racewerks states the pipe increases throttle response and decreases turbo lag, and it remains compatible with the factory electronic diverter valve.

SPECS

• Lightweight high grade 6061 aluminium, mandrel bent piping
• Throttle body matched 2.75" piping
• Retains the factory style o-ring throttle body lock flange
• Precision CNC machined throttle body flange for a leak free connection and quick removal and installation

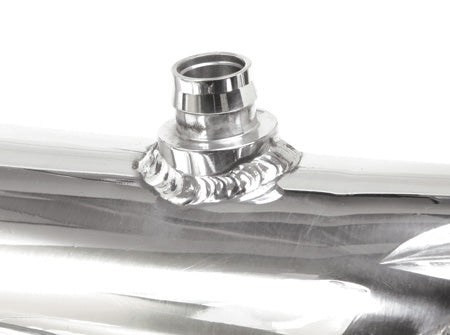

• Precision CNC machined MAP sensor flange for a leak free connection
• Beaded ends with T-bolt clamps so the intercooler piping cannot blow off under boost

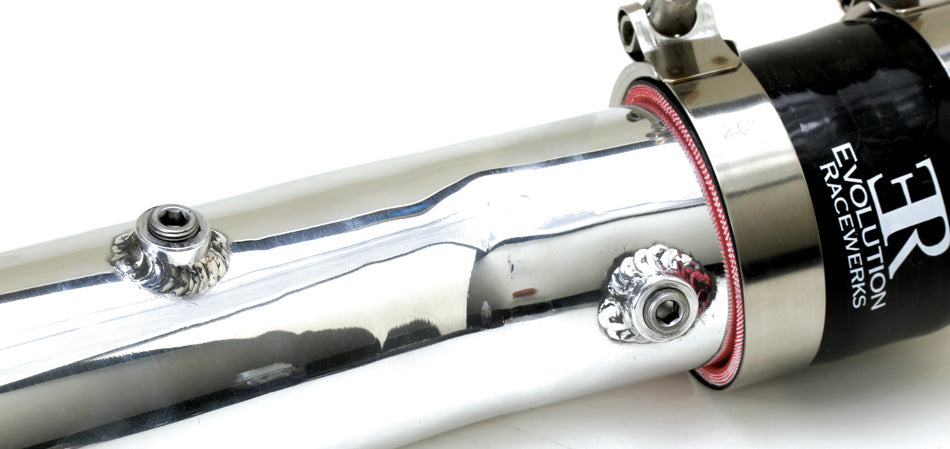

• Two 1/8" NPT bungs supplied pre-capped, for methanol injection or as a boost source
• Pressure tested to 25 PSI in Evolution Racewerks testing
• Compatible with the factory electronic diverter valve
• Finishes: brush, mirror polish, or Type III hard black anodizing
• Made in the USA
• Warranty: Evolution Racewerks Limited Lifetime Warranty.

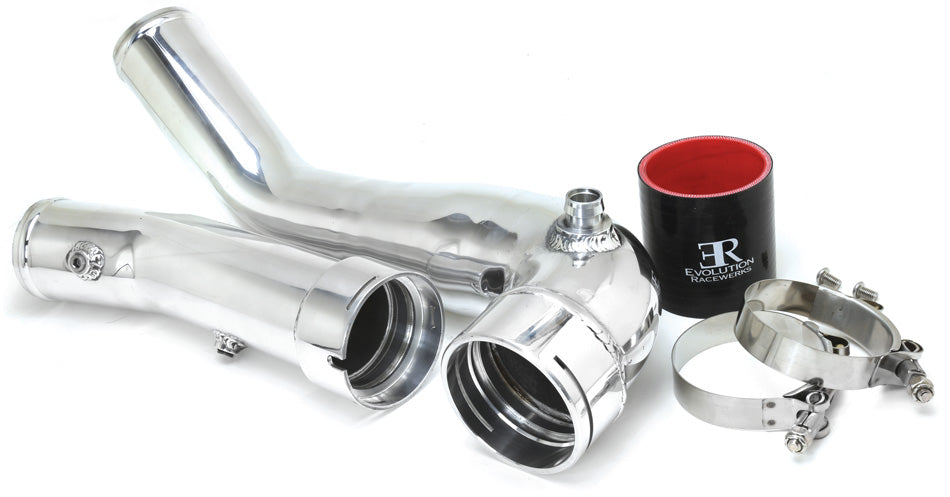

PARTS INCLUDED

• Charge pipe
• Silicone hose
• T-bolt clamps
• Two 1/8" NPT bungs, pre-capped
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for this part.

Installation

• Evolution Racewerks does not publish a downloadable installation guide for this part. Contact Evolution Racewerks technical support or Speed Logic for fitting guidance.

Notes

• Finish options change the suffix on the base part number. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• BM-ICP006SA — Charge Pipe Kit for F Chassis N20/N26 (4 cylinder) engine
• Base number recorded on the Speed Logic variant: BM-ICP006
