Evolution Racewerks Competition Series 4.5" Catless Downpipe – BMW B58 F & G Chassis

OVERVIEW

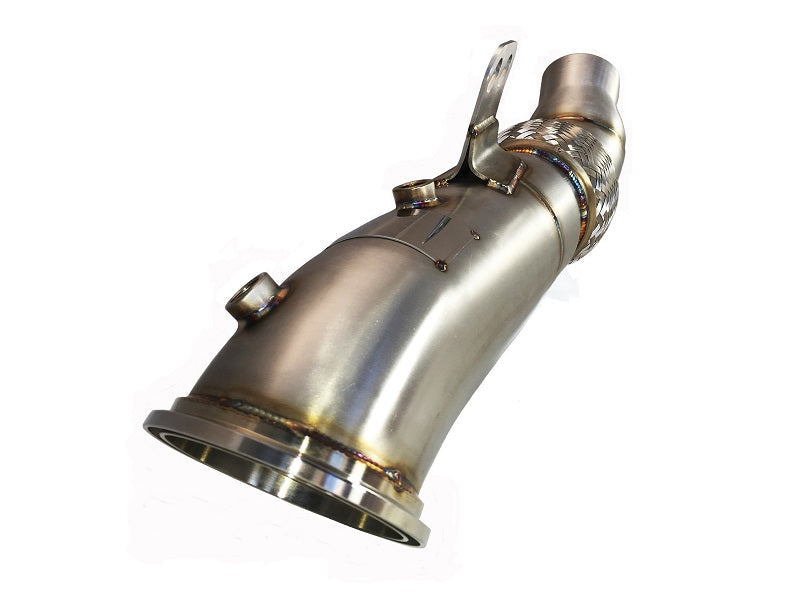

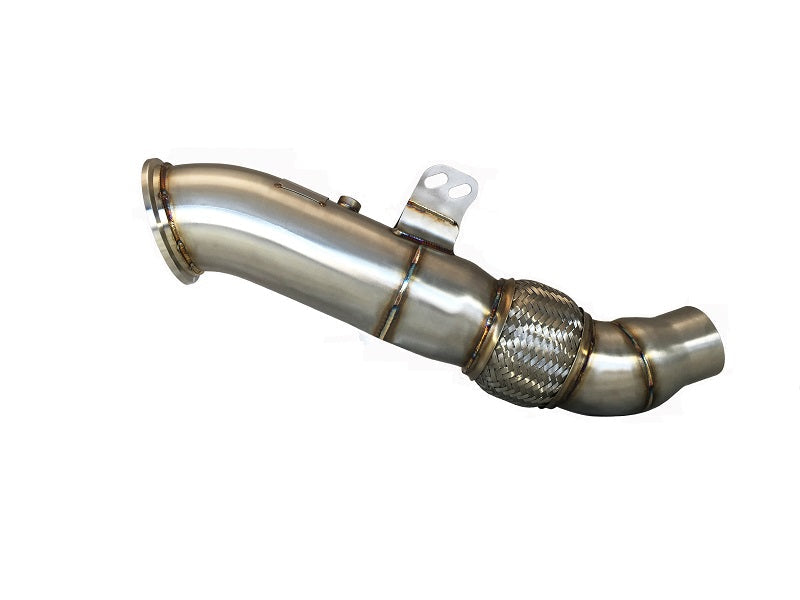

Evolution Racewerks' Competition Series 4.5" Catless Downpipe is designed for the B58 six-cylinder turbo engine in F- and G-chassis BMW models: the M240i, 340i, 440i, 540i, 740i and 840i, the X3 M40i and X4 M40i, the X5, X6 and X7 xDrive40i, and the Z4 M40i. Mandrel-bent 4.5" piping matches the B58 turbo outlet, which is larger than the N55's 4" outlet, and uses long, smooth transitions down to the exhaust.

Evolution Racewerks reports gains of 32 whp and 16 wtq, with a power curve that shifts left for reduced turbo lag. The downpipe is built entirely from 304 stainless steel, 100% TIG welded, and made in the USA, with a precision CNC machined turbocharger V-band flange. It works with the factory exhaust system or an aftermarket one.

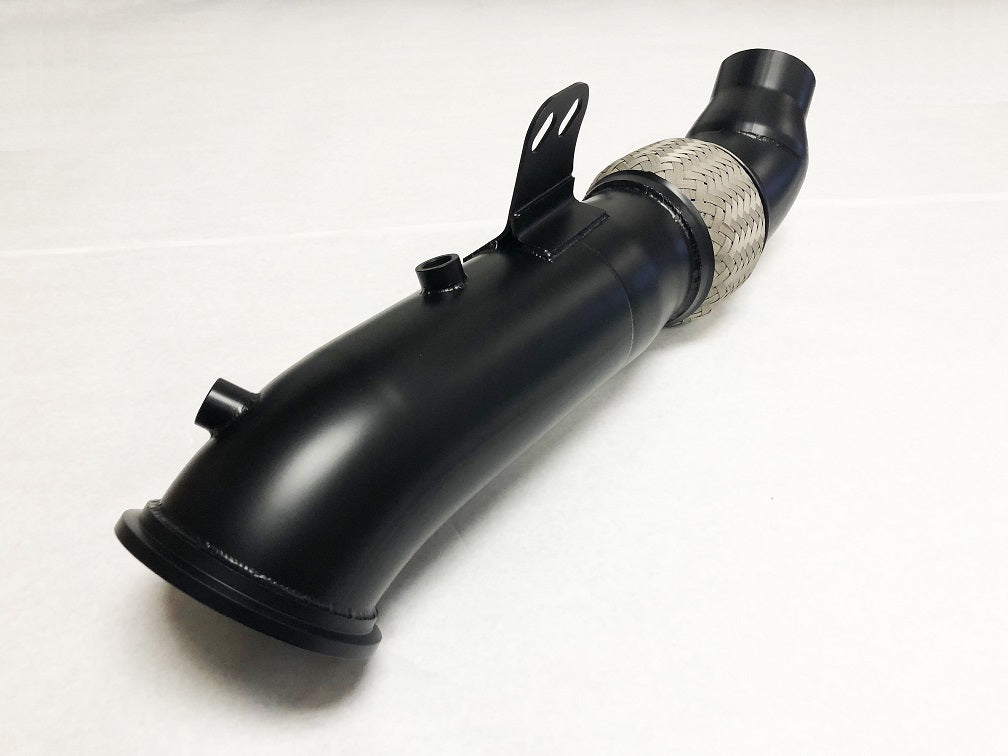

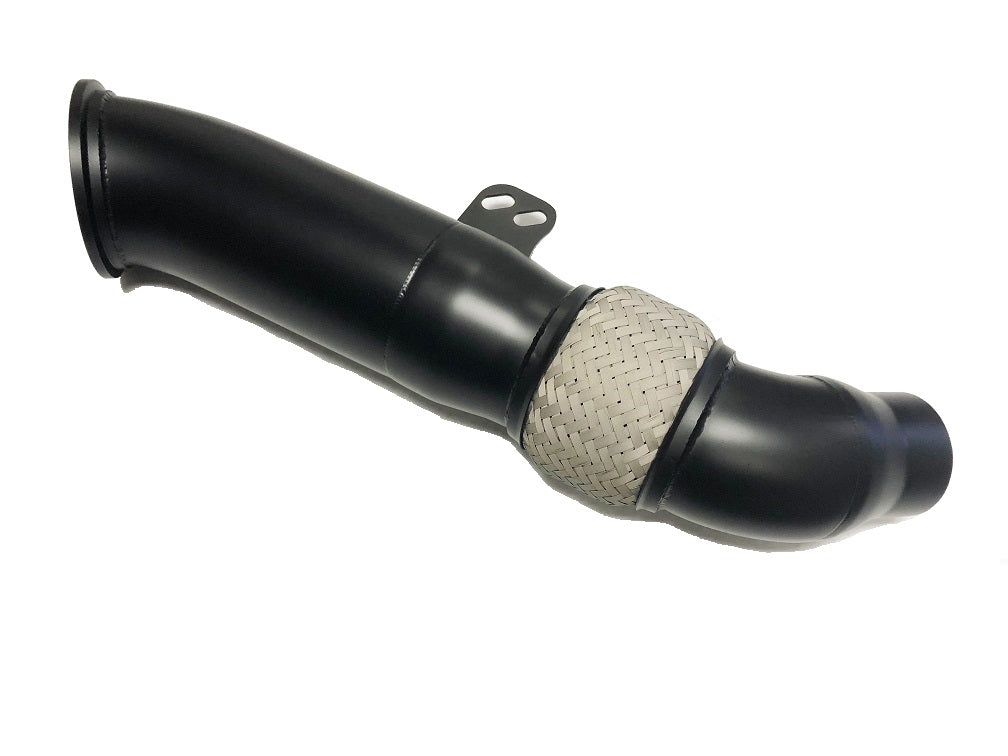

Ceramic thermal coating is offered as an option. It keeps exhaust heat inside the downpipe, lowering underhood temperatures and keeping exhaust velocity up. ER's thermal coating resists up to 2000°F and is available in black only.

SPECS

• Design: catless (no catalytic converter)
• Piping: mandrel bent 4.5"
• Construction: 100% 304 stainless steel, 100% TIG welded, made in the USA

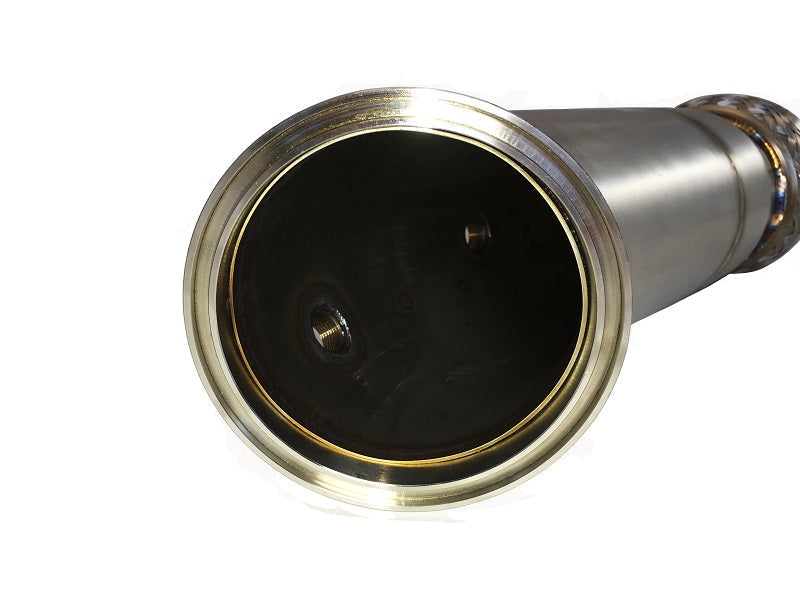

• Turbocharger flange: precision CNC machined V-band
• Finish options: Brush, Polish, or black Ceramic Thermal Coating (rated to 2000°F)
• Compatible with the factory or aftermarket exhaust systems
• Track tested durability
• Limited Lifetime Warranty

PARTS INCLUDED

• Competition Series 4.5" catless downpipe in the selected finish
• All hardware required for complete installation, as supplied by Evolution Racewerks

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for this part; all installation hardware is supplied and the downpipe mates to the factory or an aftermarket exhaust.
• A signed Vehicle Compliance Waiver and vehicle use verification are required before this part can be sold and shipped.

Installation

• Evolution Racewerks does not publish an installation guide or video for this downpipe. It bolts to the factory turbocharger V-band flange and reconnects to the factory or aftermarket exhaust using the supplied hardware.
• Contact Speed Logic for installation support or fitment questions.

Notes

• Catless downpipe: for off-road / race use only and not emissions legal for street use. Not for sale, installation or use on licensed vehicles in California.

PART NUMBER

• BM-EXH018S — Brush Finish
• BM-EXH018P — Polish Finish
• BM-EXH018TB — Ceramic Thermal Coating
• Sports Series 4.5" High Flow Catted Downpipe version — BM-EXH018SCAT / BM-EXH018PCAT / BM-EXH018TBCAT
