Evolution Racewerks FMIC Intercooler – BMW M2 (F87)

OVERVIEW

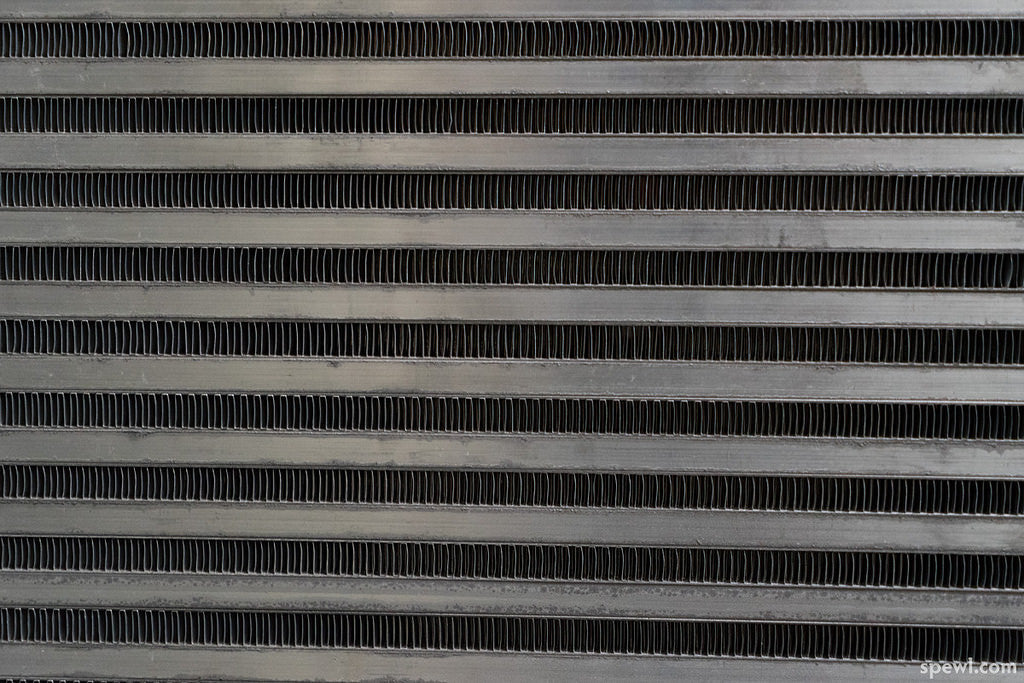

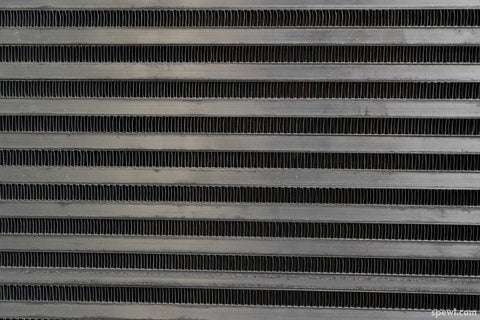

The Evolution Racewerks Competition Series Front Mount Intercooler for the 2016–18 BMW M2 was developed over more than a year of testing on a stable of test cars in different racing conditions. The core measures 20" x 11" x 3", or 26" x 11" x 3" including the end tanks, and uses Evolution Racewerks' high density bar and plate construction in place of the factory tube and fin core.

Fin density is where the core does its work. The fins are the main heat transfer surface, so more fins per square inch means more real surface area. Most quality cores run 12 to 14 fins per square inch and inexpensive overseas cores run 8 to 10, while Evolution Racewerks cores run 18 to 20 fins per square inch. The result is 660 cubic inches of high density bar and plate core against the factory's 425 cubic inches of less efficient tube and fin, a 35% increase in core volume.

Cast end tanks improve durability and internal flow, and the intercooler uses factory style connectors so it works with the factory charge piping or aftermarket piping that uses factory style connectors. All factory components are retained, no modification is required, and the kit is 100% bolt on. Every Evolution Racewerks FMIC is pressure tested to 50 PSI before it ships.

SPECS

• Core dimensions: 20" x 11" x 3" (26" x 11" x 3" including end tanks)
• Core volume: 660 cubic inches versus the factory 425 cubic inches, a 35% increase
• Core type: high density bar and plate, replacing the factory tube and fin core
• Fin density: 18 to 20 fins per square inch (typical quality cores run 12 to 14, cheap overseas cores 8 to 10)
• Cast end tanks for improved durability and internal flow characteristics
• Factory style connectors; compatible with factory or aftermarket piping using factory style connectors
• Retains ALL factory components; no modifications required; 100% bolt on
• Finish: brushed as standard; optional polished or Type III hard black anodizing
• Every FMIC is pressure tested to 50 PSI before shipping
• Limited Lifetime Warranty

PARTS INCLUDED

• Competition Series bar and plate front mount intercooler with cast end tanks
• All hardware needed to install
• Detailed installation instructions

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for this intercooler — it retains all factory components, requires no modifications and is 100% bolt on.

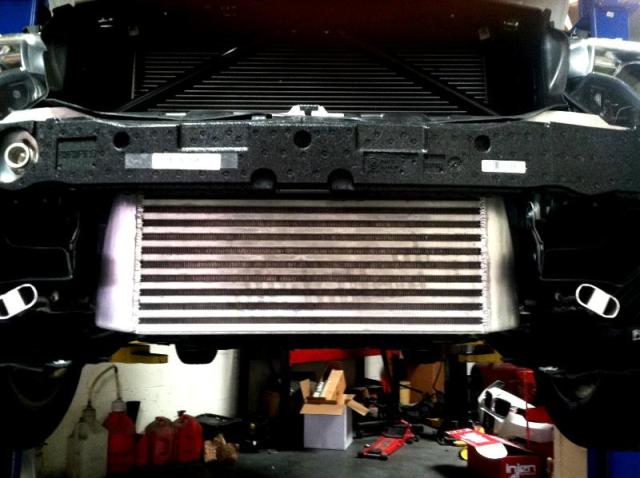

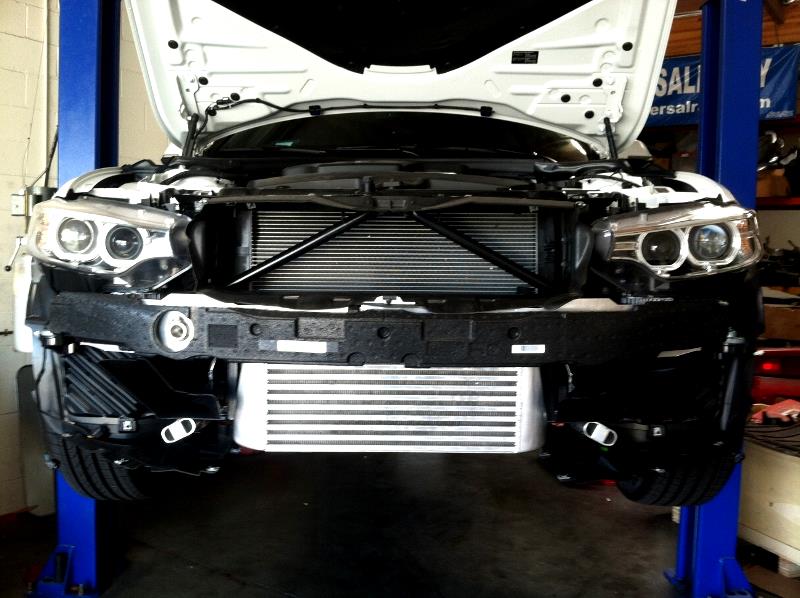

• Installer supplies normal hand tools and a vehicle lift or stands; front bumper removal is required for access.

Installation

• Evolution Racewerks supplies printed installation instructions with the intercooler but does not publish a downloadable installation guide.
• Contact Speed Logic if you need installation support or a recommended installer.

PART NUMBER

• BM-FMIC007SM1 — brushed
• BM-FMIC007PM1 — polished
• BM-FMIC007BM1 — Type III hard anodized black
• M135i / M235i version — BM-FMIC007S1
