Evolution Racewerks Lower Intercooler (LIC) Charge Pipe Kit – BMW X5 / X6 35i N55 (E70 / E71 / F15 / F16)

OVERVIEW

The Evolution Racewerks Lower Intercooler (LIC) Charge Pipe Kit replaces the factory rubber/plastic lower charge pipe on the BMW X5 35i and X6 35i with the N55 single-turbo engine (E70, E71, F15 and F16), a part that is prone to breaking under high boost. In its place ER supplies a lightweight, mandrel-bent 6061 aluminum pipe sized to match the intercooler at 2.5".

Hard piping keeps a constant inner diameter and will not balloon or collapse the way a rubber hose does, giving better throttle response and reduced turbo lag. The pipe retains a factory-style O-ring lock flange, precision CNC machined for a leak-free connection, so it is a plug-and-play swap.

SPECS

• Material: high-grade 6061 aluminum, mandrel bent
• Piping diameter: 2.5", intercooler matched
• Precision CNC machined factory-style O-ring lock flange
• Beaded pipe ends with T-bolt clamps to prevent the piping from blowing off under boost
• Silicone hump hose included
• Finish options: Brush, Mirror Polish, or Type III Hard Anodized Black (harder, more dent-resistant, OEM look)
• Made in the USA, manufactured in-house
• Limited Lifetime Warranty

PARTS INCLUDED

• 6061 aluminum lower intercooler charge pipe in the selected finish
• Silicone hump hose
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware; all mounting hardware and the silicone hump hose are supplied in the kit.

Installation

• Evolution Racewerks does not publish an installation guide or video for this charge pipe. It installs in the factory location using the retained O-ring lock flange.
• Contact Speed Logic for installation support or fitment questions.

Notes

• Off-Road Use Only. Not CARB legal.
• For the 2011–2016 535i / 640i N55 (F10 / F06 / F12 / F13), see the Evolution Racewerks Lower Intercooler Charge Pipe – BMW 535i / 640i (N55, F Series).

PART NUMBER

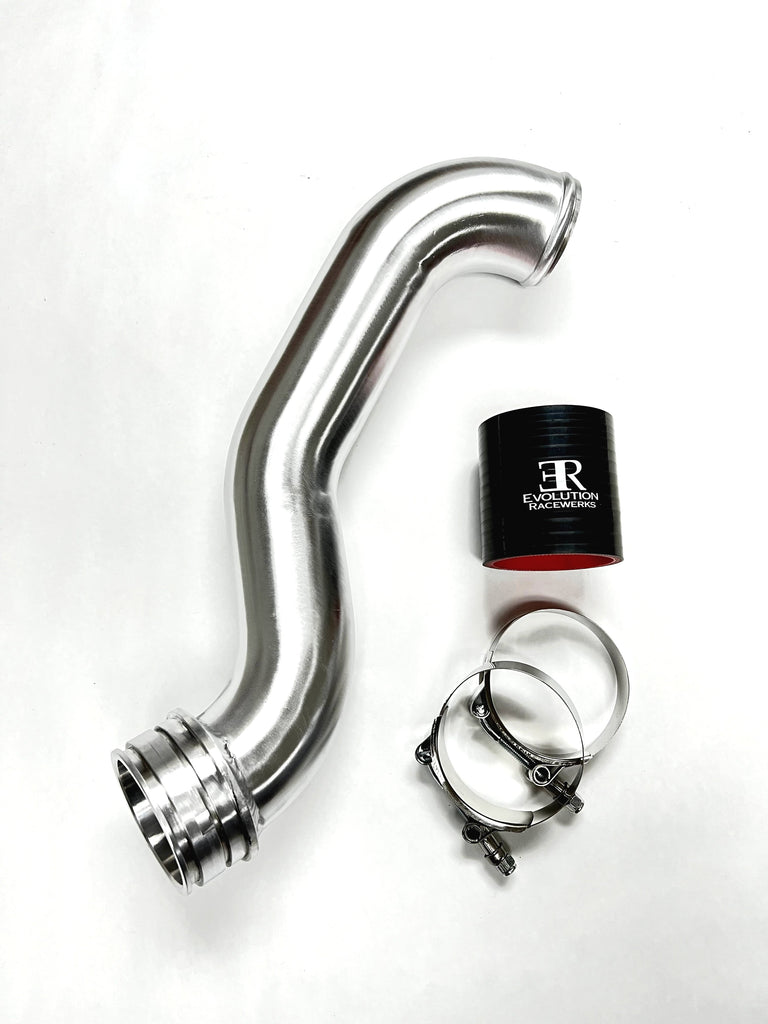

• BM-ICP016SLIC — Brush Finish

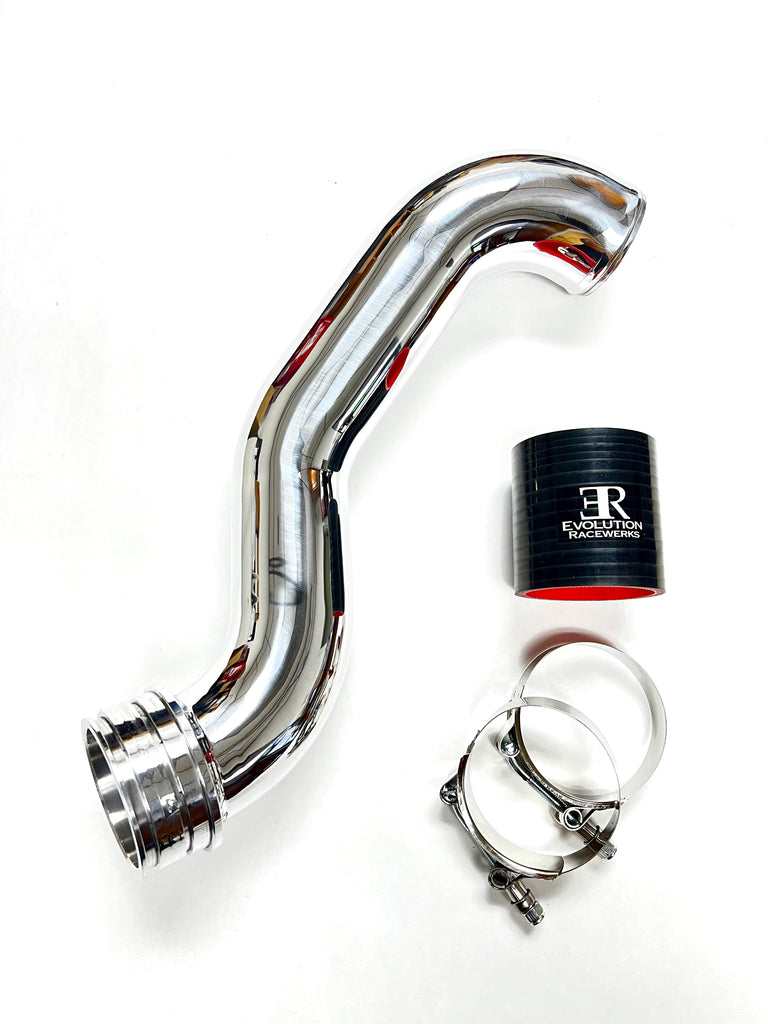

• BM-ICP016PLIC — Polish Finish

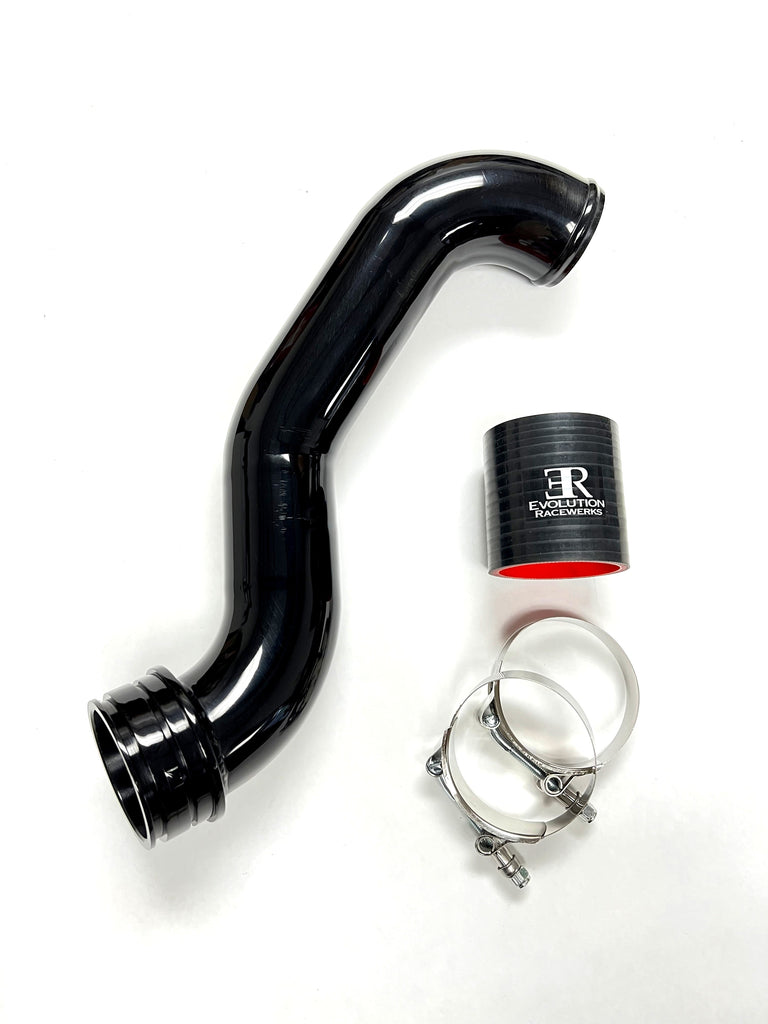

• BM-ICP016BLIC — Type III Hard Anodized Black

VEHICLE APPLICATIONS
