OVERVIEW

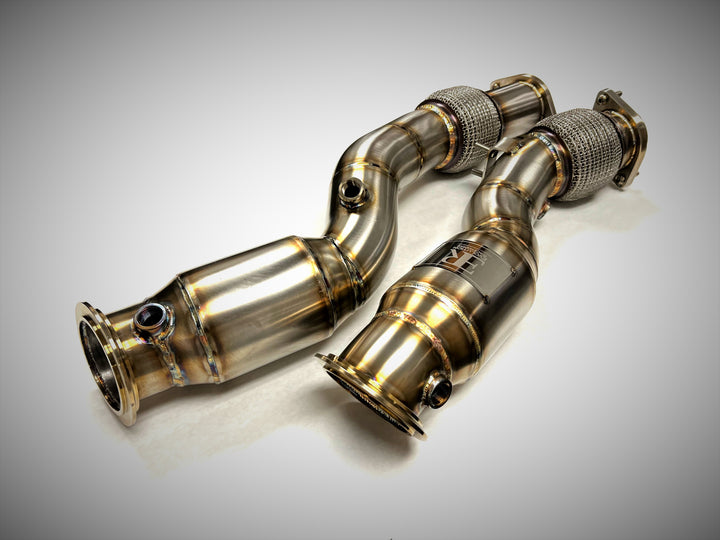

Evolution Racewerks' Sports Series High Flow Catted Downpipes are built for the twin turbo S58 engine and fit 2020 and newer BMW X3M and X4M models. They replace the restrictive factory downpipes with a 200 cell metallic core and mandrel bent 3" piping for a higher maximum horsepower curve, a torque curve that arrives sooner and holds longer, better throttle response and faster spool.
The factory catalytic converter is a major exhaust restriction: its catalyst material is formed into tight honeycomb weaves that exhaust must squeeze through, and the turbulence it creates downstream slows flow further. ER uses a 200 cell metallic core, so each cell is larger and gas passes through more easily. Lower cell count equals higher flow, and higher flow means more power, less turbo lag and better throttle response. A metallic core also tolerates higher temperatures, lasts longer and weighs less than the factory ceramic unit.
Construction is 100% 304 grade stainless steel with mandrel bent piping, 100% TIG welded by ER's in-house fabricators and built in the USA. The 3.5" factory turbine housing V-band flange is duplicated and CNC machined from billet 304 stainless, the O2 sensor stays in its factory location, and the factory donut flange design and slip-on connection are retained, making the kit 100% bolt on. The downpipes are designed to fit the factory exhaust system or an aftermarket system with no compatibility issues.
SPECS
- Catalytic converter: high flow 200 cell metallic core
- Piping: mandrel bent 3"
- Construction: 100% 304 grade stainless steel, 100% TIG welded, built in the USA
- Turbocharger flange: precision CNC machined 3.5" V-band cut from billet 304 stainless steel
- Retains the factory donut style gasket and factory slip-on style connection — 100% bolt on
- O2 sensor retained in the factory location; CNC machined O2 bung and laser cut brackets TIG welded with stainless rod
- Finish: brushed as standard, mirror polish available
- Optional high temperature black ceramic thermal coating rated to 2000°F to reduce underhood temperatures; available in black only
- Ease of installation: 3 on Evolution Racewerks' 1 (easy) to 5 (hard) scale
- Compatible with the factory or aftermarket exhaust systems
- Track tested durability
- All hardware for a complete installation is included
- Warranty: Evolution Racewerks Limited Lifetime Warranty
PARTS INCLUDED
- Pair of Sports Series high flow 200 cell metallic catted downpipes
- All hardware required for complete installation, as supplied by Evolution Racewerks
TECH RESOURCES
Additional Parts Required
- None. Evolution Racewerks specifies no additional hardware for this part; the factory donut gaskets and slip-on connections are retained and all installation hardware is supplied.
Installation
- Evolution Racewerks does not publish a downloadable installation guide for these downpipes. They bolt to the factory turbocharger V-band flanges and reconnect to the factory or aftermarket exhaust using the retained slip-on joints.
- Contact Speed Logic for installation support or fitment questions.
Notes
- Fitment above follows Evolution Racewerks' published application data. If your car is not listed, confirm fitment with Speed Logic before ordering.
PART NUMBER
- BM-EXH025SCAT — Evolution Racewerks catalog number for the X3M / X4M S58 Sports Series high flow catted downpipes
- Store variant numbers: BM-EXH025CAT (brushed), BM-EXH025CAT-pol (polished), BM-EXH025CAT-Blk (black thermal coating)
VEHICLE APPLICATIONS
| Make / Model | Chassis | Engine | Years |
|---|---|---|---|
| BMW X3 M | F97 | S58 3.0L Twin-Turbo I6 | 2020+ |
| BMW X4 M | F98 | S58 3.0L Twin-Turbo I6 | 2020+ |
