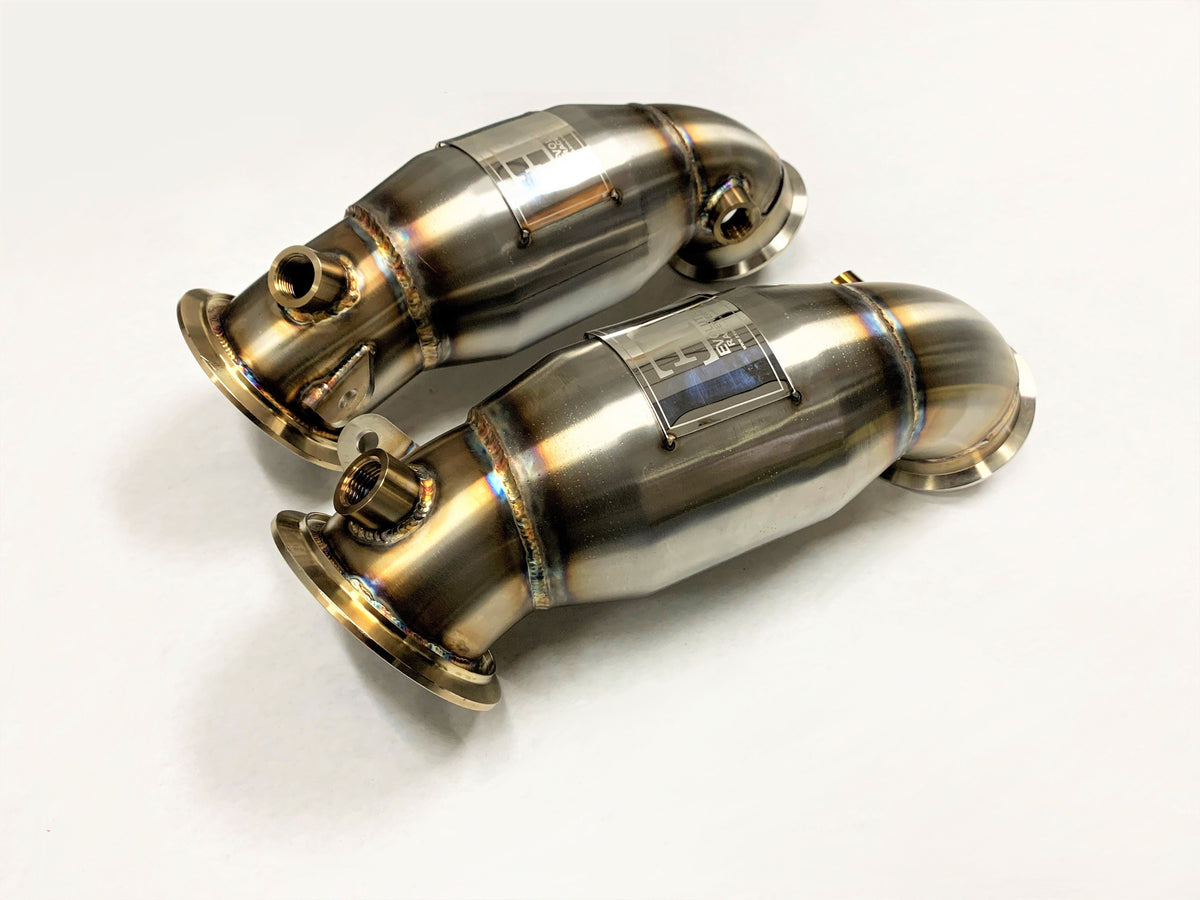

Evolution Racewerks Sports Series High Flow Catted Primary Downpipe – BMW M5 / M8 (F90 / F92 / F93, S63M)

OVERVIEW

Evolution Racewerks Sports Series high flow catted primary downpipe for the BMW M5 (F90) and M8 (F92/F93) with the S63M twin-turbo V8. The S63M runs four catalytic converters, two primary and two secondary; this part replaces only the primary section with a 200-cell metallic high flow catalytic converter, which flows far better than the factory units. The result is a higher horsepower curve, a stronger and earlier torque curve, sharper throttle response and faster turbo spool. Pair it with the factory or aftermarket secondary downpipes.

SPECS

• Sports Series: 200-cell metallic high flow catalytic converter
• Mandrel bent 3" piping
• 100% 304 stainless steel construction, 100% TIG welded
• CNC machined billet stainless turbo V-band flange duplicating the factory 3.5" V-band
• CNC machined stainless O2 sensor mount and laser cut brackets; O2 sensor stays in the factory location
• Bolt-on installation
• Primary downpipe section only
• Finish options: Brush, Mirror Polish, or black Ceramic Thermal Coating (rated to 2000°F; reduces underhood temperatures and adds corrosion resistance)
• Works with factory or aftermarket secondary downpipes and exhaust systems
• Made in the USA, manufactured in-house
• Limited Lifetime Warranty

PARTS INCLUDED

• ER Sports Series high flow catted primary downpipe in the selected finish
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• Supporting tuning is REQUIRED after installation to prevent check engine lights and realize the performance gain (sold separately): Bootmod3 S63TU4 Tune – BMW M5 / M8 / X5M / X6M (F9x) (cars built before June 2020), MHD Super License – BMW S63 (M5 / M6 / M8), or Burger Motorsports JB4 Tuner – BMW M5 / M8 / X5M / X6M (S63 F9x).

Installation

• Evolution Racewerks does not publish an installation guide or video for this part.
• Contact Speed Logic for installation support or fitment questions.

Notes

• Not CARB exempt. Not legal for sale, installation or use on pollution-controlled vehicles in California.
• Related M5 / M8 (F90 / F92 / F93) downpipes: Competition Series Catless Primary Downpipe, Competition Series Catless Secondary Downpipes, Competition Series Catless Downpipes (complete set) and Sports Series High Flow Catted Downpipe (complete set).

PART NUMBER

• BM-EXH022SCAT-PRIM — Sports Series high flow catted primary downpipe, Brush finish
• BM-EXH022PCAT-PRIM — Sports Series high flow catted primary downpipe, Polish finish
• BM-EXH022TBCAT-PRIM — Sports Series high flow catted primary downpipe, Ceramic Thermal Coating
