Evolution Racewerks Sports Series Resonated Mid Pipes – BMW M3 / M4 (G80 / G82, S58)

OVERVIEW

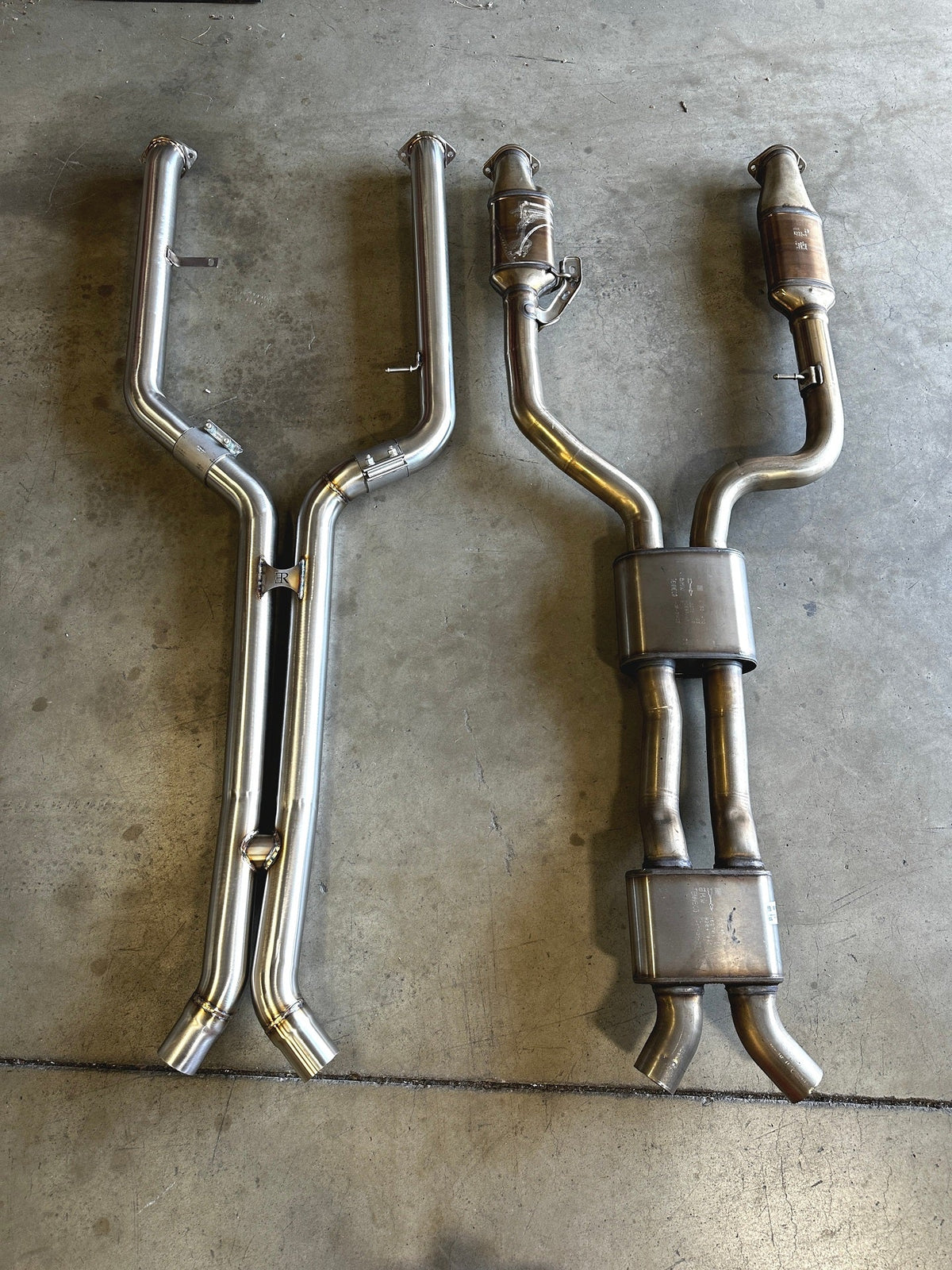

Evolution Racewerks' Sports Series Resonated Mid Pipes for the twin-turbo S58 engine fit the 2021 and newer BMW M3 (G80) and M4 (G82). They swap the restrictive factory resonators for free-flowing units, which raises the maximum horsepower curve, brings the torque curve on sooner and holds it higher and longer, and improves throttle response and turbo spool.

The resonated version is designed to sound close to factory rather than louder. It suits owners who do not want more volume than stock, or who already run aftermarket downpipes or an exhaust that has become too loud, while still gaining performance. Mandrel bent 3" (80mm) tubing runs through the full mid section.

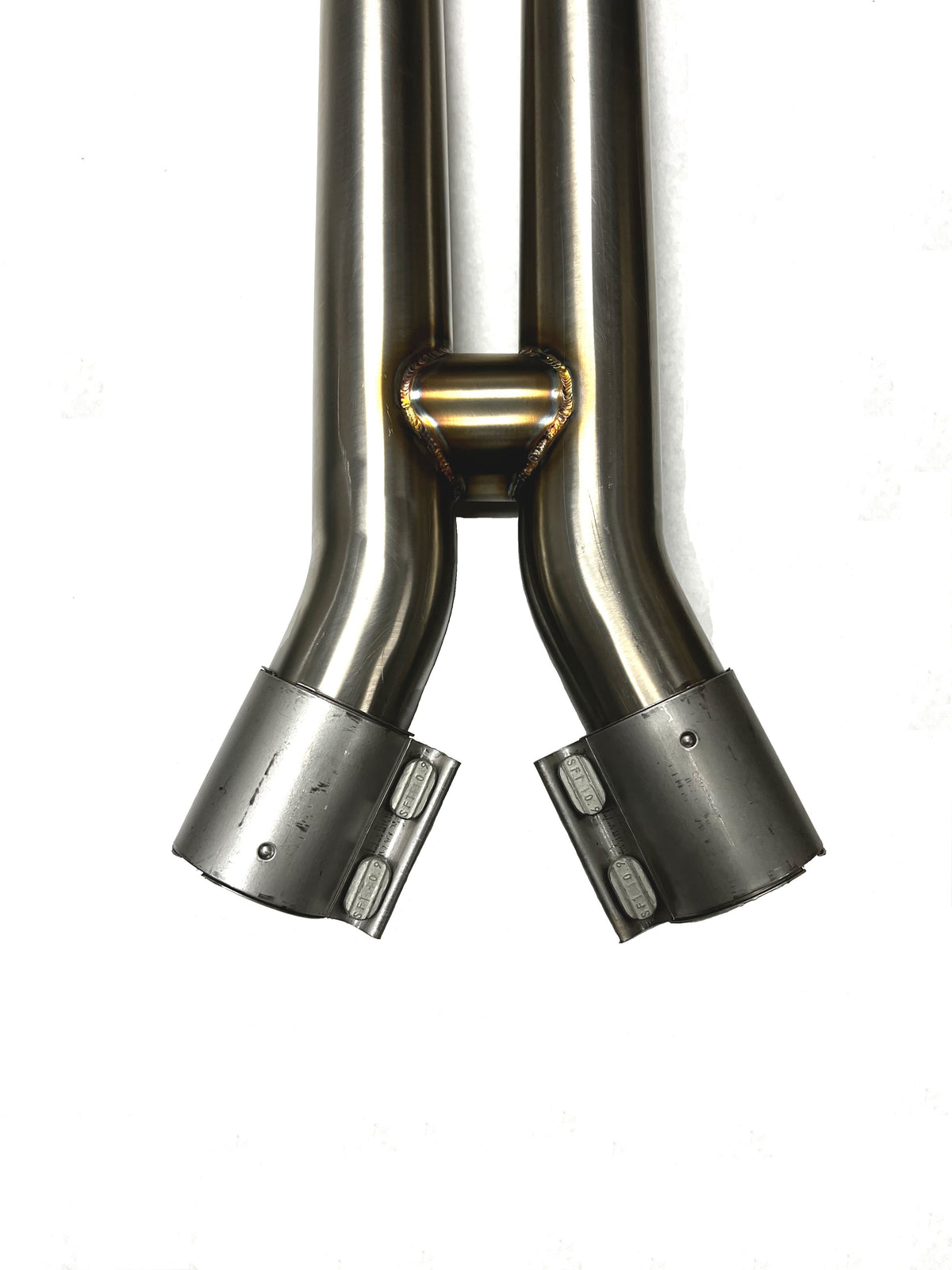

An "H" style crossover equalizes pressure between the left and right exhaust pipes, which promotes flow and reduces droning. ER tested "X" and "H" designs and found the "H" crossover reduced droning and improved low end torque; BMW uses an "H" crossover on the factory mid pipe as well. The pipes are built from 100% 304 grade stainless steel, 100% TIG welded in house in the USA, with CNC precision cut billet stainless flanges. The factory bracket hanger is retained, and high quality exhaust clamps join the mid pipes to the rear muffler section. A 3-piece design lets the set ship by standard ground and air carriers instead of truck freight.

SPECS

• Piping: mandrel bent 3" (80mm)
• Construction: 100% 304 grade stainless steel, 100% TIG welded, built in the USA

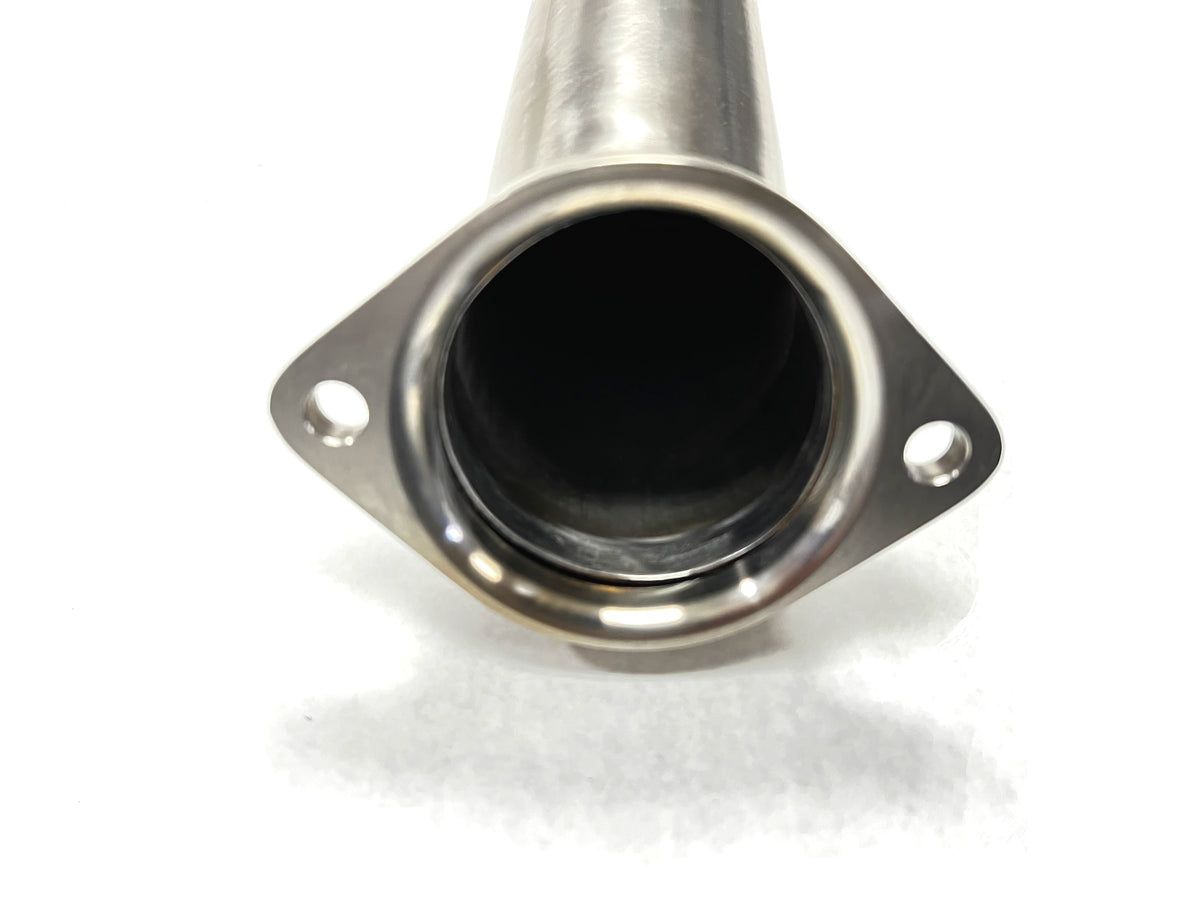

• Flanges: precision CNC machined billet stainless steel
• "H" style crossover for reduced droning and better low end torque
• Resonated for a near-factory exhaust tone while improving flow over factory
• Retains the factory bracket hanger, laser cut and TIG welded with stainless rod
• 3-piece design
• Finish: brushed
• Compatible with the factory exhaust or an aftermarket system designed around the factory mid pipes
• Track tested durability
• Warranty: Evolution Racewerks Limited Lifetime Warranty

PARTS INCLUDED

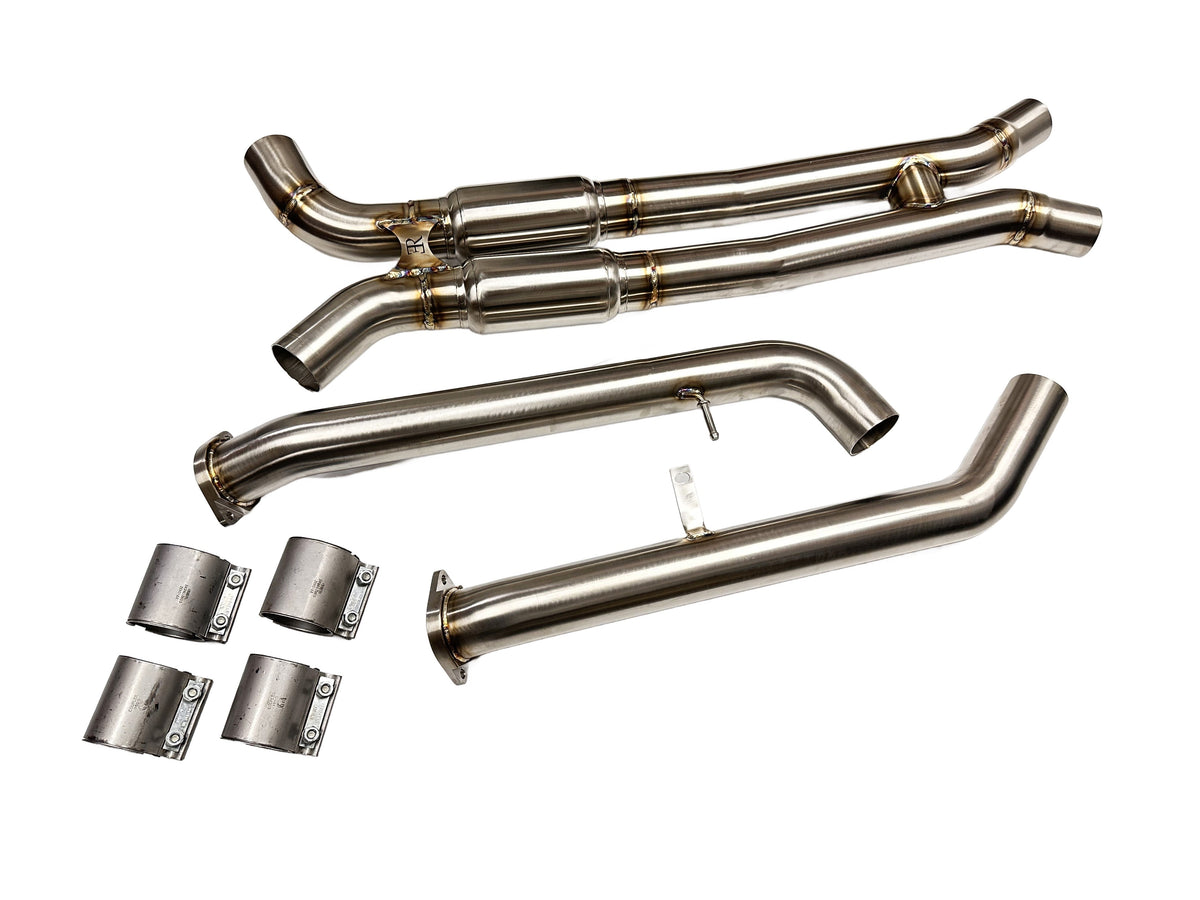

• Pair of Sports Series resonated mid pipes with "H" crossover (3-piece)
• Exhaust clamps for the connection to the rear muffler section
• All hardware required for complete installation, as supplied by Evolution Racewerks

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for this part; the factory bracket hanger is reused and all installation hardware is supplied.

Installation

• Evolution Racewerks does not publish an installation guide or video for this part.
• Contact Speed Logic for installation support or fitment questions.

Notes

• For OFF-ROAD / RACE USE ONLY and not emissions legal for street use. Not for sale, installation or use on licensed vehicles in California.
• Want a louder, more aggressive note? See the non-resonated Competition Series Mid Pipes – BMW M3 (G80) / M4 (G82) S58.
• Fitment below follows Evolution Racewerks' published application data. If your car is not listed, confirm fitment with Speed Logic before ordering.

PART NUMBER

• BM-EXH028S-MIDH-R — Sports Series resonated "H" crossover mid pipes, brushed finish
