OVERVIEW

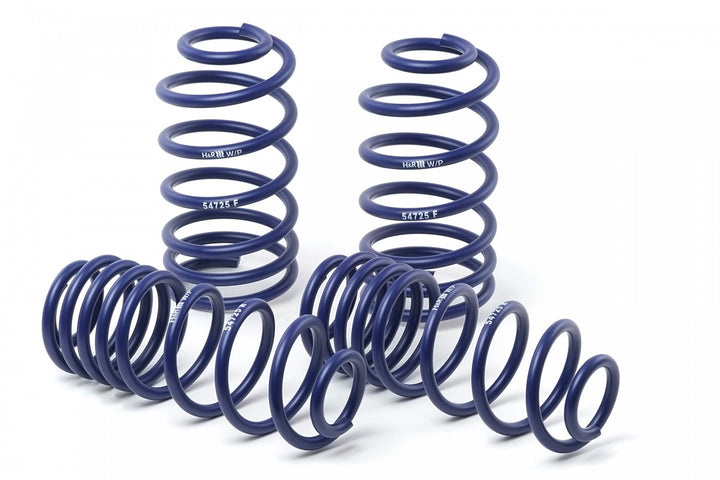

H&R Sport Springs are the best-selling performance street spring for BMW, and replacing the factory coils is one of the first steps in suspension tuning. Lowering the G14 M850i xDrive Convertible drops its center of gravity and reduces body roll, which improves handling and chassis balance while giving the car an aggressive but still driveway-friendly stance.
The progressive spring rate is increased roughly 10-20% over stock. During normal driving the springs preserve ride quality and comfort, then stiffen as they compress so the chassis stays composed when the road gets twisty. The lower ride height also reduces the car's wind-resistance profile.
H&R springs are built to be strong, resilient and more durable than ordinary automotive coil springs, and they will not settle or sag. Every spring is made from a special 54SiCr6 spring steel and shot-peened to increase life by more than 200%. All production is completed in-house, and each spring is 100% tested before leaving H&R's ISO 9001-certified facility in Germany.
SPECS
- Approximate front lowering: 1.2"
- Approximate rear lowering: 1.0"
- Progressive spring rate, increased approximately 10-20% over the stock springs
- Material: special 54SiCr6 spring steel
- Shot-peened to increase spring life by more than 200%
- Manufactured in-house by H&R in Germany; each spring 100% tested before shipping
- Quality assurance: TÜV and ISO 9001 certified
PARTS INCLUDED
- Complete kit as supplied by H&R Springs; see the installation instructions for the full bill of materials.
TECH RESOURCES
Required Extras
- None. H&R Springs specifies no additional hardware for this spring set.
- Spring compressor needed to disassemble the factory strut and shock assemblies (installer-supplied tool).
- Four-wheel alignment after installation, since changing ride height alters camber and toe (installer-supplied service).
- Professional installation by a qualified mechanic, as specified by H&R.
- This kit is listed for G14 M850i xDrive Convertible models equipped with adaptive suspension; contact Speed Logic to confirm your car's damper configuration before ordering.
Installation
- H&R Springs Technical Information and Installation Guide (PDF) - spring identification, ride height measurement, bumpstop trimming table and warranty notes.
VEHICLE APPLICATIONS
| Make / Model | Chassis | Engine | Years |
|---|---|---|---|
| BMW M850i xDrive Convertible | G14 | N63 4.4L Twin-Turbo V8 | 2019 |
No part number is shown because the H&R number for this application could not be confirmed against H&R's published catalog. Contact Speed Logic to confirm the exact part number and the model years covered before ordering.
