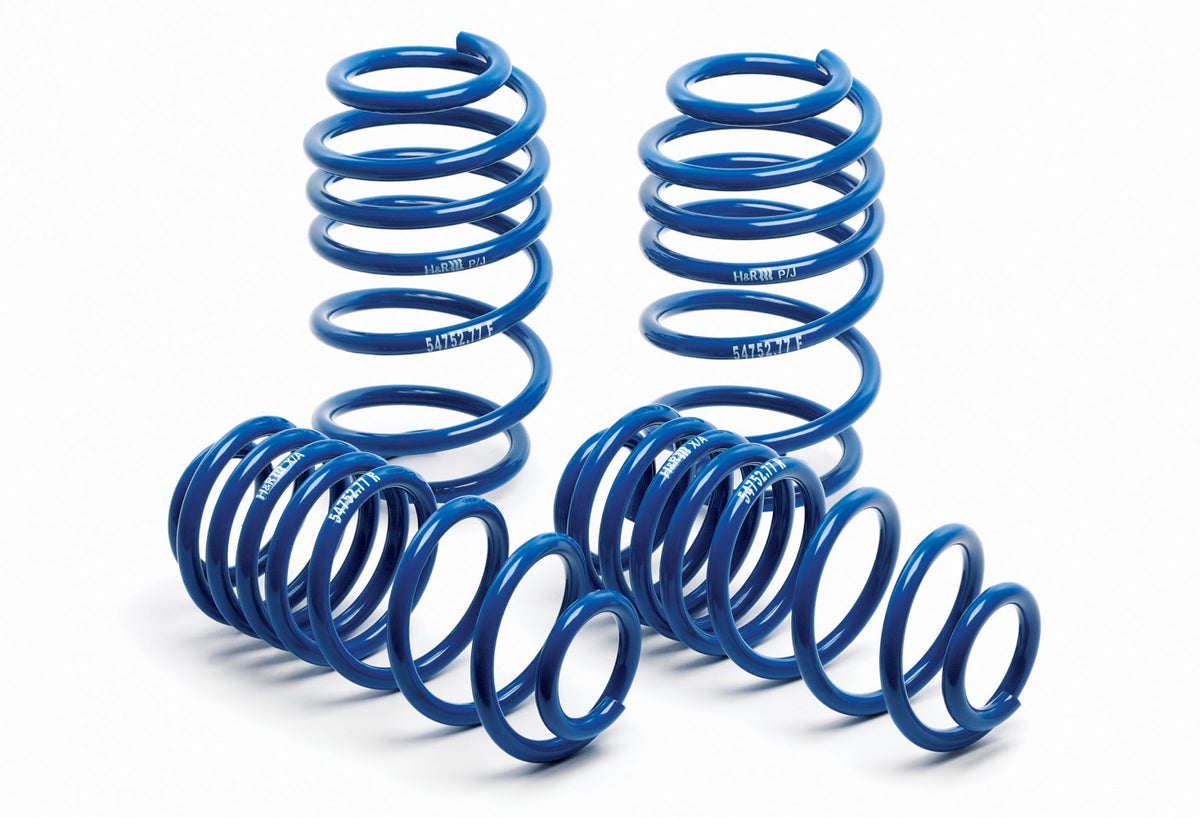

H&R Super Sport Spring – BMW M3 / M4 (F8x)

OVERVIEW

H&R Super Sport Springs take the F8x platform lower than the standard Sport Spring set, with an approximate 1.6" front and 1" rear drop. The lower center of gravity reduces body roll and improves handling and chassis balance, and the result is an aggressive stance for the M3 and M4.

The progressive spring rate design keeps the car composed when the road gets twisty while remaining usable on the street. Replacing the factory springs is one of the first steps in suspension tuning, and it works with the factory dampers.

H&R springs are made from a special 54SiCr6 spring steel and shot-peened to increase service life by more than 200%, so they are stronger and more durable than ordinary coil springs and will not settle or sag. All production is completed in-house, and every spring is 100% tested before it leaves the ISO9001-certified facility in Germany.

SPECS

• Approximate front lowering: 1.6"
• Approximate rear lowering: 1"
• Progressive spring rate design
• Lower ride height than the H&R Sport Spring set for the same chassis
• Designed for use with the factory dampers
• Material: 54SiCr6 spring steel
• Shot-peened to increase service life by more than 200%
• Will not settle or sag
• 100% tested before leaving the production facility
• TÜV and ISO9001 certified quality assurance
• Manufactured in-house by H&R in Germany

PARTS INCLUDED

• H&R Super Sport Spring set — front and rear springs
• Complete kit as supplied by H&R Springs; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. H&R Springs specifies no additional hardware for this spring kit.
• Four-wheel alignment after installation (installer-supplied service) — required any time ride height is changed.
• Professional installation — H&R specifies that its springs be installed by professional suspension mechanics only.
• Spring compressor (installer-supplied tool) — required to disassemble the factory struts on a spring-only kit.
• Confirm your car’s damper configuration (Adaptive M Suspension / EDC) with Speed Logic before ordering.

Installation

• H&R Springs Technical & Installation Information (PDF) — installation requirements, ride-height measurement procedure, bumpstop trimming table and alignment notes.

Notes

• The M2 Competition application is listed in the vendor fitment data but is not covered by the product title — confirm with Speed Logic before ordering for an F87.

PART NUMBER

• 28802-1
