HKS Carbon Brace with Graphite Design – Toyota GR Supra A90/A91

OVERVIEW

The HKS Carbon Brace for the GR Supra was co-developed with Graphite Design, the Japanese maker of carbon golf shafts used on the pro tour, and tested with racing driver Manabu Orido. Rather than simply making the chassis as stiff as possible, it uses a strong but deliberately flexible Japanese carbon shaft to produce a controlled "flex" that improves both handling and ride comfort. In HKS's testing the ride was smoother than with the factory brace.

The braces fit like original equipment. Compared with other braces, the HKS design adds a mounting point and an inner lid so it does not look like an add-on. The end brackets are machined aluminum with a clear anodized finish and a laser-engraved HKS logo, and the carbon gives the engine bay and rear cabin a premium look.

It is sold as a full front-and-rear set, or as front and rear sets separately. HKS evaluated and tuned the braces as a front-and-rear pair, so it recommends the full set; the separate front and rear sets are made to order.

SPECS

• Material: Japanese carbon fiber shaft co-developed with Graphite Design

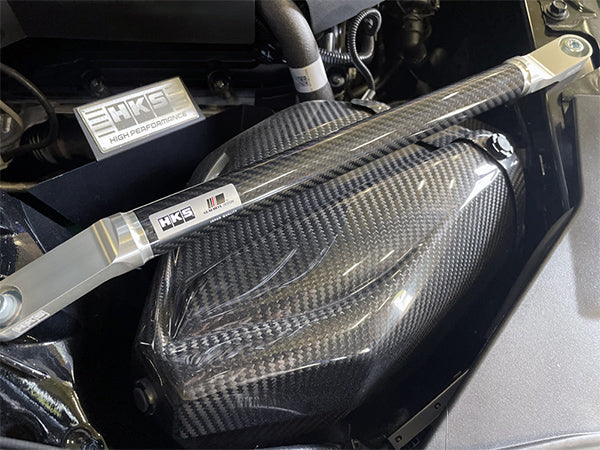

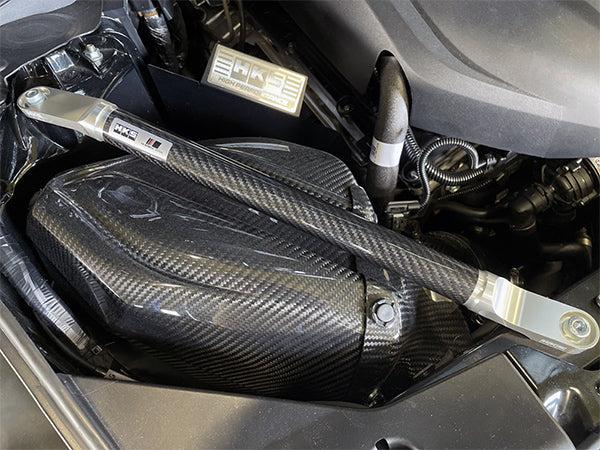

• Brackets: machined aluminum, clear anodized, laser-engraved HKS logo

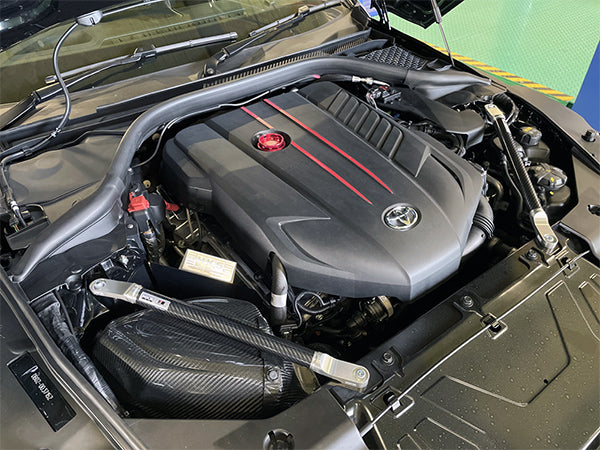

• Front set: one brace per side (two pieces) in the engine bay

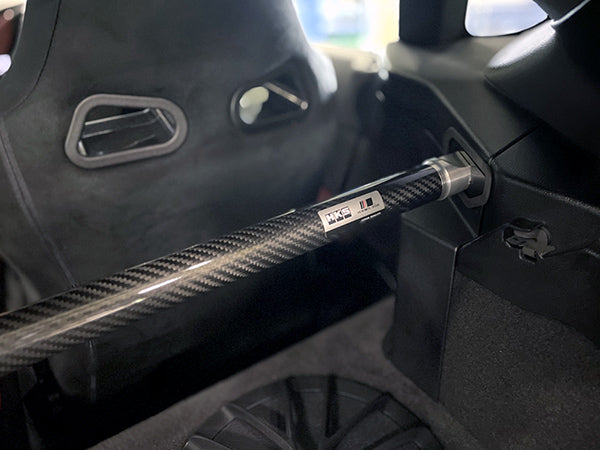

• Rear set: rear brace in the rear cabin area, with extra mounting point and inner lid
• Front and rear sets are made to order
• Made in Japan

PARTS INCLUDED

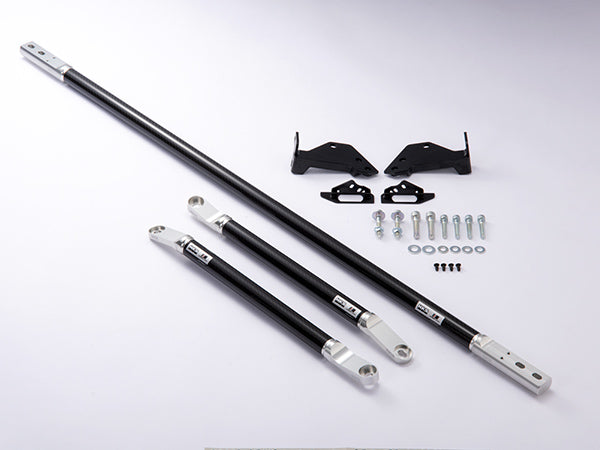

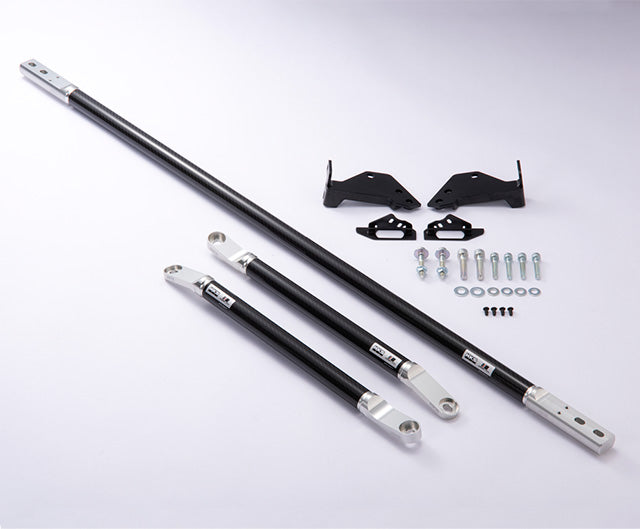

• 83001-AT001 Full Set: front carbon braces (left and right), rear carbon brace, mounting brackets and accessory parts

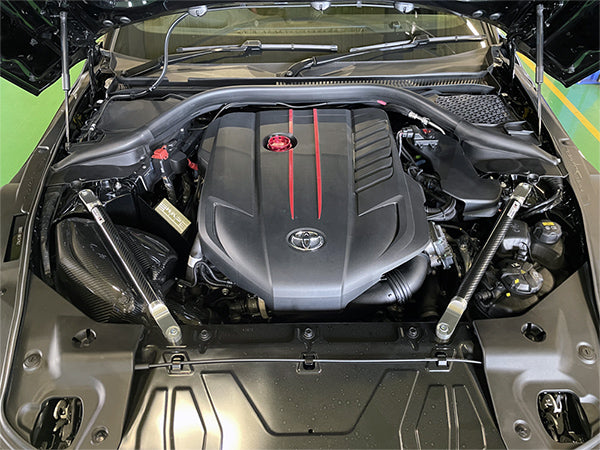

• 83001-AT002 Front Set: front carbon braces (left and right), brackets and hardware
• 83001-AT003 Rear Set: rear carbon brace, brackets and hardware

TECH RESOURCES

• Required extras: none. Everything needed to mount the braces is supplied.
• Factory brace: GR Supra 3.0 DB02 and DB06 cars have a factory aluminum brace in this position, which is removed when the HKS brace is installed.
• Installation manual, front set (HKS): 83001-AT002 Carbon Brace Front Set installation manual (PDF)
• Installation manual, rear set (HKS): 83001-AT003 Carbon Brace Rear Set installation manual (PDF)
• Full Set 83001-AT001: install using both manuals above.
• Pairs with: any of the HKS GR Supra suspension options — Hipermax S, Hipermax R or Hipermax Touring springs.
• Bolt-on; no alignment needed.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 83001-AT001 — HKS Carbon Brace GR Supra A9#, Full Set
• 83001-AT002 — HKS Carbon Brace GR Supra, Front Set
• 83001-AT003 — HKS Carbon Brace GR Supra, Rear Set
