HKS Hipermax S Coilovers – Toyota GR Supra A90/A91

OVERVIEW

Hipermax S is HKS's street coilover, and the one most GR Supra owners should start with. It replaces the factory dampers with a fully adjustable kit that rides better than stock on real roads while tightening up body control, and it lets you set the ride height you want rather than living with the factory gap.

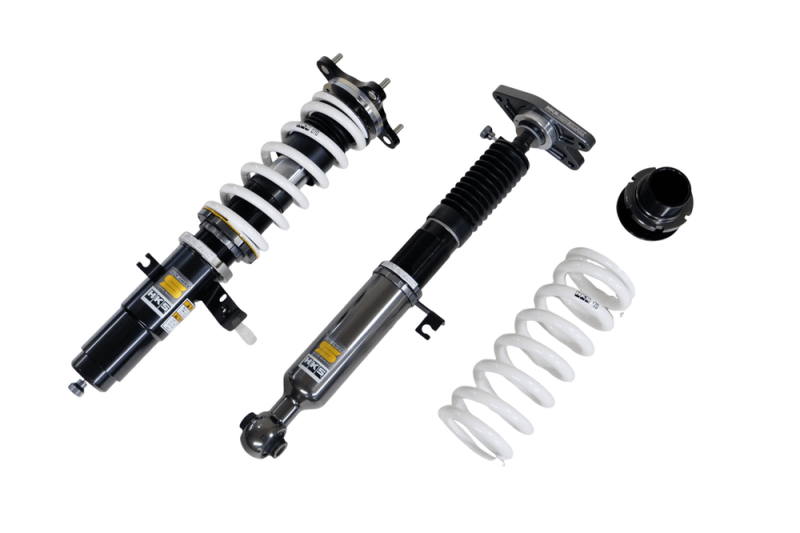

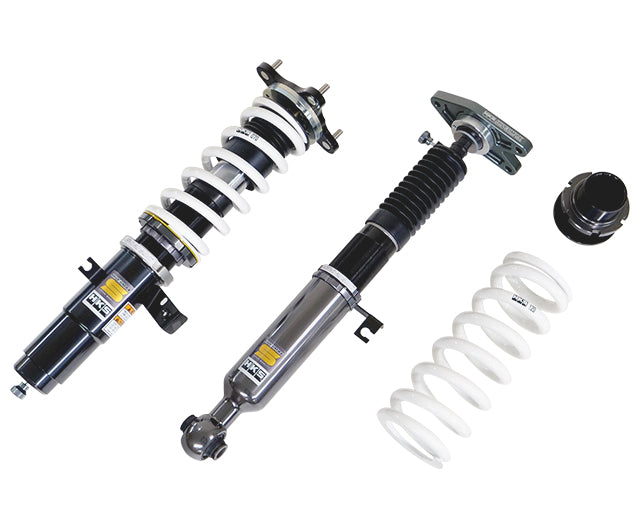

The front uses HKS's inverted strut with a spherical-bearing (pillowball) top mount, which keeps stroke at lowered heights and resists the bending loads a strut sees under braking and cornering. The rear separates the damper and spring and uses a rubber upper mount for comfort. Both ends have 30 clicks of damping adjustment and height-adjustable lower brackets, so ride height is set independently of spring preload. Straight-wound springs make rate changes easy. HKS's Dual PVS valving and improved bump stop rubber cut harshness at higher piston speeds without blunting response.

The kit comes in two versions. 80330-AT023P is the coilover kit alone. 80330-AT023CP adds the HKS Suspension Error Canceler, which cars with the factory electronically controlled (adaptive) dampers need to avoid a dash fault once those dampers come out. These 80330-series part numbers replace the earlier 80300-AT023 and 80300-AT023C.

SPECS

• Type: full coilover kit, four corners
• Front: inverted strut, coilover layout, spherical-bearing (pillowball) upper mount
• Rear: normal damper, separated damper and spring, rubber upper mount
• Damping adjustment: 30 steps front and rear
• Height-adjustable lower brackets: front and rear
• Spring rates: front 69 N/mm (7 kgf/mm), rear 118 N/mm (12 kgf/mm)
• Spring free length: front 200 mm, rear 250 mm, straight
• Spring rate change at factory: possible (front ±10 N/mm, rear ±20 N/mm recommended range)
• Valving: HKS Dual PVS (dual preload valve system)
• 80330-AT023CP: Suspension Error Canceler included
• Made in Japan

PARTS INCLUDED

• 80330-AT023P: two front inverted coilover struts with pillowball top mounts, two rear dampers with rubber upper mounts, front and rear springs, height-adjustable lower brackets, hardware and HKS installation manual
• 80330-AT023CP: everything in 80330-AT023P plus the HKS Suspension Error Canceler (45012-AT001)

TECH RESOURCES

• Required extra for 80330-AT023P on cars with factory adaptive dampers: HKS Suspension Error Canceler 45012-AT001, sold separately. Or choose 80330-AT023CP, which already includes it. Do not buy both.
• 2.0 cars with conventional dampers (DB82): choose 80330-AT023P; no canceler is needed. 80330-AT023CP is not listed for DB82.
• Required after install: a full four-wheel alignment.
• Installation manual, 80330-AT023P (HKS): 80330-AT023P Hipermax S installation manual (PDF)
• Installation manual, 80330-AT023CP (HKS): 80330-AT023CP Hipermax S with canceler installation manual (PDF)
• Installation notes: professional installation recommended. Corner-by-corner damper replacement on a lift; set ride height at the lower brackets before final torque, then align the car.
• Keep your adaptive dampers instead? See the HKS Hipermax Touring height-adjustable springs. For more track focus, see the HKS Hipermax R.
• Optional: pair with the HKS Carbon Brace.
• ADAS: HKS warns that Toyota Safety Sense may malfunction when the car is lowered, because the radar and camera aim and the alignment center shift. Have the calibration checked after install.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 80330-AT023P — HKS Hipermax S Full Kit, front pillowball, Toyota GR Supra (replaces 80300-AT023)
• 80330-AT023CP — HKS Hipermax S Full Kit with Suspension Error Canceler, Toyota GR Supra (replaces 80300-AT023C)
