OVERVIEW

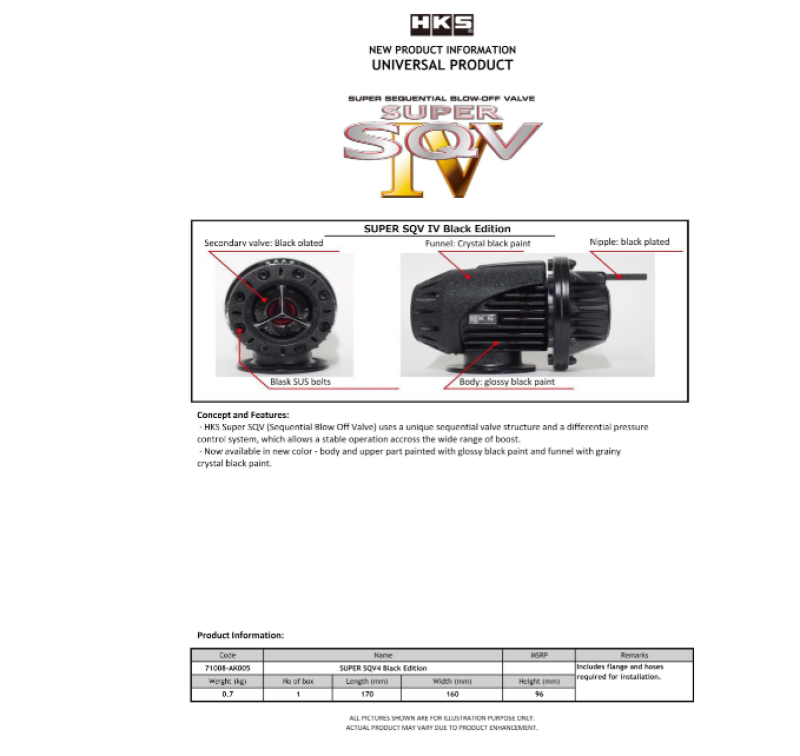

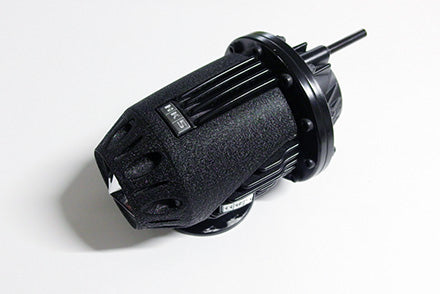

The Super SQV4 Black Edition is HKS's universal sequential blow-off valve in a stealth finish: gloss black body and upper, with a grainy crystal-black funnel. Internally it is the same valve as the silver Super SQV4 71008-AK001.

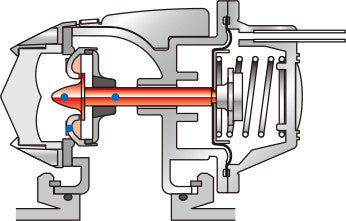

The SQV uses HKS's sequential dual-valve layout with differential-pressure control. Lift off the throttle and a small primary valve opens instantly for the first release; as the pressure difference peaks it pulls the larger secondary valve open for the main discharge. Because it is a pull-type valve, rising boost pushes the valves harder shut, so it does not leak at high boost and needs no spring-preload tuning for your boost level — it works on anything from a stock turbo car to a heavily tuned one. A triple fin in the funnel produces the signature HKS sound.
This is the universal kit: the valve and the small parts needed to plumb it. Mounting it to a car that wasn't designed for it requires an SQV flange on the charge pipe.
SPECS
- Type: pull-type sequential blow-off valve, primary and secondary valves

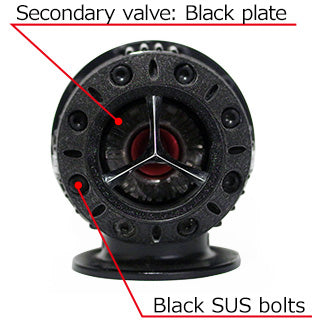

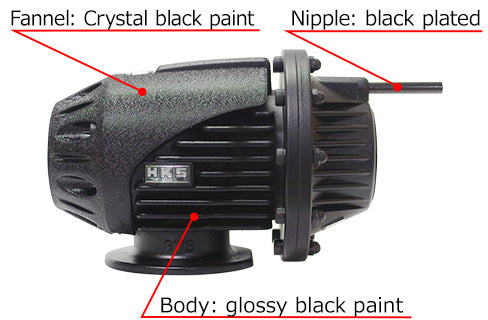

- Body: aluminum die-cast, gloss black; funnel: grainy crystal black
- Secondary valve: die-cast metal
- Triple fin funnel (optional HKS Round Fin available for sound tuning)
- Works across the full boost range without spring adjustment
- Vents to atmosphere; recirculation possible with a vehicle-specific HKS return kit
- Made in Japan
PARTS INCLUDED
- Super SQV4 Black Edition valve unit
- O-ring and C-ring
- T-fitting φ6 × φ4 × φ6 and T-fitting φ4 × φ4 × φ4
- Vacuum line air filter and tie wraps
TECH RESOURCES
- Required extras: an HKS SQV flange welded or clamped to your charge pipe, plus a boost/vacuum reference line. The flange is not included. BMW N54 owners can use an Evolution Racewerks HKS-flange charge pipe kit. GR Supra 3.0 owners should buy the bolt-on HKS Super SQV4 GR Supra kit instead.
- Installation manual (HKS): 71008-AK005 Super SQV4 Black Edition installation manual (PDF)
- Silver version: HKS Super SQV4 Universal 71008-AK001.
- No CARB EO is published — off-road / competition use only in California.
- Price is for the item only; labor is not included.
PART NUMBER
- 71008-AK005 — HKS Super SQV4 Black Edition Universal Assembly
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Universal | Turbocharged vehicles with an SQV flange on the charge pipe | Universal | Turbocharged gasoline | Universal |
