Injen Evolution Cold Air Intake – BMW 228i / 328i / 428i (N20, F22 / F30 / F32)

OVERVIEW

The EVO1103 is Injen's Evolution sealed cold air intake for the N20-powered BMW. It was designed using current engineering tools and techniques, and the sealed housing encloses an Injen SuperNano-Web dry air filter for strong airflow and added performance. The kit ships with all the hardware needed for a straightforward installation.

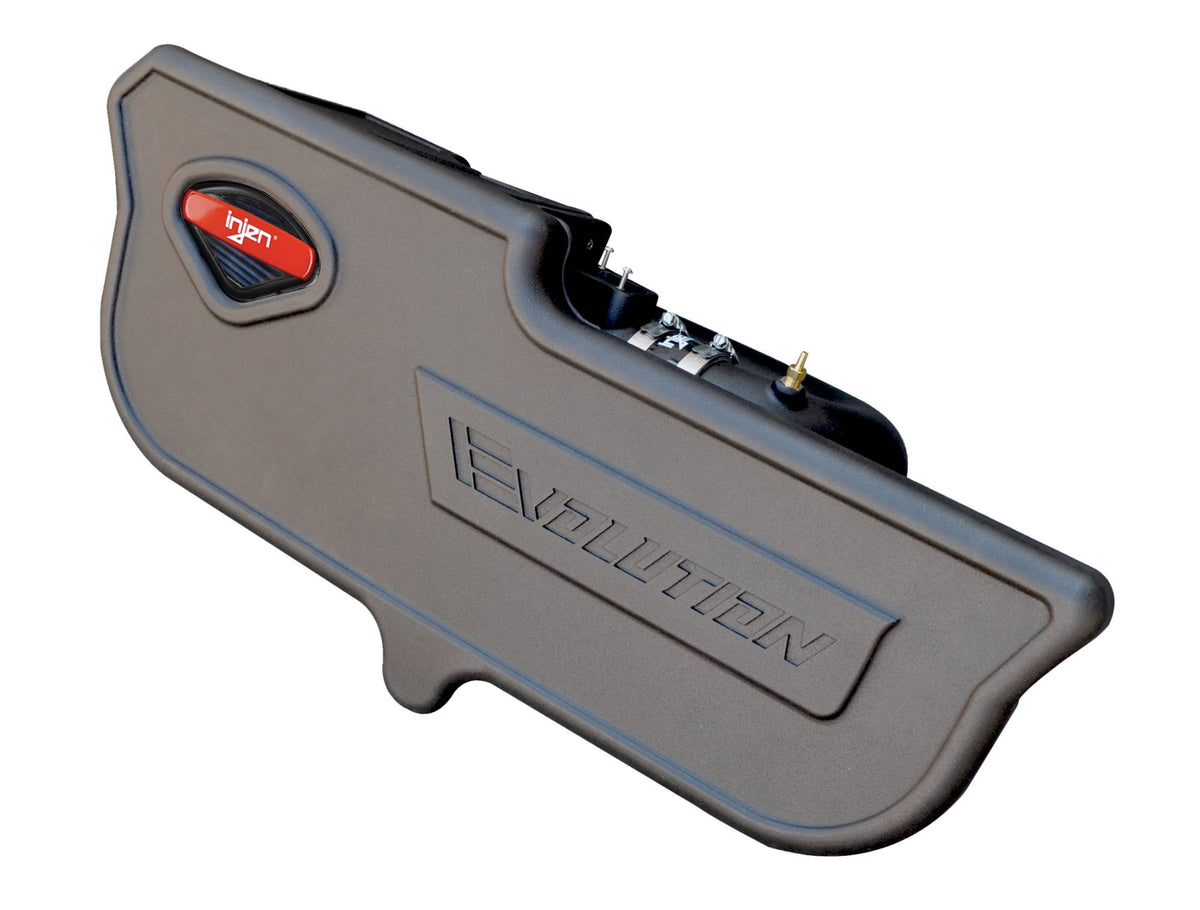

The two-piece roto-molded housing carries the Injen Midnight Edition badge for a cleaner, more aggressive under-hood appearance, and the roto-molded intake tube is custom designed and dyno-tuned to produce power while retaining a clean, quality fit. The SuperNano-Web dry filter is built to increase flow while keeping servicing simple.

Hardware quality is consistent throughout, from the stainless steel band clamps with an inner protective liner to the reinforced automotive-grade silicone couplers. After design work and dyno testing, Injen rates the EVO1103 at up to 15 additional horsepower and 17 lb-ft of torque.

SPECS

• Evolution series sealed cold air intake
• Dyno-proven gains of up to 15 hp and 17 lb-ft of torque
• Retains the OEM mass air flow sensor
• Two-piece roto-molded polyethylene housing with Midnight Edition badge
• Roto-molded, dyno-tuned intake tube
• Fully serviceable Injen SuperNano-Web dry air filter
• Replacement air filter part number X-1105-BB
• Reinforced automotive-grade silicone couplers
• Stainless steel band clamps with inner protective liner
• Shipping weight 9.0 lb; package 17" W x 13" H x 34" L
• Does not fit convertible models
• Not CARB exempt
• Made in Pomona, California, USA

PARTS INCLUDED

• 1 x roto-molded intake tube (#15119)
• 1 x roto-molded plenum (#15118)
• 1 x roto-molded airbox (#15117)
• 1 x dry air filter (#1105)
• 1 x 3.5" straight hose (#3037)
• 2 x #56 clamps (#4005)
• 2 x M4 button head screws (#6072)
• 1 x 1/8" NPT 1/8" OD fitting (#8052)
• 4 x M6 x 20mm screws (#6100)
• 4 x rubberized washers (#8047)
• 1 x small window (#15139)
• 2 x push nuts (#6109)
• 1 x 1/8" NPT cap (#8054)

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware for this part.
• Installer-supplied: metric socket and wrench set, flat-blade screwdriver, and a torque wrench.
• Optional service items: replacement SuperNano-Web dry filter X-1105-BB and an Injen dry filter cleaning kit.

Installation

• Injen EVO1103 installation instructions (PDF)

Notes

• Note: This product is not currently CARB exempt. Injen restricts shipment of this part to CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT and WA.
• The previous listing quoted 14 hp and 15 lb-ft. Injen's official figures for the EVO1103 are up to 15 hp and 17 lb-ft, which are used above. Injen also states this kit does not fit convertible models — confirm fitment with Speed Logic if you are unsure of your chassis code.

PART NUMBER

• EVO1103
