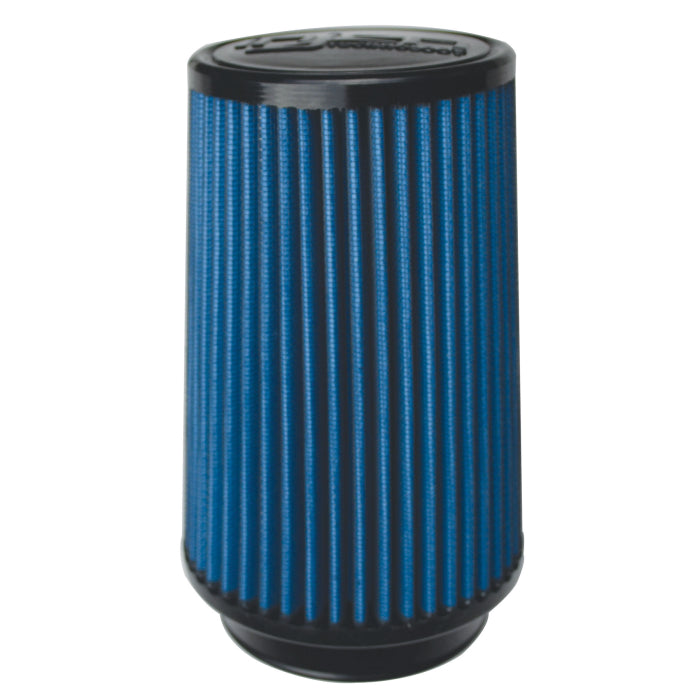

Injen X-1105 Replacement Air Filter – SP1123 / EVO1103 Intakes (BMW N20 / B46 / B48)

OVERVIEW

The Injen X-1105 is the replacement air filter for the Injen SP1123 and EVO1103 intakes. Fit it at service time to restore the airflow and filtration of the original element.

The X-1105-BB uses Injen's SuperNano-Web dry synthetic media — no oil and no risk of oil migrating onto a hot-film MAF sensor. Wash it in warm water, let it dry and refit it.

SPECS

• Base outside diameter: 4.70"
• Media height: 6.90"
• Top outside diameter: 4.00"
• Overall height: 8.05"
• X-1105-BB media: SuperNano-Web dry synthetic, washable, no oiling
• Fits Injen intakes: SP1123 / EVO1103

PARTS INCLUDED

• 1 x Injen X-1105 replacement air filter (SuperNano-Web dry)

TECH RESOURCES

Additional Parts Required

• None. The dry X-1105-BB needs only warm water at service; do not oil it.

Installation

• Injen SP1123 Installation Instructions (PDF)
• Injen EVO1103 Installation Instructions (PDF)
• Fits the Injen SP Cold Air Intake SP1123 – BMW 230i / 330i / 430i (B46 / B48)
• Fits the Injen Evolution Cold Air Intake – BMW 228i / 320i / 328i / 428i (N20 / N26, F22 / F3x)
• Remove the old element, fit the new one to the same flange and check the clamp is seated.

PART NUMBER

• X-1105-BB
