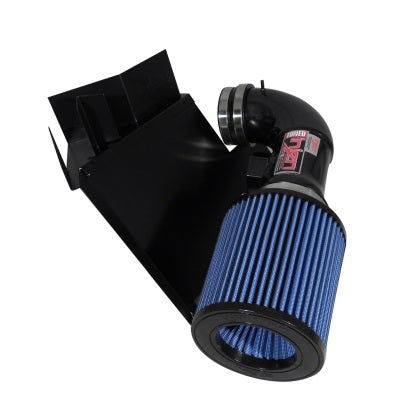

Injen Short Ram Intake (Black) – BMW 128i / 328i (N52)

OVERVIEW

The SP series is Injen Technology's flagship traditional aluminum intake line. Injen produced the world's first tuned air intake system and holds four patents covering the intake tuning process, including MegaRam (MR) Technology (patents 7,359,795 and 7,669,571) and Air Fusion (patent 7,721,669). Both are built into this SP1121 short ram system for the N52-powered BMW 1 and 3 Series.

The heart of the kit is a mandrel-formed 6061-T6 aluminum intake tube that gives the engine a smooth, uninterrupted path to the throttle body in place of the restrictive factory airbox. Injen developed the tube geometry on the dyno to deliver up to 12 horsepower and 11 lb-ft of torque while holding a safe air/fuel ratio across the whole power band, so no additional tuning is required. A custom heat shield built specifically for this application keeps the filter separated from underhood heat.

Air is drawn through a fully serviceable Injen SuperNano-Web dry filter, which adds filtration surface area for greater airflow without an oiled media. The result is a noticeably more aggressive intake tone under full throttle. This kit is made in Pomona, California and carries the Injen Technology Limited Lifetime Warranty.

SPECS

• Series: Injen SP short ram air intake system
• Dyno-proven gains of up to 12 hp and 11 lb-ft of torque
• Intake tube: 6061-T6 aluminum, black finish
• Injen offers this intake in multiple finishes
• Filter: Injen SuperNano-Web dry air filter, 3.5" inlet, fully serviceable
• Replacement air filter part number X-1021-BB
• Optional Hydro-Shield pre-filter part number 1037BLK or 1037RED
• Includes an application-specific custom heat shield
• Features Injen's patented MegaRam (MR) Technology
• Features Injen's patented Air Fusion Technology
• Maintains factory air/fuel ratios; no additional tuning required
• CARB EO # D-476-8
• CARB EO # D-476-8 applies only to the 2006 BMW 325i/xi, 2006 BMW 330i/xi, 2007–2011 BMW 328i/xi and 2008–2011 BMW 128i
• CARB EO # excludes all SULEV vehicles, including emissions test groups 7BMXV03.0N51, 8BMXV03.0N51, 9BMXV03.0N51, ABMXV03.051R and BBMXV03.051R
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• 1 x Intake tube
• 1 x 3.5" SuperNano-Web nanofiber dry filter (#1021)
• 1 x 3.25" x 3.50" step hose (#3140)
• 1 x Heat shield (#11041)
• 1 x Rubber bulb trim, 8.5" length (#6058)
• 2 x #56 hose clamps (#4005)
• 2 x M4 x 16 mm button head screws (#6072)
• 2 x M6 flange nuts
• 1 x 5 mm vacuum cap
• 1 x 6-page instruction sheet

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware, tuning or fluids for this intake — all required mounting hardware is supplied in the kit.
• Installer-supplied tools: metric socket and wrench set, flat and Phillips screwdrivers, a trim panel tool and a torque wrench.
• Optional service items: Injen replacement dry air filter X-1021-BB, Injen Hydro-Shield pre-filter 1037BLK or 1037RED, and an Injen dry-filter cleaning kit.

Installation

• Injen SP1121 Installation Instructions (PDF)

Notes

• sl-note: Fitment years above follow Injen's official application listing, which extends coverage to 2013 for the 128i and 328i/328xi. The CARB EO # D-476-8 exemption covers a narrower range of years and excludes all SULEV vehicles — check your emissions test group before ordering for a California-registered car.

PART NUMBER

• SP1121BLK — black finish

VEHICLE APPLICATIONS
