Injen Short Ram Intake (Wrinkle Black) – BMW N55 (F2x / F3x / F87)

OVERVIEW

The SP series is Injen Technology's flagship traditional aluminum intake line. Injen produced the world's first tuned air intake system and holds four patents covering the intake tuning process, including MegaRam (MR) Technology (patents 7,359,795 and 7,669,571) and Air Fusion (patent 7,721,669). The SP1128 applies that development work to the N55 3.0L turbo six.

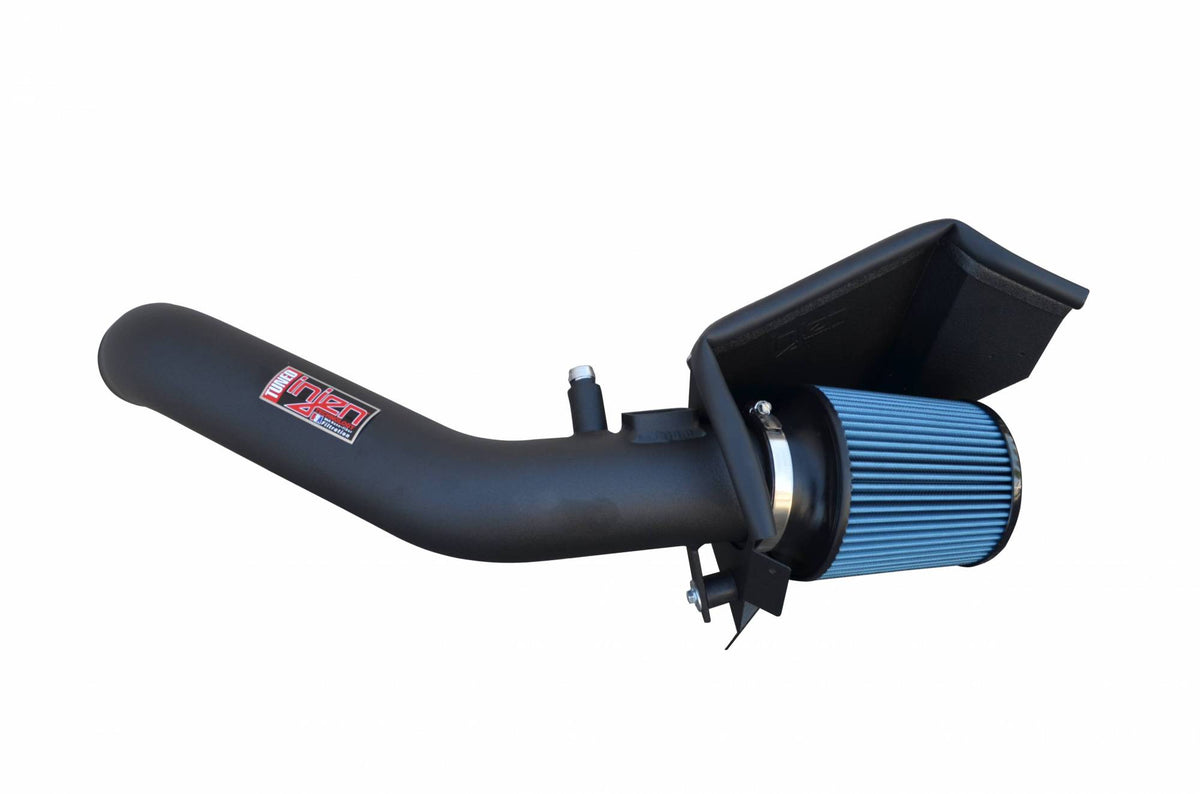

The system replaces the restrictive factory airbox with a 6061-T6 aluminum intake tube that gives the turbo a smooth, uninterrupted path to the compressor inlet. A custom heat shield with a matching cover is built specifically for this chassis, keeping the filter isolated from radiant underhood heat. Injen developed the intake on the dyno for gains of up to 13 horsepower and 11 lb-ft of torque while holding a safe air/fuel ratio across the power band, so no additional tuning is required.

Air is drawn through a fully serviceable Injen SuperNano-Web dry filter, which adds filtration surface area for greater airflow without an oiled media. The textured wrinkle black finish gives a stealth look under the hood, and the system delivers an aggressive, throaty tone under full throttle. Made in Pomona, California and backed by the Injen Technology Limited Lifetime Warranty.

SPECS

• Series: Injen SP short ram air intake system
• Dyno-proven gains of up to 13 hp and 11 lb-ft of torque

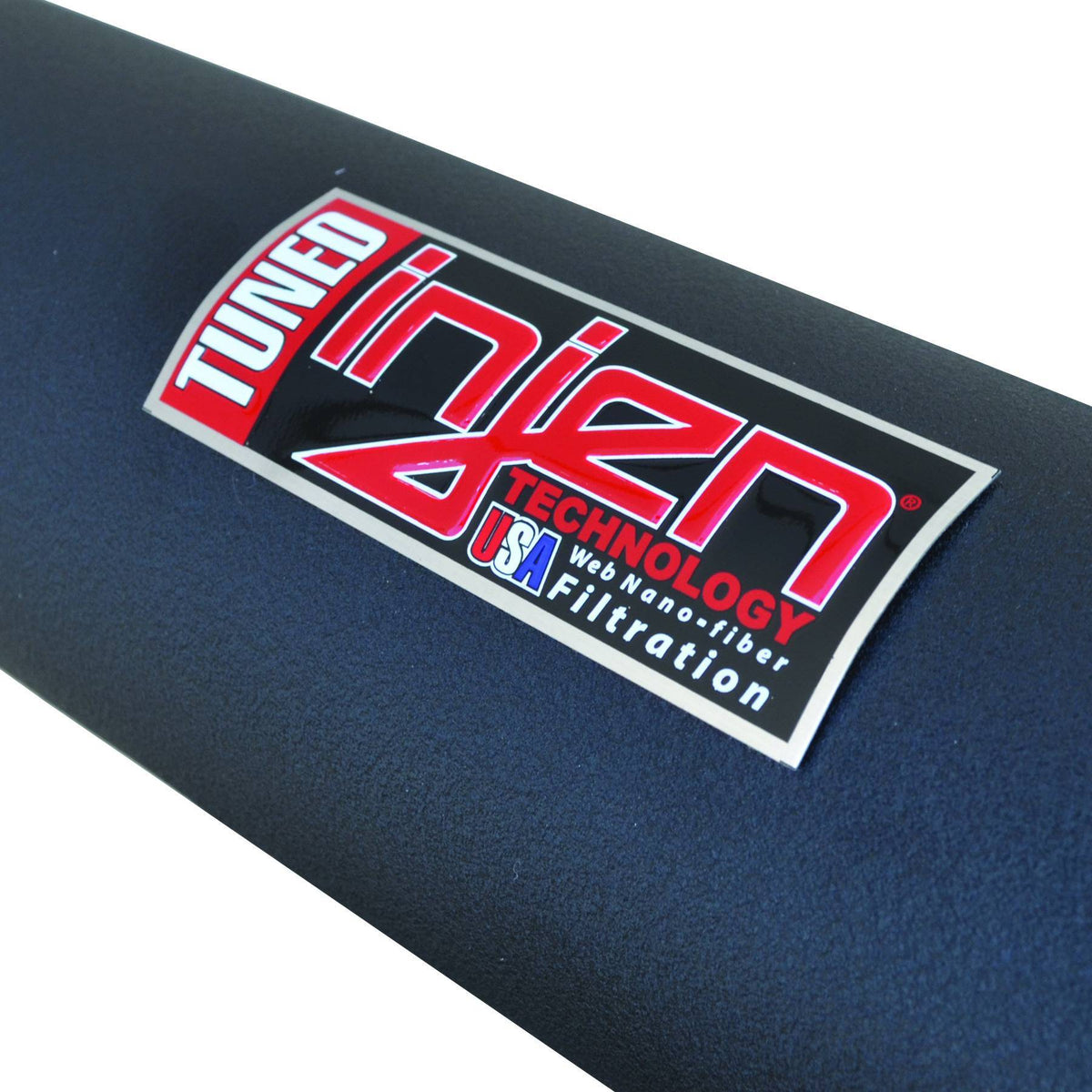

• Intake tube: 6061-T6 aluminum, wrinkle black finish
• Also offered by Injen in polished finish
• Filter: Injen SuperNano-Web dry air filter, 3.50" inlet, fully serviceable
• Replacement air filter part number X-1021-BB
• Includes an application-specific custom heat shield with cover
• Maintains factory air/fuel ratios; no additional tuning required
• Not CARB exempt — not legal for sale or use on pollution-controlled vehicles in California
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• 1 x Intake tube
• 1 x 3.50" SuperNano-Web nanofiber dry filter
• 1 x Heat shield
• 1 x M6 Vibra-mount
• 3 x M6 nuts
• 3 x Fender washers
• 1 x M6 x 16 mm hex cap screw
• 2 x M4 button head screws
• 1 x M6 stand-off stud
• 1 x Rubber trim, 13.5" length
• 1 x Rubber bulb trim, 8.5" length
• 1 x Rubber bulb trim, 19" length
• 1 x Vinyl cap (manual transmission only)
• 1 x 10-page instruction sheet

TECH RESOURCES

Additional Parts Required

• None. All mounting hardware is included and no tune is required.
• Optional service part: Injen replacement air filter X-1021-BB (dry) or X-1021-BR (oiled).

Installation

• Injen SP1128 Installation Instructions (PDF)

Notes

• Transmission: Some Injen catalog data lists this kit as automatic transmission only. If your car is a manual, contact Speed Logic to confirm fitment before ordering.
• This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.
• Does not fit the E82 135i/M135i. Confirm your chassis code before ordering.

PART NUMBER

• SP1128WB — wrinkle black finish (this listing)
• Polished finish — SP1128P
