Product details
OVERVIEW

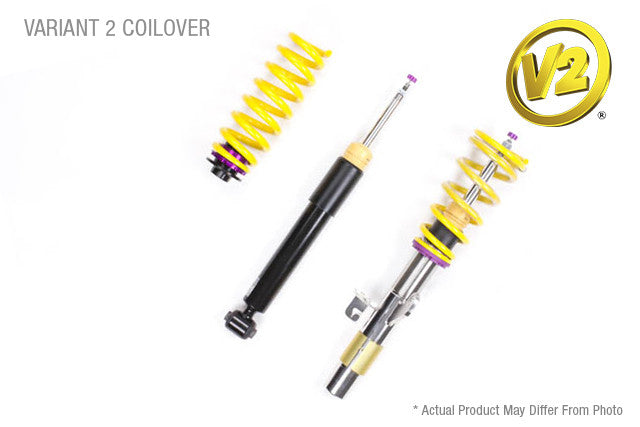

The KW Variant 2 coilover system is aimed at the experienced driver who wants to set both the ride height and the damping character of the car. On top of the continuously adjustable ride height, the Variant 2 adds infinitely adjustable rebound damping, which is what governs the pitch and roll behavior of the car — wind it up for a tighter, flatter platform, back it off for a more compliant ride.
As with every KW coilover, inox-line stainless steel technology is included at no extra charge and the adjustment parameters are German TÜV tested. Comprehensive KW documentation is supplied so the kit can be set up correctly.
SPECS
- Front lowering range: 1.2 in – 2.1 in (30–55 mm)
- Rear lowering range: 0.9 in – 2.0 in (25–50 mm)
- Damping: infinitely adjustable rebound
- Strut housings: inox-line stainless steel technology, included at no additional charge
- Height adjustment: individually adjustable
- German TÜV-tested adjustment parameters
- High-quality components specified for long service life
PARTS INCLUDED
- Complete KW Variant 2 coilover kit as supplied by KW.
- KW installation documentation and parts certificate.
- See the KW installation instructions supplied with the kit for the full bill of materials.
TECH RESOURCES
Additional Parts Required
- Four-wheel alignment — a full four-wheel alignment is mandatory after installation and after any subsequent ride-height change.
- Professional installation — KW specifies fitment by a qualified suspension shop; installation at a KW specialist dealer is also what qualifies the kit for KW's extended warranty coverage.
- Tire-to-strut and fender clearance check — verify clearance at full lock and full compression, particularly with aftermarket wheel and tire packages.
- Ride-height sensor handling — cars fitted with headlight-leveling or adaptive-damper ride-height sensors require the sensor links to be relocated or adapted to the new ride height per KW's instructions.
- Installer-supplied tools: spring compressor, torque wrench, and the standard BMW suspension service tools.
Installation
- KW supplies vehicle-specific printed installation instructions and a parts certificate (Teilegutachten) in the box with every kit.
- Speed Logic offers professional installation — contact us to schedule an install.
PART NUMBER
- 15220062
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | 1 Series 135i Convertible | E88 | N54 3.0L Twin-Turbo I6 | 2008–2010 |
| BMW | 1 Series 135is Convertible | E88 | N54 3.0L Twin-Turbo I6 | 2013 |
