KW Coilover Kit Variant 3 (V3) 2-Way Adjustable – BMW 840i / M850i xDrive (G14 / G15)

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

The stock damper is the limiting part on the G1X 8 Series. Factory valving is a single fixed compromise and the ride height is whatever the car left the line at. The V3 replaces the whole strut with a rebuildable, height-adjustable, damping-adjustable unit.

This listing covers the 840i xDrive and M850i xDrive (G14/G15/G16) with 352200CE, KW's V3 Bundle for this chassis, which ships with the KW ESC/EDC cancellation module for the factory adaptive dampers.

SPECS

• 2-way adjustable damping: independent compression and rebound
• Continuously adjustable ride height
• Bundle kit, supplied with the KW ESC/EDC cancellation module, deleting the factory adaptive dampers without fault codes

PARTS INCLUDED

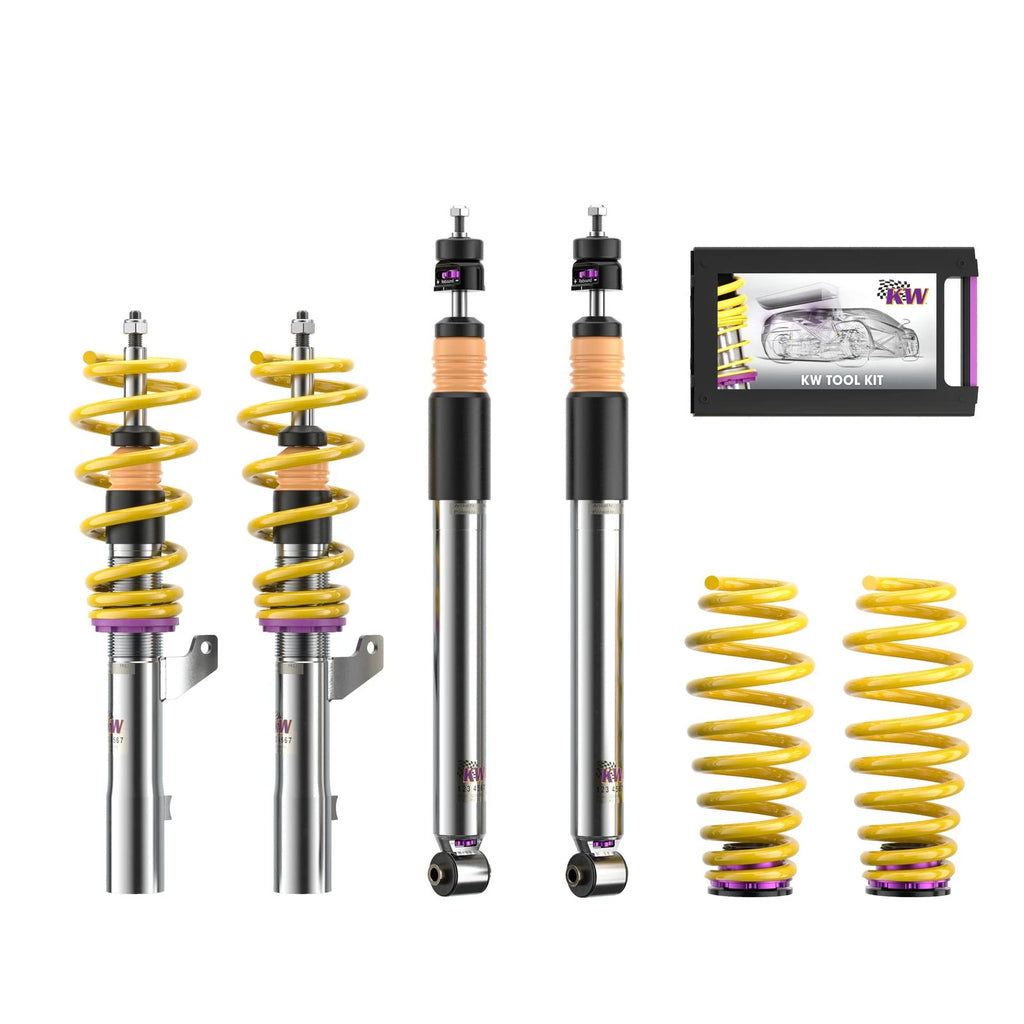

• Front and rear KW Variant 3 coilover units with matched springs
• KW ESC/EDC cancellation module included
• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• 352200CE is a Bundle kit and already includes the ESC/EDC cancellation module; no separate module purchase is needed.
• A corner-balance and a full four-wheel alignment are required after installation, and matter even more on an AWD car. Budget for both before the car is driven.

Installation

• Installation instructions (352200CE): PDF.
• Setup manual (352200CE): PDF.
• In brief: full strut-out replacement front and rear, the ESC module plugged into the OE damper connectors, ride height set inside KW's published range, then corner-balance and alignment.

Notes

• Price is for the item selected only; labor is not included.
• KW's own fitment chart for 352200CE covers the G14 Convertible and G15 Coupe body styles only — 840i xDrive 2020–2026 and M850i xDrive 2019–2026. The G16 Gran Coupe is not listed for this part number (KW-authorized dealers show it under a separate part number, 352200EA), so G16 has been removed from this table and the 840i xDrive start year corrected from 2019 to 2020. Checked against KW's fitment chart on 2026-09-03.

PART NUMBER

• 352200CE — V3 Bundle, BMW 840i / M850i xDrive G14 / G15 / G16

VEHICLE APPLICATIONS
