KW Coilover Kit Variant 3 (V3) 2-Way Adjustable (EDC) – BMW 228i / 230i / M235i / M240i xDrive (F22)

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

The stock damper is the limiting part on these xDrive 2 Series cars. Factory EDC valving is a single fixed compromise and the ride height is whatever the car left the line at. The V3 replaces the whole strut with a rebuildable, height-adjustable, damping-adjustable unit.

This listing covers the xDrive F22 2 Series coupe — 228i, 230i, M235i and M240i — with 3522000N, KW's V3 kit for this chassis/drivetrain, which ships with the KW EDC cancellation module required to deactivate the factory adaptive dampers.

SPECS

• 2-way adjustable damping: independent compression and rebound
• Continuously adjustable ride height — front 0.2–1.4 in, rear 0–1.2 in depending on model year
• Supplied with the KW EDC cancellation module, deleting the factory adaptive dampers without fault codes

PARTS INCLUDED

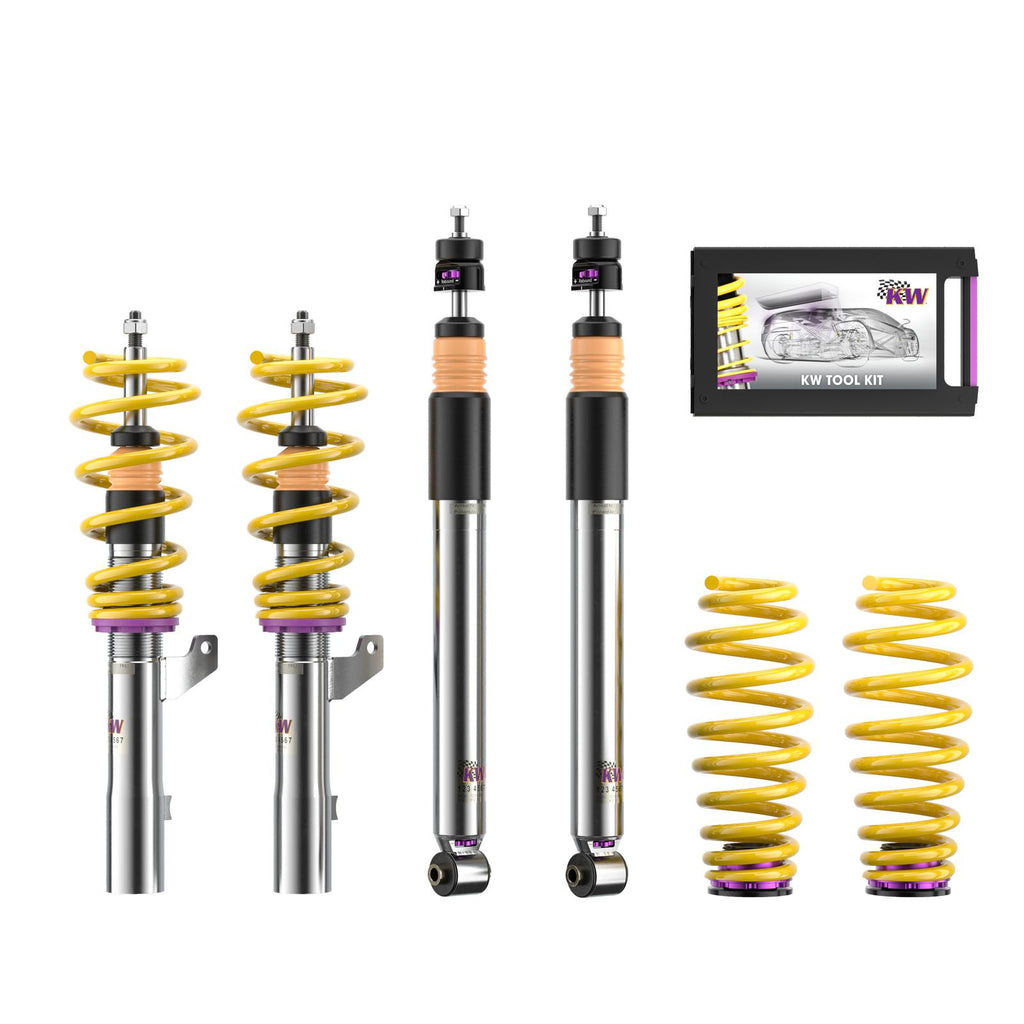

• Front and rear KW Variant 3 coilover units with matched springs
• KW EDC cancellation module included
• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• 3522000N already includes the EDC cancellation module; no separate module purchase is needed.
• A corner-balance and a full four-wheel alignment are required after installation, and matter even more on an AWD car. Budget for both before the car is driven.
• Wheel offset spacers may be required if reusing factory wheels and tires (per KW's own fitment notes).

Installation

• Installation instructions (3522000N): PDF.
• Setup manual (3522000N): PDF.
• In brief: full strut-out replacement front and rear, the EDC cancellation module plugged into the OE damper connectors, ride height set inside KW's published range, then corner-balance and alignment.

Notes

• F22 xDrive 2 Series coupe only. KW's own fitment data does not list an F23 (2 Series Convertible) application for this part number, so it is not included here.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 3522000N — V3, BMW F22 xDrive, with EDC
