KW Coilover Kit Variant 3 (V3) 2-Way Adjustable – BMW M240i xDrive (G42)

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

The stock damper is the limiting part on the G42 M240i xDrive. Factory valving is a single fixed compromise and the ride height is whatever the car left the line at. The V3 replaces the whole strut with a rebuildable, height-adjustable, damping-adjustable unit.

This listing covers the M240i xDrive (G42) specifically. Match the part number to your car's damper hardware, not just its badge: 352200DM is KW's Bundle, shipping with the ESC/EDC cancellation module, and is the one to buy if your car has factory EDC; 352200DK is for cars without it.

SPECS

• 2-way adjustable damping: independent compression and rebound
• Continuously adjustable ride height
• 352200DM (Bundle) is supplied with the KW ESC/EDC cancellation module, deleting the factory adaptive dampers without fault codes

PARTS INCLUDED

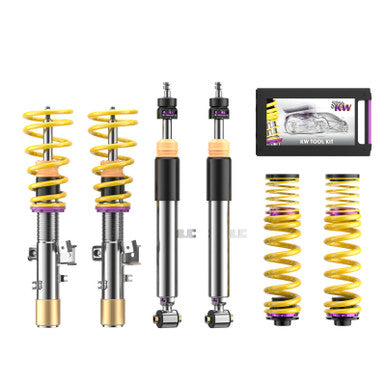

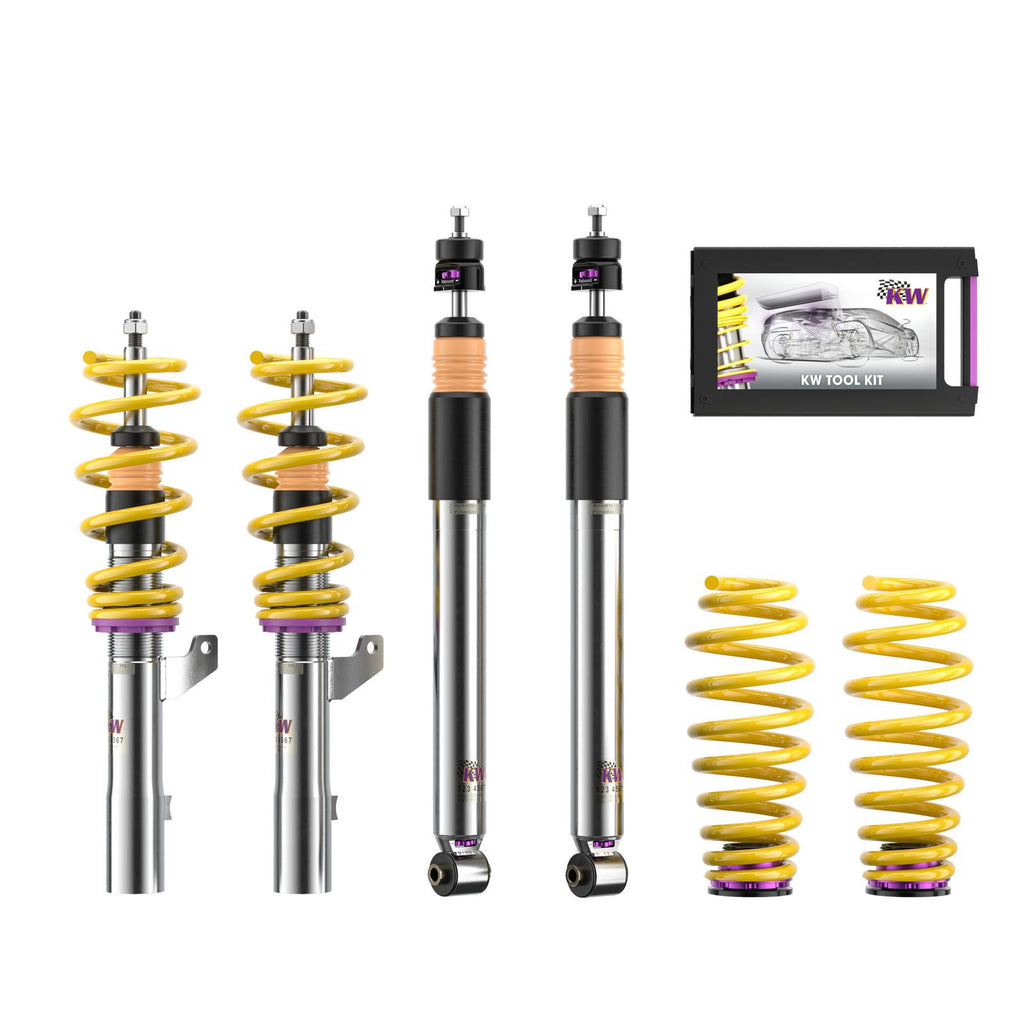

• Front and rear KW Variant 3 coilover units with matched springs
• KW ESC/EDC cancellation module included on 352200DM
• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• A car with factory EDC fitted with the non-Bundle kit (352200DK) requires a matching KW ESC cancellation module — contact us to confirm compatibility, since KW's published module list for our store does not currently cover this platform by itself.
• A corner-balance and a full four-wheel alignment are required after installation, and matter even more on an AWD car. Budget for both before the car is driven.

Installation

• Installation instructions (352200DK / 352200DM): PDF.
• Setup manual (352200DK / 352200DM): PDF.
• In brief: full strut-out replacement front and rear, the ESC module plugged into the OE damper connectors on 352200DM, ride height set inside KW's published range, then corner-balance and alignment.

Notes

• Price is for the item selected only; labor is not included.

PART NUMBER

• 352200DK — V3 kit, BMW M240i xDrive G42 without EDC
• 352200DM — V3 Bundle, BMW M240i xDrive G42 with EDC

VEHICLE APPLICATIONS
