KW Coilover Kit Variant 3 (V3) Bundle 2-Way Adjustable (EDC) – BMW 430i xDrive / M440i xDrive (G22)

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

352200DA is KW's Bundle configuration for the G22 4 Series coupe platform: it ships with the KW ESC/EDC cancellation module built in, so it is the correct kit for a 430i xDrive or M440i xDrive ordered with factory Electronic Damper Control. Per KW's own published fitment, this part number covers both the 430i xDrive and M440i xDrive G22 coupe with EDC — KW does not publish a G23 cabrio fitment under this part number.

If your car does not have factory EDC, this is not the correct kit: 430i xDrive without EDC uses KW's separate 352200CX listing. KW also publishes a non-EDC M440i xDrive part number (352200CZ), which Speed Logic does not currently stock as its own listing — contact us if you need it.

SPECS

• 2-way adjustable damping: independent compression and rebound

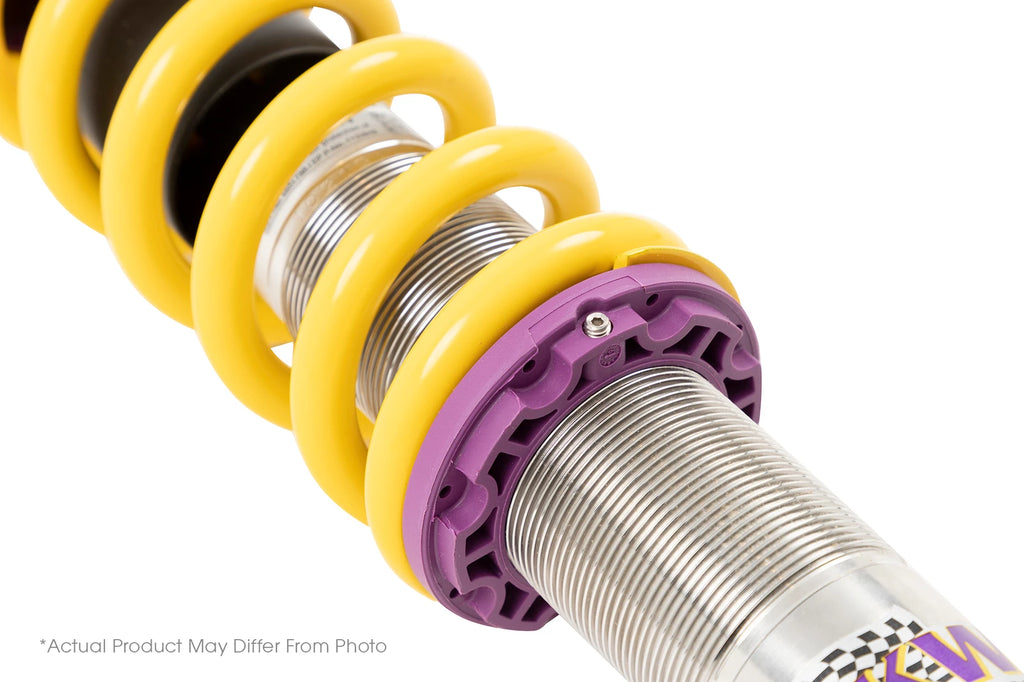

• Continuously adjustable ride height
• Supplied with the KW ESC/EDC cancellation module, deleting the factory adaptive dampers without fault codes
• Replaces the factory strut front and rear

PARTS INCLUDED

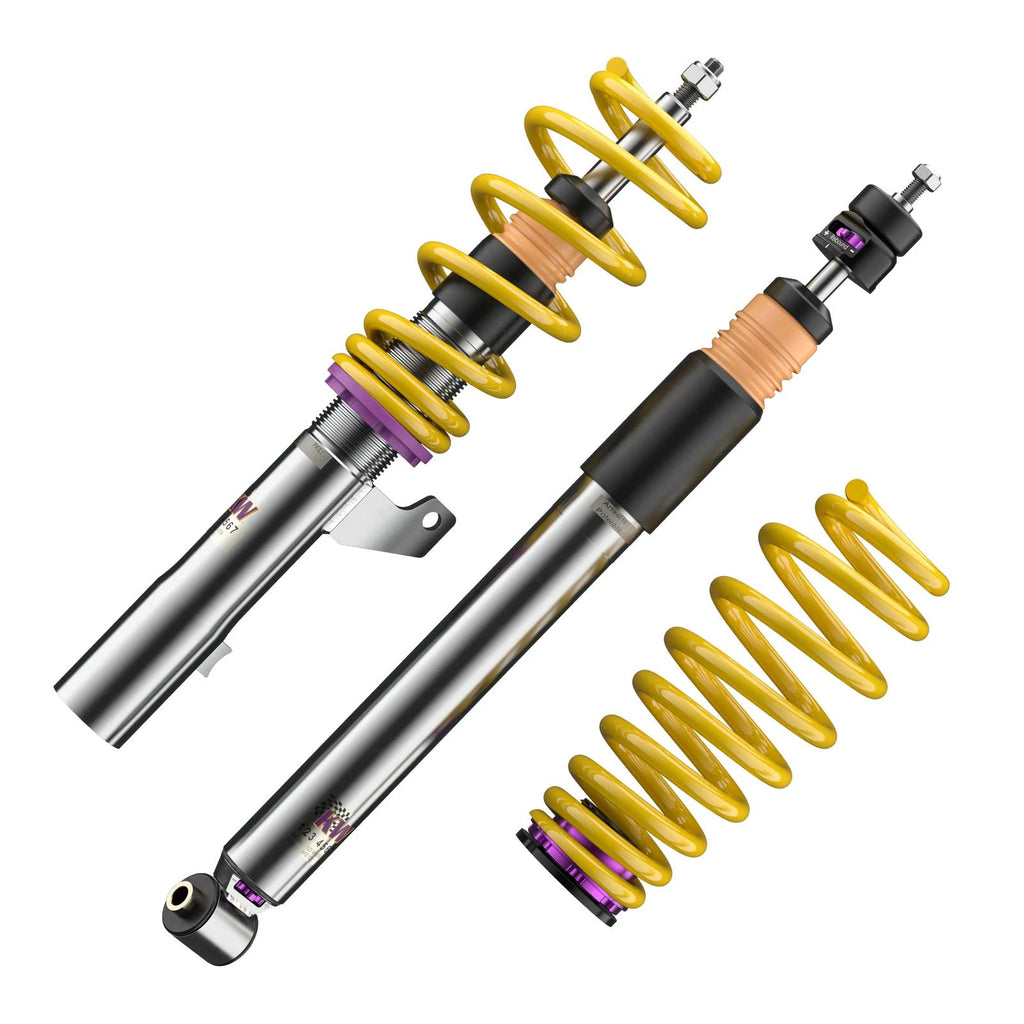

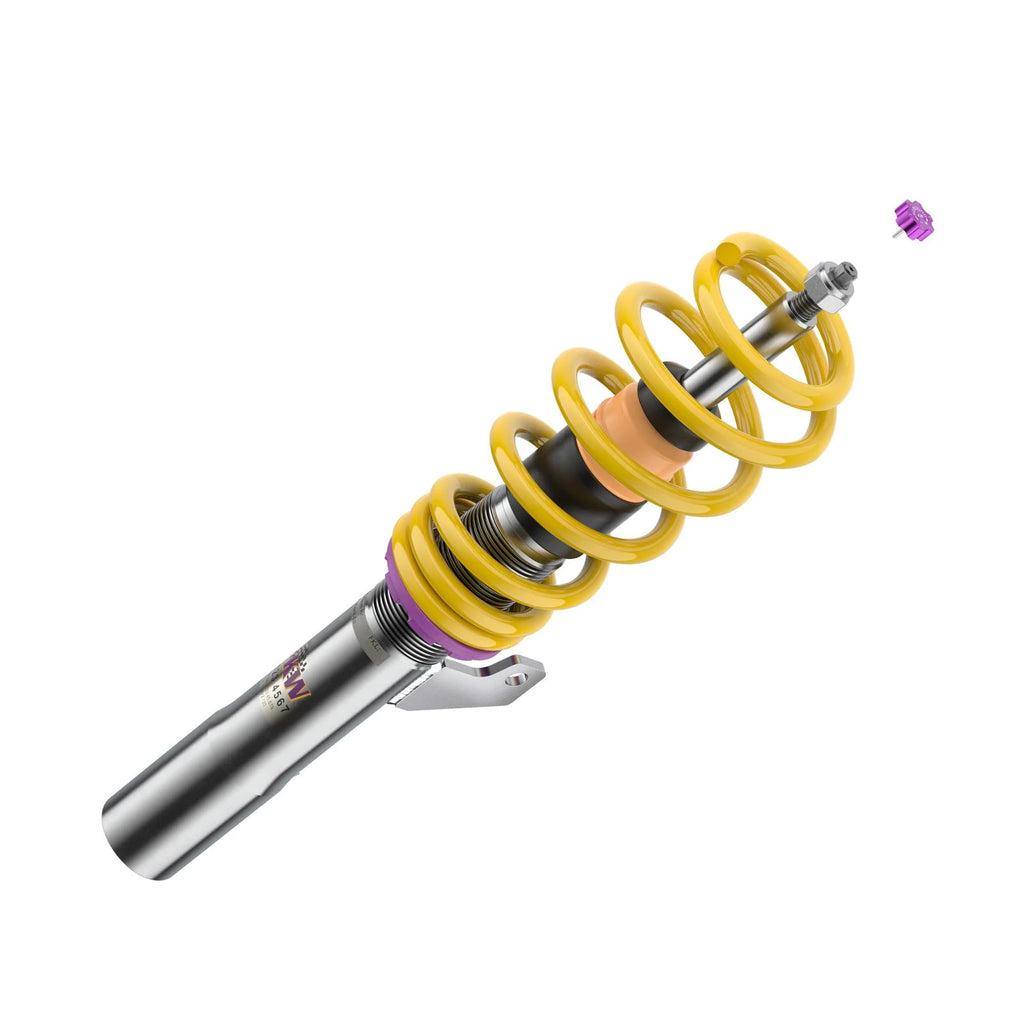

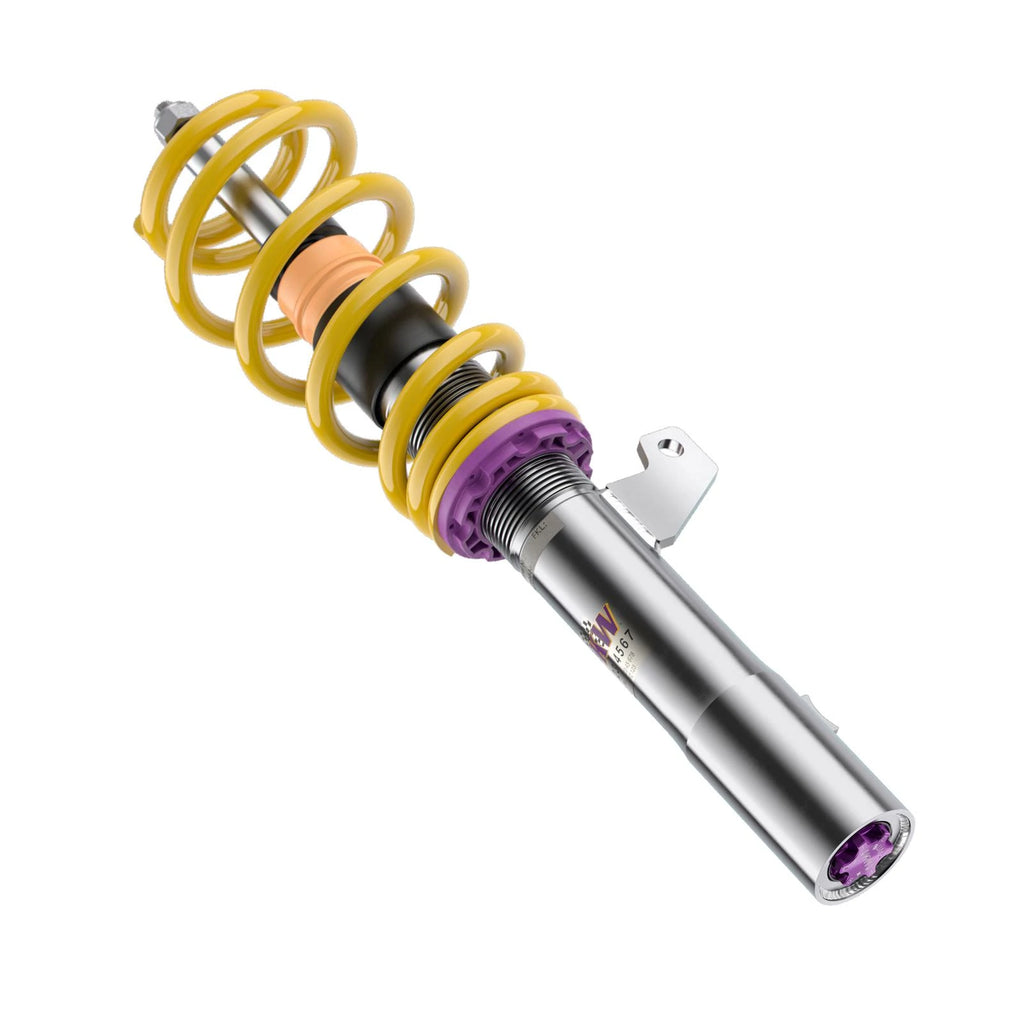

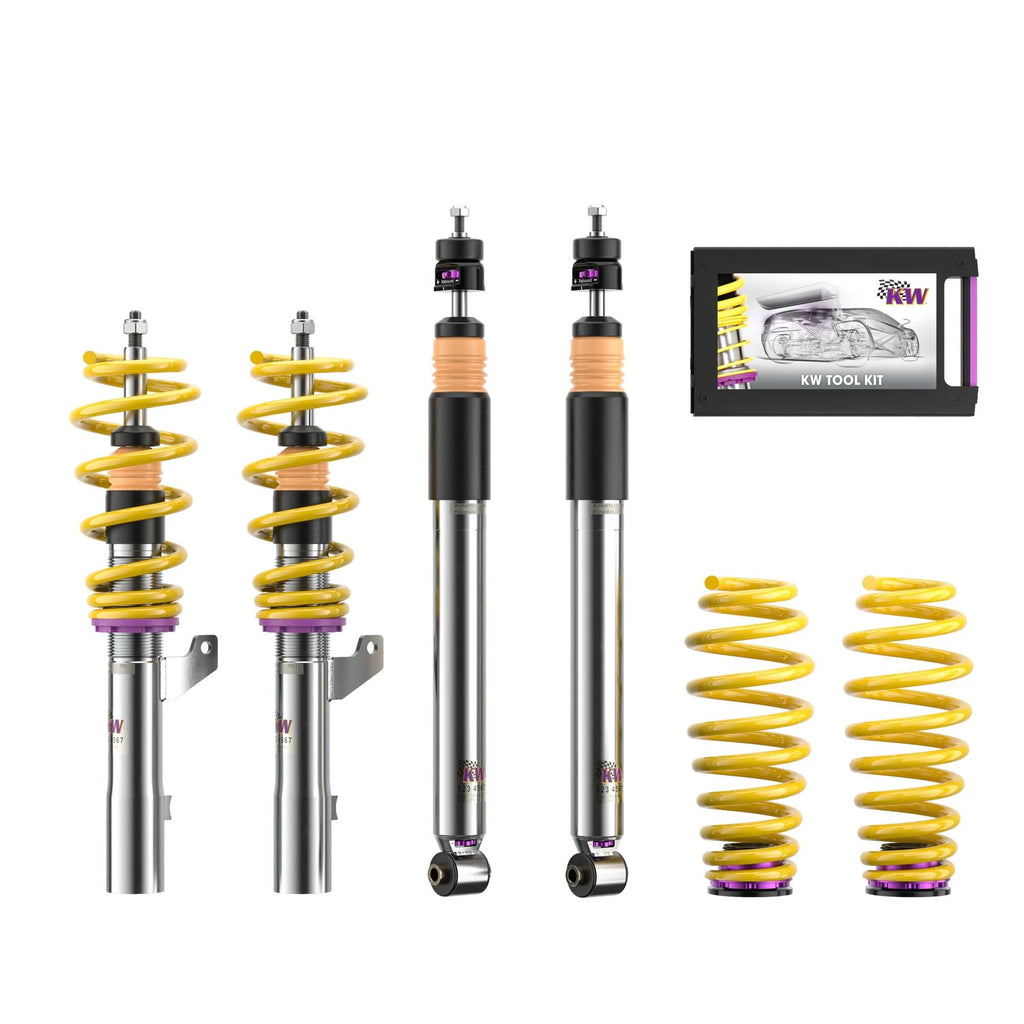

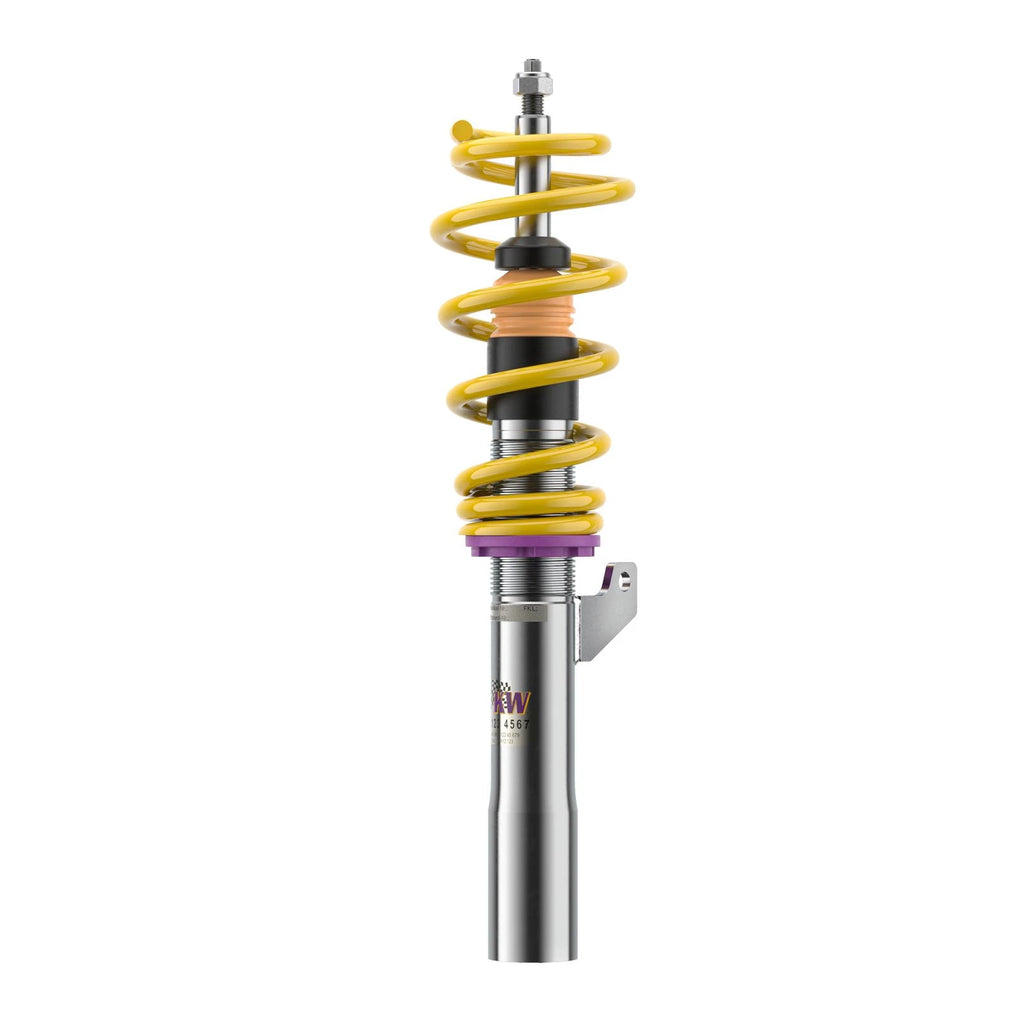

• Front and rear KW Variant 3 coilover units with matched springs
• KW ESC/EDC cancellation module included

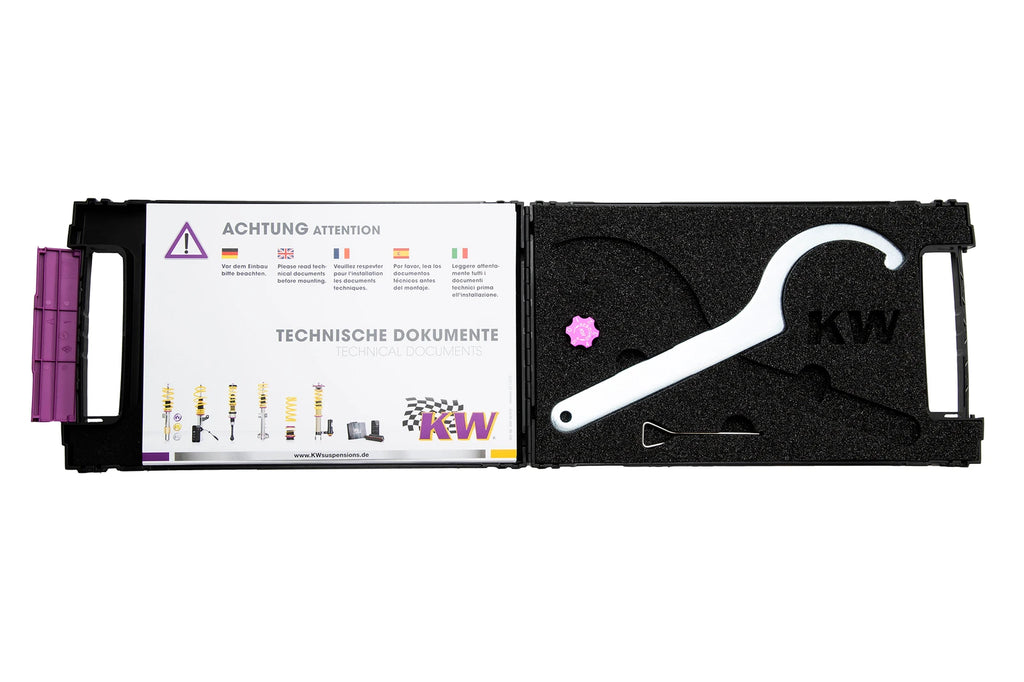

• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• No separate ESC/EDC cancellation module purchase is needed — 352200DA already includes it.
• A corner-balance and a full four-wheel alignment are required after installation, and matter even more on an AWD car. Budget for both before the car is driven.

Installation

• Installation instructions (352200DA): PDF, PDF.
• Setup manual (352200DA): PDF.
• In brief: full strut-out replacement front and rear, the ESC module plugged into the OE damper connectors, ride height set inside KW's published range, then corner-balance and alignment.

Notes

• KW's own fitment data for 352200DA lists the G22 coupe only (430i xDrive and M440i xDrive, both with factory EDC); no G23 cabrio fitment is published under this part number. Confirmed directly against KW's fitment chart on 2026-09-08.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 352200DA — V3 Bundle, BMW 430i xDrive / M440i xDrive G22 with EDC
