KW Coilover Kit Variant 3 (V3) Bundle 2-Way Adjustable (EDC) – BMW 430i xDrive / M440i xDrive (G22), Front Axle up to 1070 kg

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

352200CY is KW's Bundle configuration for the G22 4 Series coupe: it ships with the KW ESC/EDC cancellation module, so it is the correct kit for a 430i xDrive or M440i xDrive ordered with factory Electronic Damper Control. Per KW's own published fitment, this part number covers both the 430i xDrive and M440i xDrive G22 coupe with EDC, 2021–2026 — KW does not publish a G23 cabrio fitment under this part number.

This listing covers KW 352200CY, the EDC Bundle kit for the G22 430i xDrive and M440i xDrive coupe with factory Electronic Damper Control (EDC) and a front gross axle weight rating of up to 1070 kg. KW splits this car across four V3 kits by EDC and front axle rating: non-EDC cars with the same axle rating take KW 352200CX; EDC cars with a front axle rating of 1071–1170 kg take KW 352200DA; and non-EDC cars at 1071–1170 kg take KW 352200CZ.

SPECS

• 2-way adjustable damping: independent compression and rebound
• Continuously adjustable ride height
• Lowering range (KW): front 1.2–2.0 in, rear 1.2–2.0 in

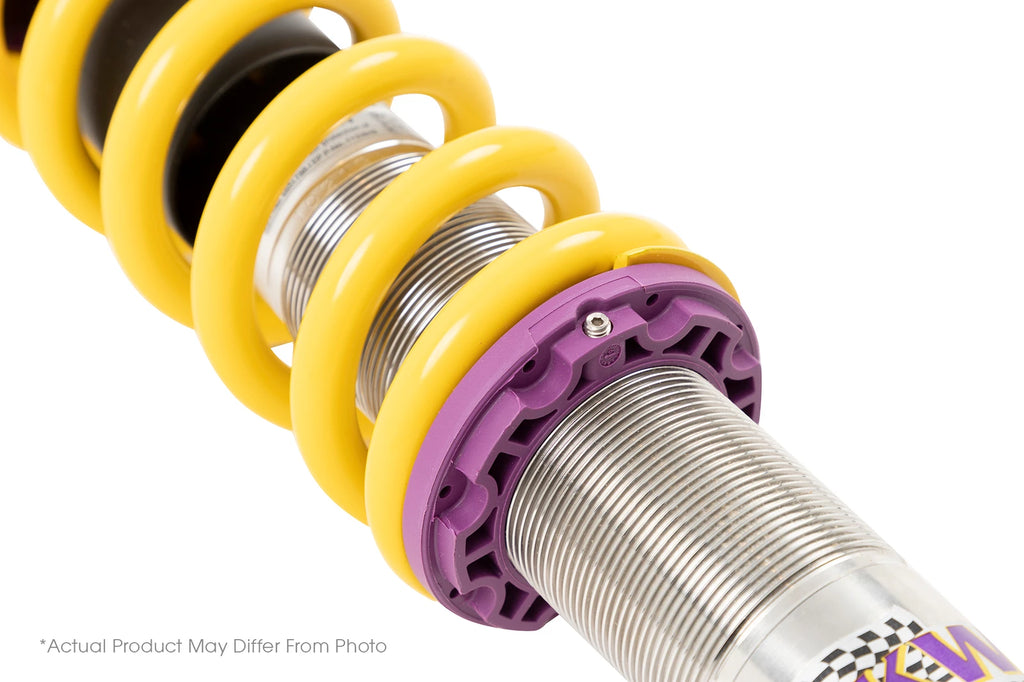

• Height adjustment: threaded strut housings at the front, separate adjustable springs and dampers at the rear
• Supplied with the KW ESC/EDC cancellation module, deleting the factory adaptive dampers without fault codes
• Replaces the factory strut front and rear
• Front gross axle weight rating: up to 1070 kg

PARTS INCLUDED

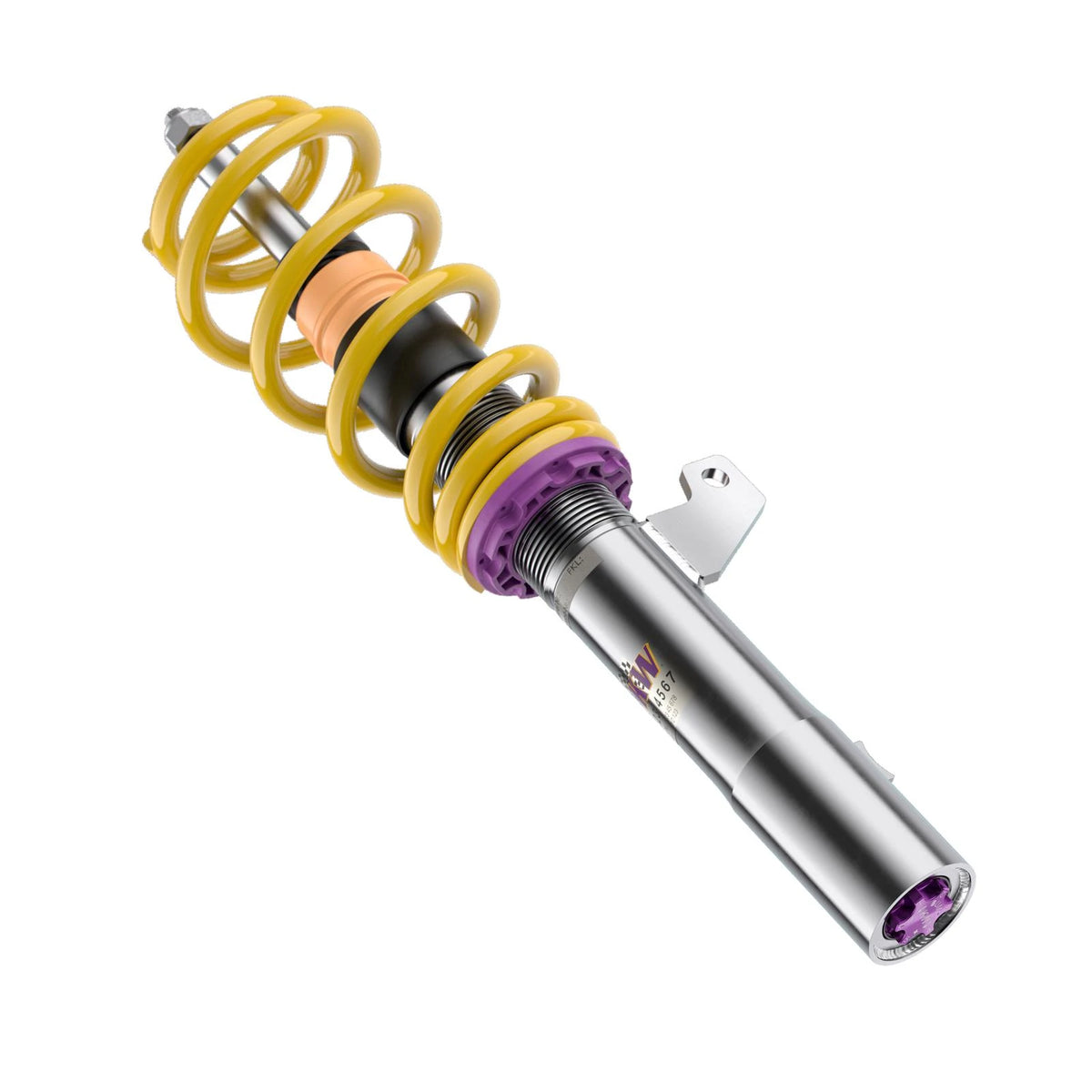

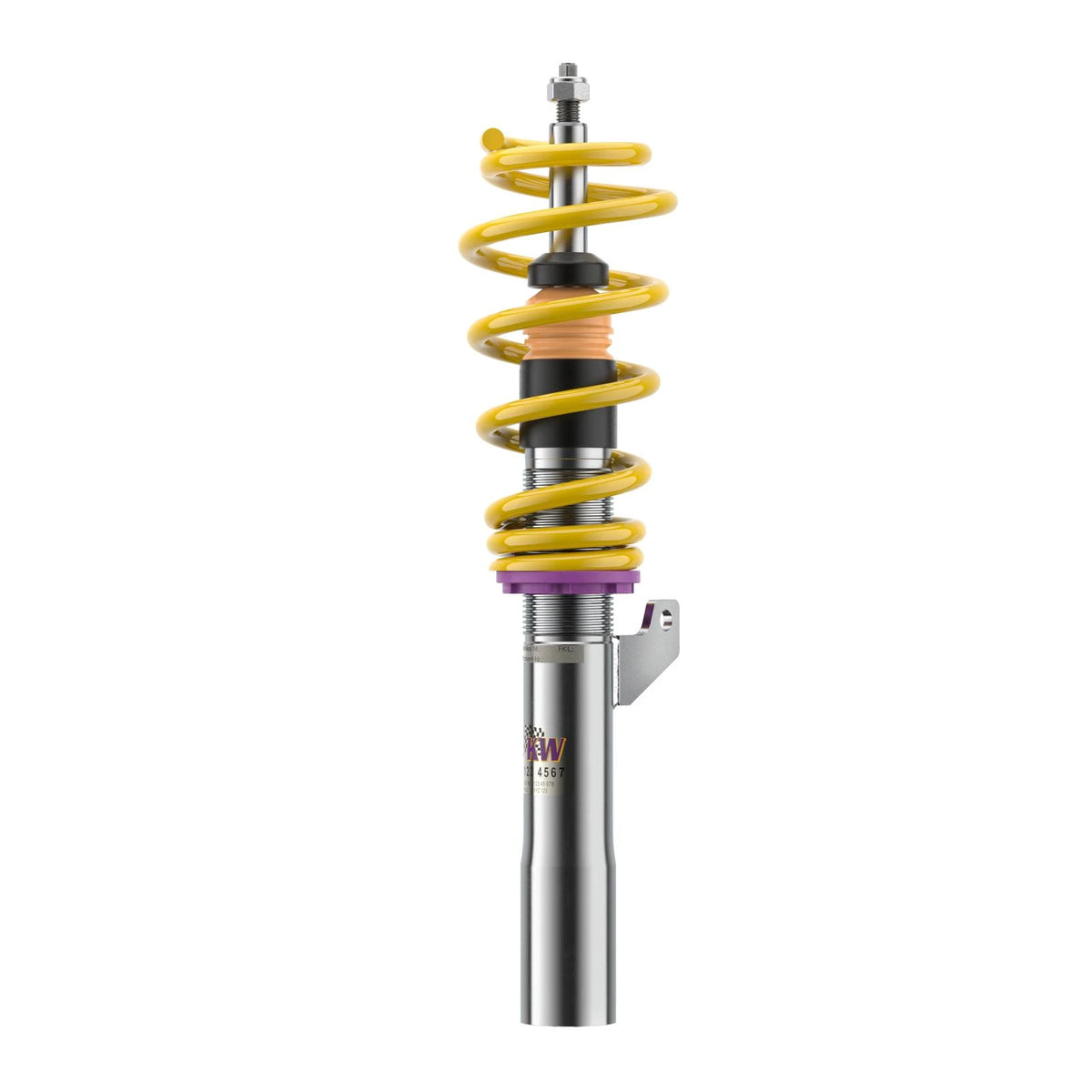

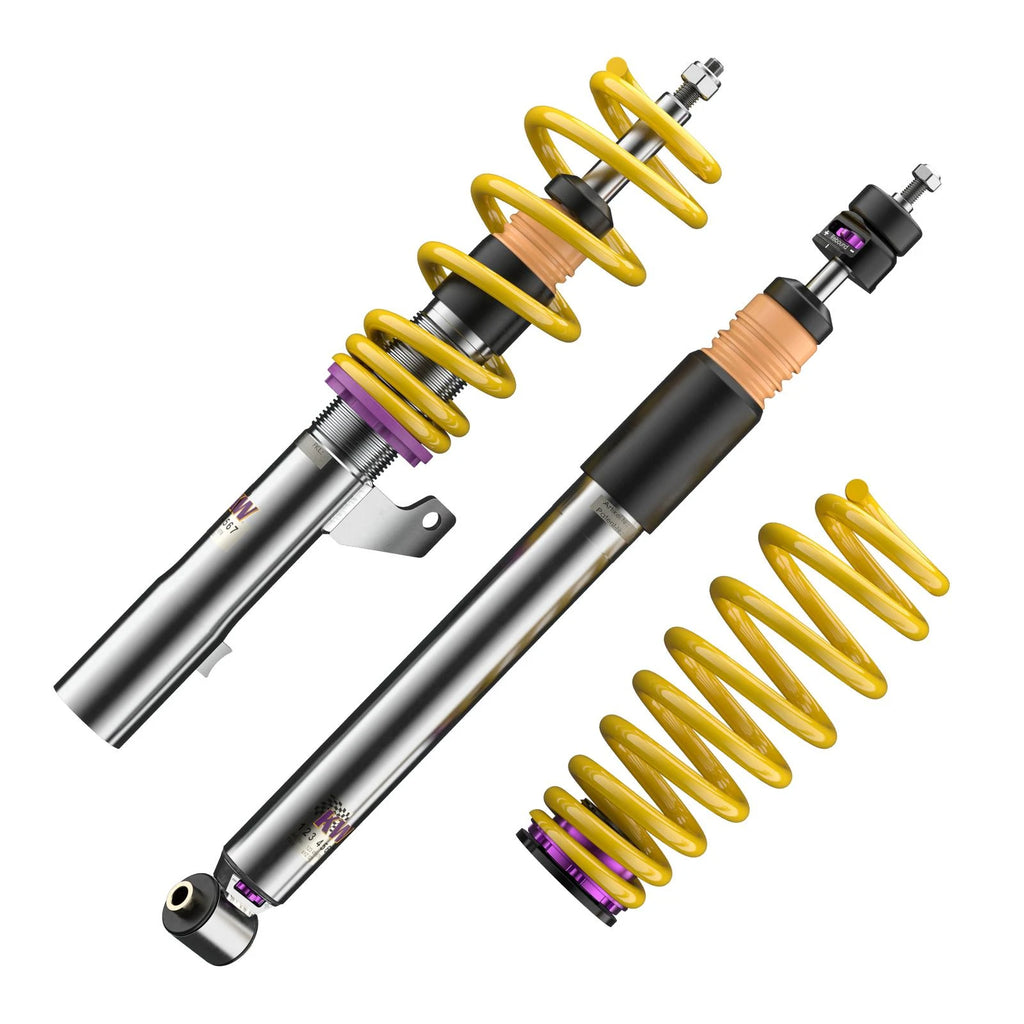

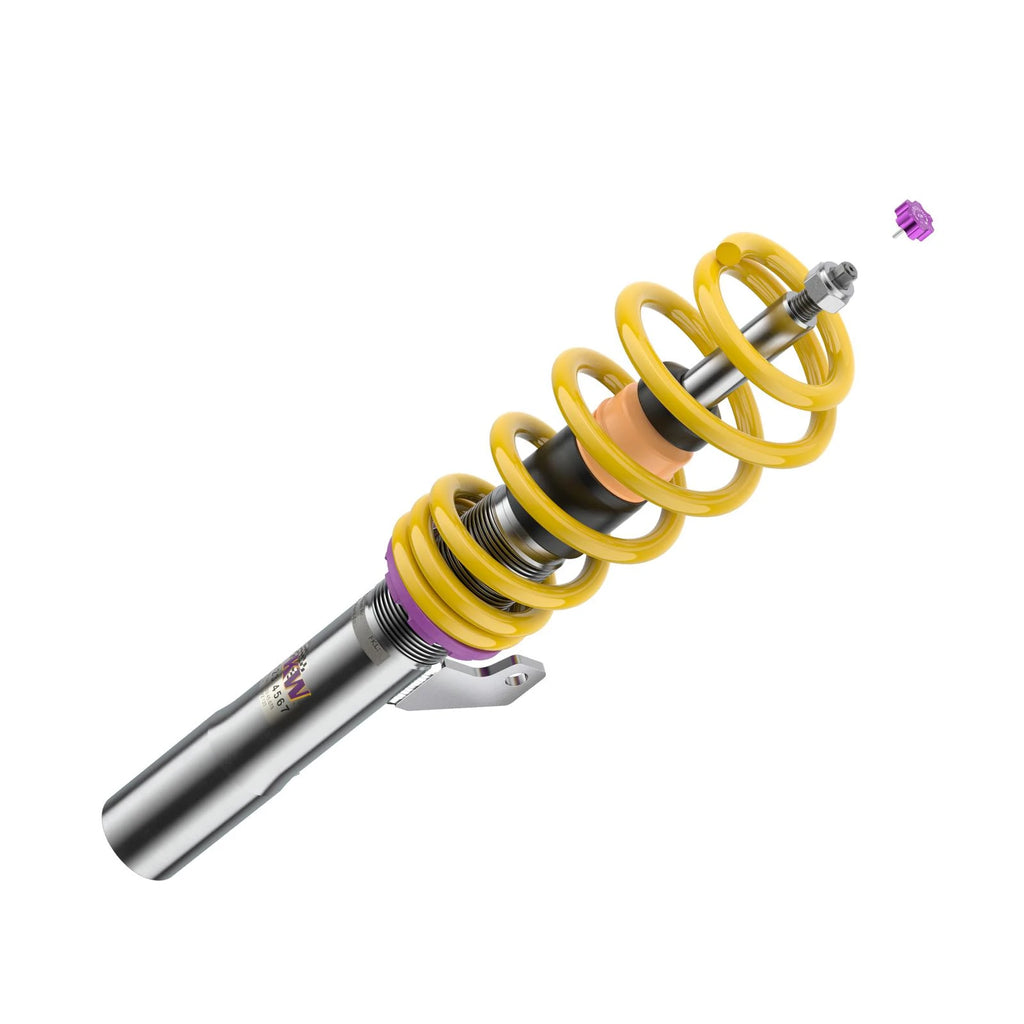

• Front and rear KW Variant 3 coilover units with matched springs
• KW ESC/EDC cancellation module included

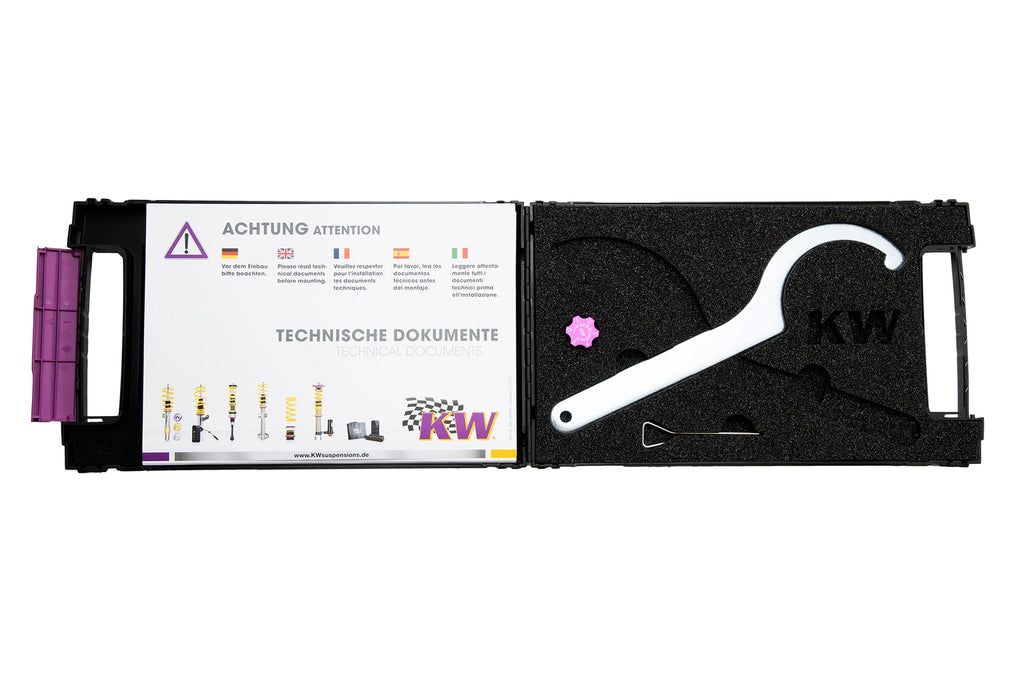

• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• No separate ESC/EDC cancellation module purchase is needed — 352200CY already includes it.
• A corner-balance and a full four-wheel alignment are required after installation, and matter even more on an AWD car. Budget for both before the car is driven.

Installation

• Installation instructions (352200CY, from KW): PDF, PDF.
• KW V3 setup manual (from KW): PDF.
• In brief: full strut-out replacement front and rear, the ESC module plugged into the OE damper connectors, ride height set inside KW's published range, then corner-balance and alignment.

Notes

• Check your front gross axle weight rating (GAWR) before ordering: it is printed on the tire and loading / certification sticker on the driver's door jamb. This kit is for a front GAWR of up to 1070 kg.
• Other KW V3 kits for the G22 430i xDrive / M440i xDrive:
  • KW V3 352200CX (non-EDC, front axle up to 1070 kg)
  • KW V3 352200CZ (non-EDC, front axle 1071–1170 kg)
  • KW V3 352200DA (EDC Bundle, front axle 1071–1170 kg)
• Rebound is adjusted at the top of the piston rod and is only adjustable where it is accessible on the car (KW fitment note).
• Fitment confirmed against KW's fitment chart for 352200CY on 2026-10-22: G22 coupe, AWD, 2021–2026, EDC Yes, front GAWR up to 1070 kg.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 352200CY
