NGK 97506 Laser Iridium Spark Plug Set – BMW N54 / N55 / N20 / N26 / S55 / N63 / S63

OVERVIEW

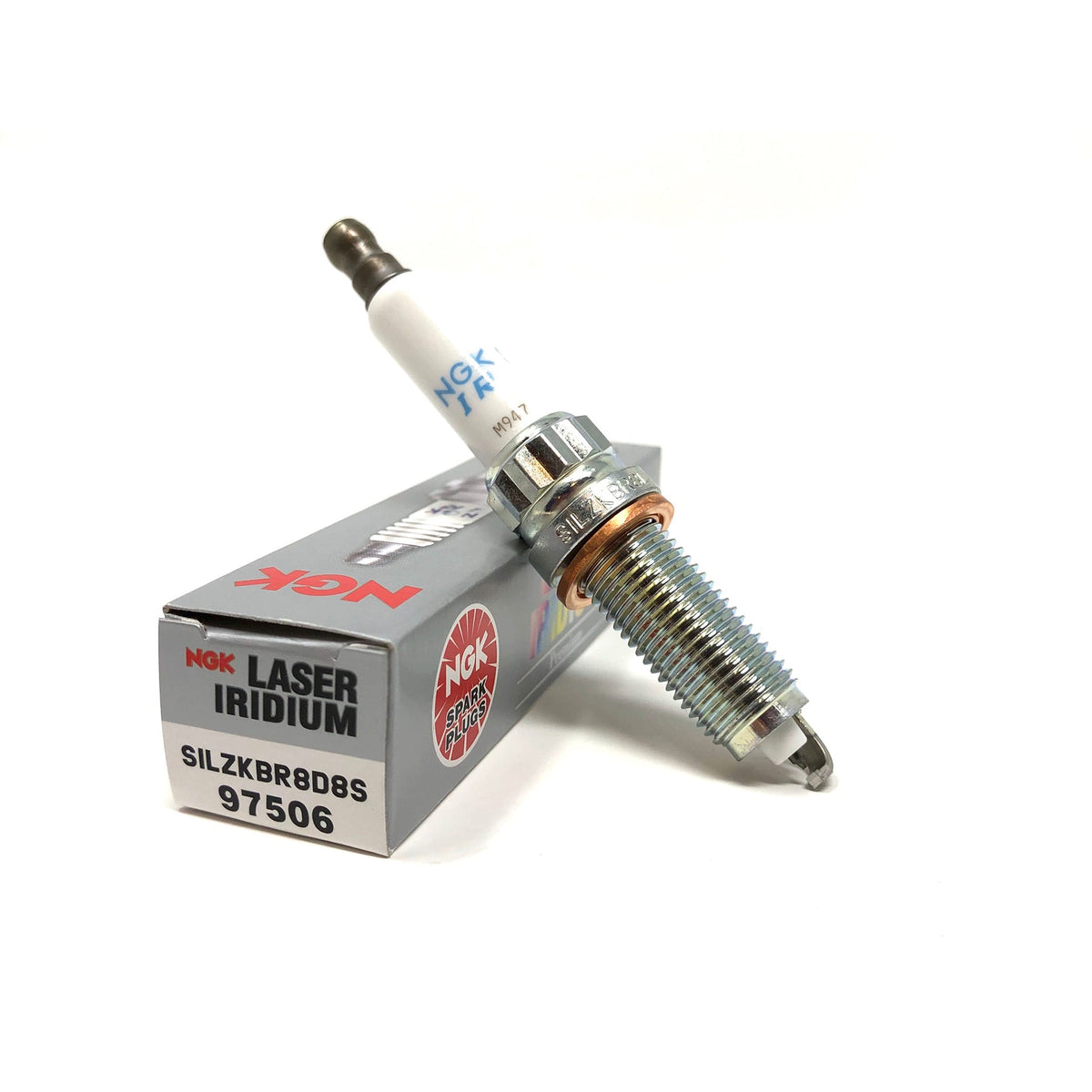

The NGK 97506 (SILZKBR8D8S) is the OE-specification Laser Iridium spark plug for the BMW N20, N26 and S55 engines, and the go-to colder plug for tuned N54, N55, N63 and S63 cars: it runs two heat ranges colder than the stock N54 plug and one range colder than the stock N55, N63 and S63 plugs, which keeps a boosted, tuned engine out of detonation on pump gas, E85 or water/methanol injection.

It pairs a fine-wire iridium center electrode with a square platinum pad on the ground electrode for even wear in coil-on-plug ignition systems. The laser-welded iridium tip is roughly six times harder than platinum, and the alumina ceramic insulator with a 98% pure copper core carries heat away from the firing end for reliable starts and long service life under boost.

Sold as a matched set — 4 plugs for the four-cylinder N20/N26, 6 plugs for the six-cylinder N54/N55/S55, or 8 plugs for the V8 N63/S63. Speed Logic only sells genuine NGK spark plugs sourced through NGK's authorized distribution; counterfeits are common on eBay, Amazon and similar marketplaces.

SPECS

• Type: NGK Laser Iridium (High Ignitability)
• NGK stock number 97506 / plug number SILZKBR8D8S
• Heat range: 8 — OE heat range for N20 / N26 / S55; two ranges colder than stock on N54, one range colder than stock on N55 / N63 / S63
• Thread size: M12 x 1.25
• Thread reach: 26.5 mm (1.043 in)
• Seat type: flat (gasket)
• Hex size: 14 mm 12-point (bi-hex)
• Center electrode: fine-wire iridium, copper core
• Ground electrode: square platinum electrode (SPE), copper core
• Resistor: yes, 5 kΩ
• Gap: factory preset 0.030 in (0.75 mm); 0.020–0.022 in suggested for tuned N54/N55/N63/S63 applications
• Direct OE-fit replacement — no tuning or ECU change required to install
• Sold as a matched set: 4 plugs (N20 / N26), 6 plugs (N54 / N55 / S55) or 8 plugs (N63 / S63)

PARTS INCLUDED

• Set of (4) genuine NGK 97506 Laser Iridium spark plugs — N20 / N26 four-cylinder engines, or
• Set of (6) genuine NGK 97506 Laser Iridium spark plugs — N54 / N55 / S55 six-cylinder engines, or
• Set of (8) genuine NGK 97506 Laser Iridium spark plugs — N63 / S63 V8 engines (per variant selected)

TECH RESOURCES

• Additional parts required: None. NGK specifies no additional hardware for the NGK 97506 (SILZKBR8D8S); it is a direct drop-in replacement for the OE plug.
• Installer-supplied tools (not sold by Speed Logic): 14 mm 12-point (bi-hex) thin-wall spark plug socket — a standard 5/8" plug socket will not fit — plus a torque wrench and a wire/feeler gauge if you intend to adjust the gap.
• Installation: NGK does not publish a part-specific installation document for the NGK 97506. Follow NGK's official guidance: NGK Spark Plug Installation and NGK Electrode Gap Adjustment.
• Work on a cold engine. Blow debris out of the plug wells before removing the ignition coils, thread each plug in by hand until the gasket seats, then torque to the BMW factory specification for your engine (NGK's general figure for 12 mm gasket-seat plugs in aluminum heads is 15–20 Nm / 11–14.5 lb-ft). Do not apply anti-seize — NGK's trivalent-plated shell already prevents seizing and anti-seize leads to over-torquing.
• Gap: factory preset at 0.030 in (0.75 mm). Speed Logic suggests 0.020–0.022 in for tuned N54/N55/N63/S63 cars; stock N20/N26/S55 cars can run the factory gap. If you re-gap, adjust the ground electrode only with a proper gapping tool — never pry against the fine-wire iridium center electrode. Pre-gapped sets are available on request; contact Speed Logic with your setup.
• Clear any stored misfire codes after installation.
• Related NGK plugs: B58 Gen 1 / B46 / B48 Gen 1 engines use the NGK 94201 Laser Iridium Spark Plug Set; S58 and B58 / B48 Gen 2 engines use the NGK 96206 Laser Iridium Spark Plugs.
• Install or gap questions? Contact Speed Logic — we also install in-house at our Westminster, CA shop.

PART NUMBER

• 97506 — NGK stock number
• SILZKBR8D8S — NGK plug number

VEHICLE APPLICATIONS
