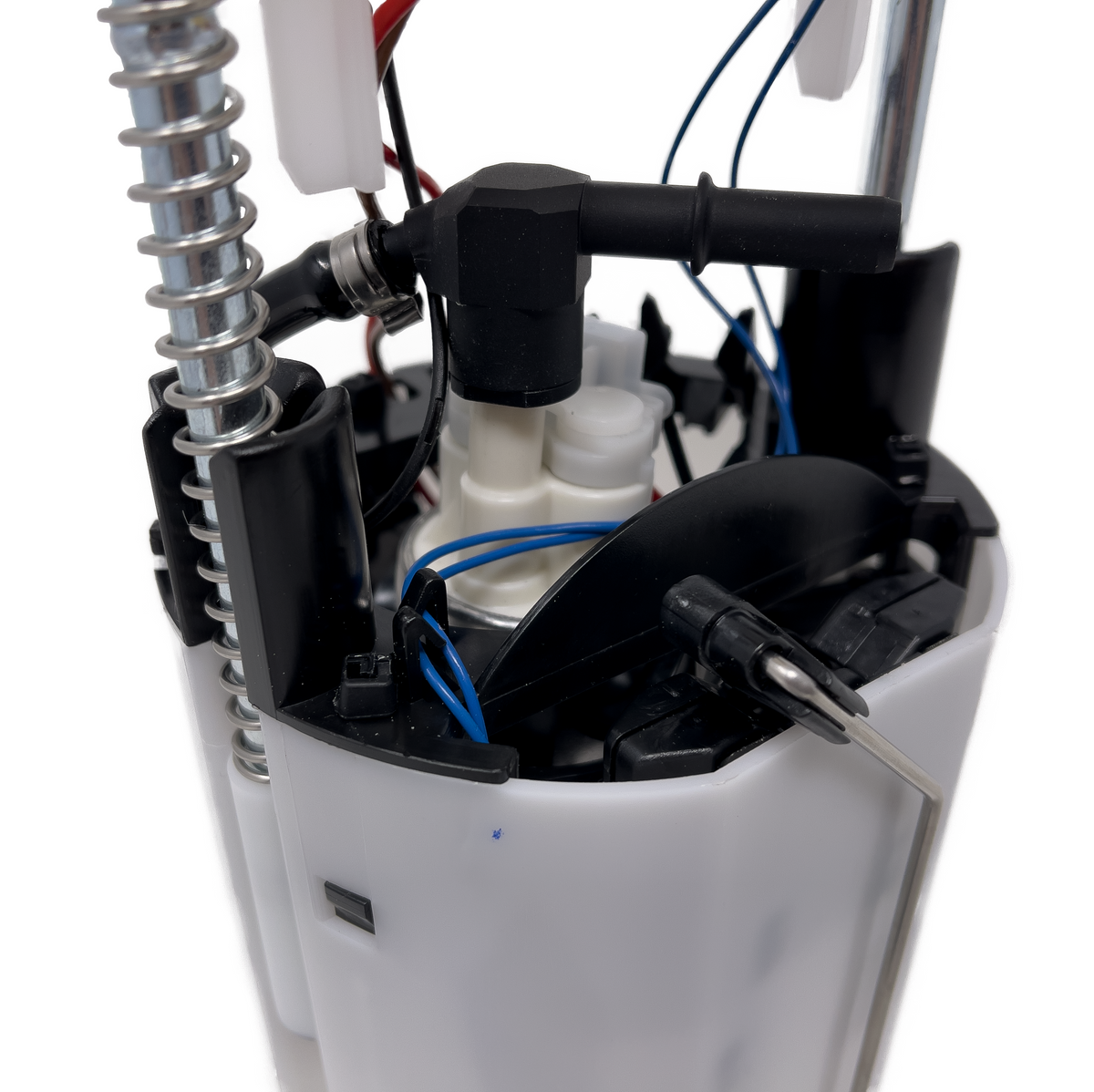

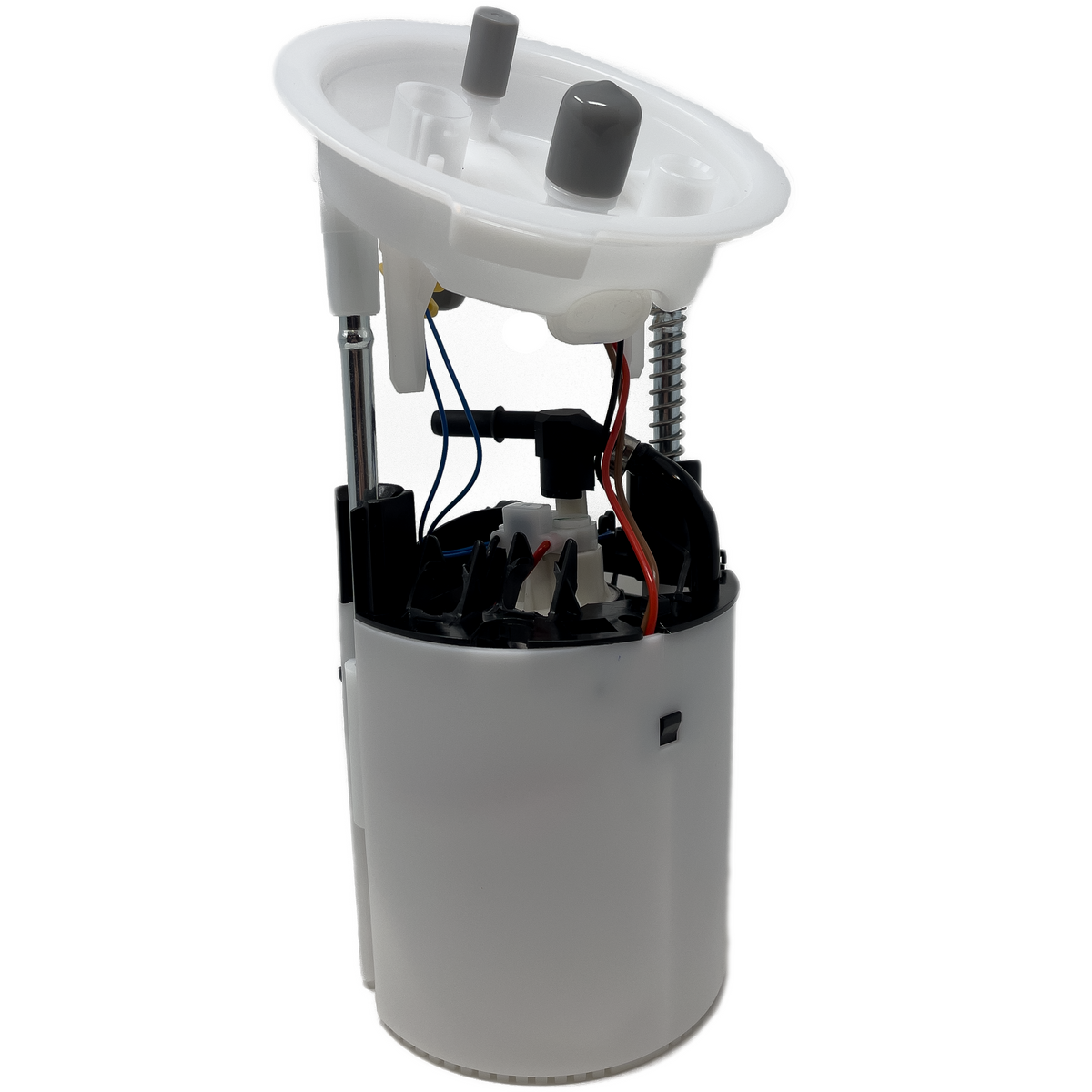

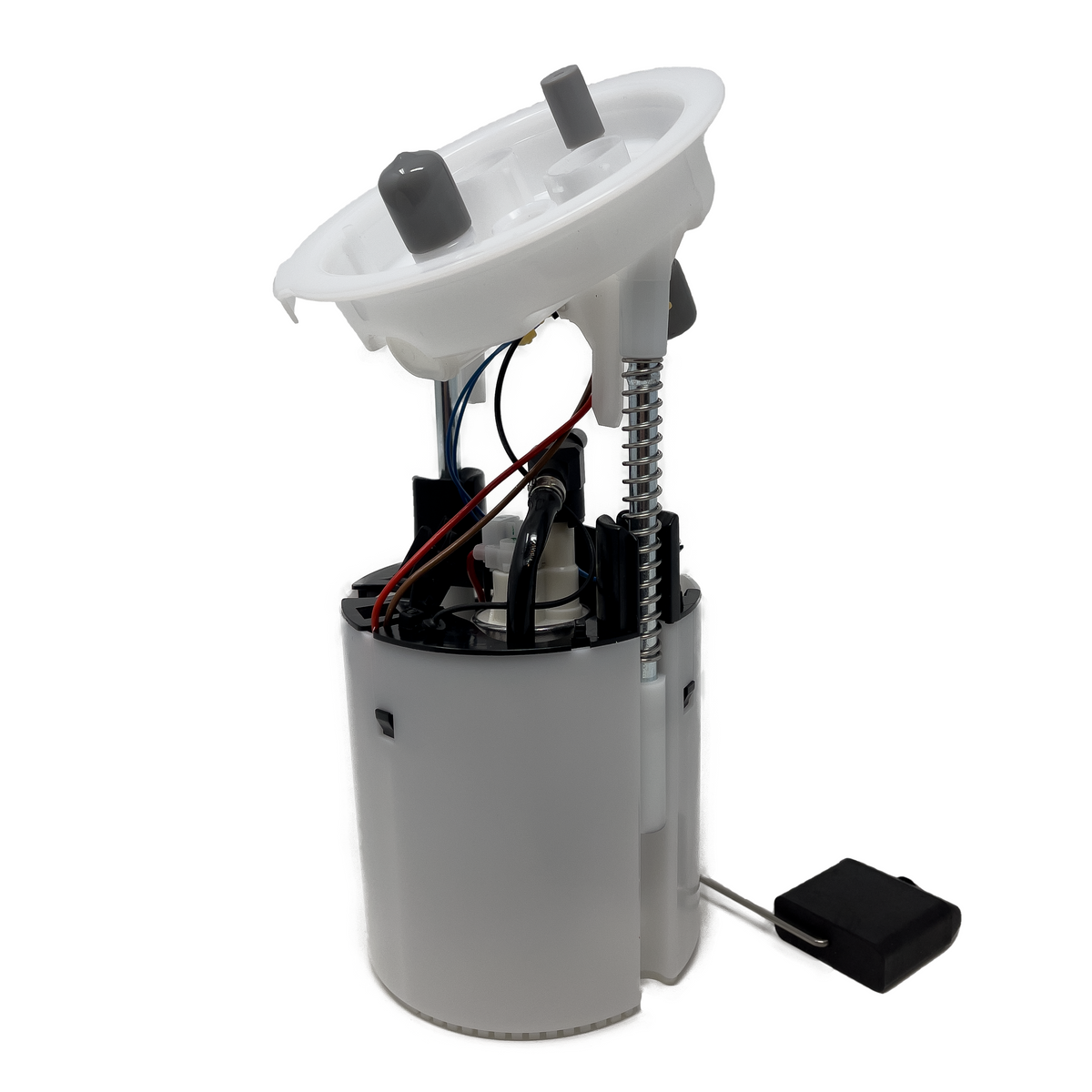

Precision Raceworks E9X / E8X Bucketed Low Pressure Pump Upgrade (Non-Modular) – BMW N54 / N55

OVERVIEW

The Precision Raceworks non-modular bucketed upgrade is a fully assembled, drop-in replacement for the factory in-tank low-pressure pump on E8X and E9X N54 and N55 cars. It installs like the OEM pump and flows up to 350% more fuel.

It keeps the factory-style bucket, so the pickup stays covered at low fuel level, but it is built for one power target and cannot be expanded later. Choose it if Stage 2 or 2.5v2 is where the car will stay; if you may want more fuel later, choose the modular bucketed pump instead.

SPECS

• Stage 2: Walbro 450 (F90000274), 2.6 LPM at 72 psi, 575 whp pump gas / 500 whp 100% E85
• Stage 2.5v2: Walbro 535 (F90000295), 3.9 LPM, 650 / 550 whp
• Weight: 3.98 lb
• Fully assembled, plug-and-play drop-in
• 100% E85 compliant; no aftermarket EKP module required
• Non-modular: cannot be upgraded with expansion modules

PARTS INCLUDED

• Fully assembled bucketed pump assembly with one Walbro 450 (Stage 2) or Walbro 535 (Stage 2.5v2)

TECH RESOURCES

Required Extras

• Precision Raceworks E9X / E8X In-Tank Fuel Filter & Regulator V2 (601-0244) — required to reach the advertised flow and horsepower ratings.
• Precision Raceworks E-Series Fuel Pump Lock Ring Tool (601-0045) — needed to release the factory fuel pump lock ring; not included with the pump; sold separately (not stocked by Speed Logic).

Installation

• Installation instructions are supplied with the kit; Precision Raceworks does not publish a public install guide for this part.
• The tank-side procedure is the same as the Precision Raceworks E9X bucketed pump (PDF): PR E9X Fuel Pump Instructions
• Speed Logic can install this pump for you; contact us to book.

Notes

• This pump cannot be expanded to Stage 3 or above at a later date; no upgrade kits fit it. For a stepped build choose the modular Precision Raceworks E9X / E8X Bucketed Performance Fuel Pump.
• Some European-spec cars may need to reuse the factory top hat because of emissions differences.
• Price is for the item selected only; labor is not included.
• Confirm your car's engine code before ordering; naturally aspirated models (323i, 325i, 328i, 330i, 128i) are not covered by this listing.

PART NUMBER

• 601-0176 — Stage 2, Walbro 450, 575 whp
• 601-0177 — Stage 2.5v2, Walbro 535, 650 whp

VEHICLE APPLICATIONS
