Precision Raceworks E9X / E8X In-Tank Fuel Filter & Regulator V2

OVERVIEW

Upgraded in-tank pumps on the E8X and E9X N54 and N55 run into a second limit: the factory fuel filter. It restricts flow and makes the pumps work harder for the pressure they deliver. The Precision Raceworks in-tank fuel filter and regulator V2 replaces it with a billet, modular housing that flows more fuel and lowers pump current draw.

It is the companion piece to every Precision Raceworks and BMP E8X / E9X low-pressure pump; those pumps are rated with this filter fitted. The element is a replaceable 10 micron microglass cartridge, so the housing stays in the car and only the element is serviced.

Two configurations are offered here. The In-Tank 5 Bar version carries a preset, boost-referenced 1:1 regulator inside the tank and works with stock or upgraded fuel lines. The Adjustable 1-to-1 version moves regulation to a fully adjustable regulator in the engine bay and includes the lines for a BMP or plate-style port injection system.

SPECS

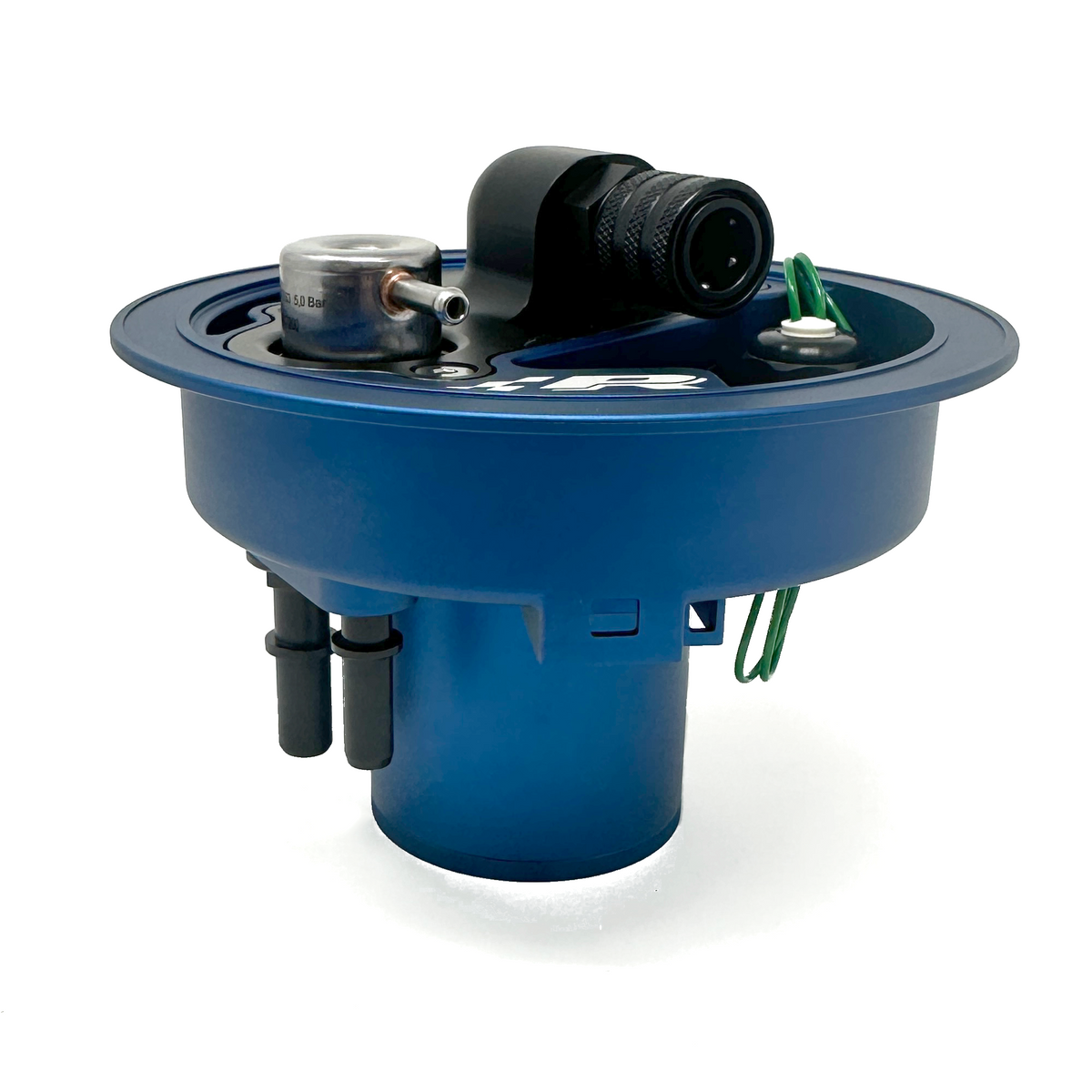

• Billet aluminum, modular filter housing; oversized inlet and AN6 ORB outlet port
• Replaceable 10 micron microglass filter element, made in the USA
• Precision Raceworks reports roughly 37% more flow at 72 psi than a new OEM filter on single-pump setups and roughly 43% more on dual-pump setups
• Lower fuel pump (EKP) current draw on dual-pump setups (39.7 A down to 36.86 A in vendor testing)

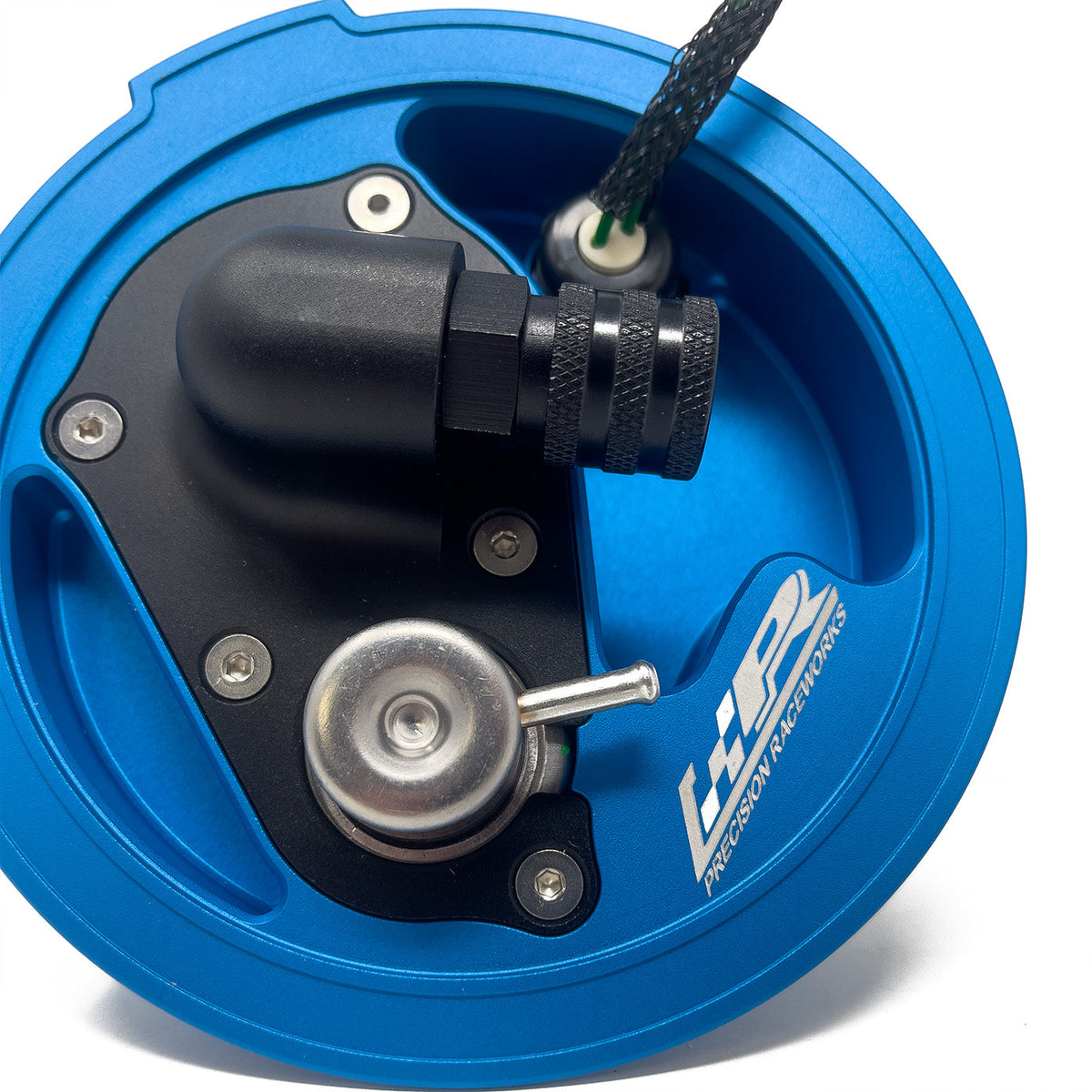

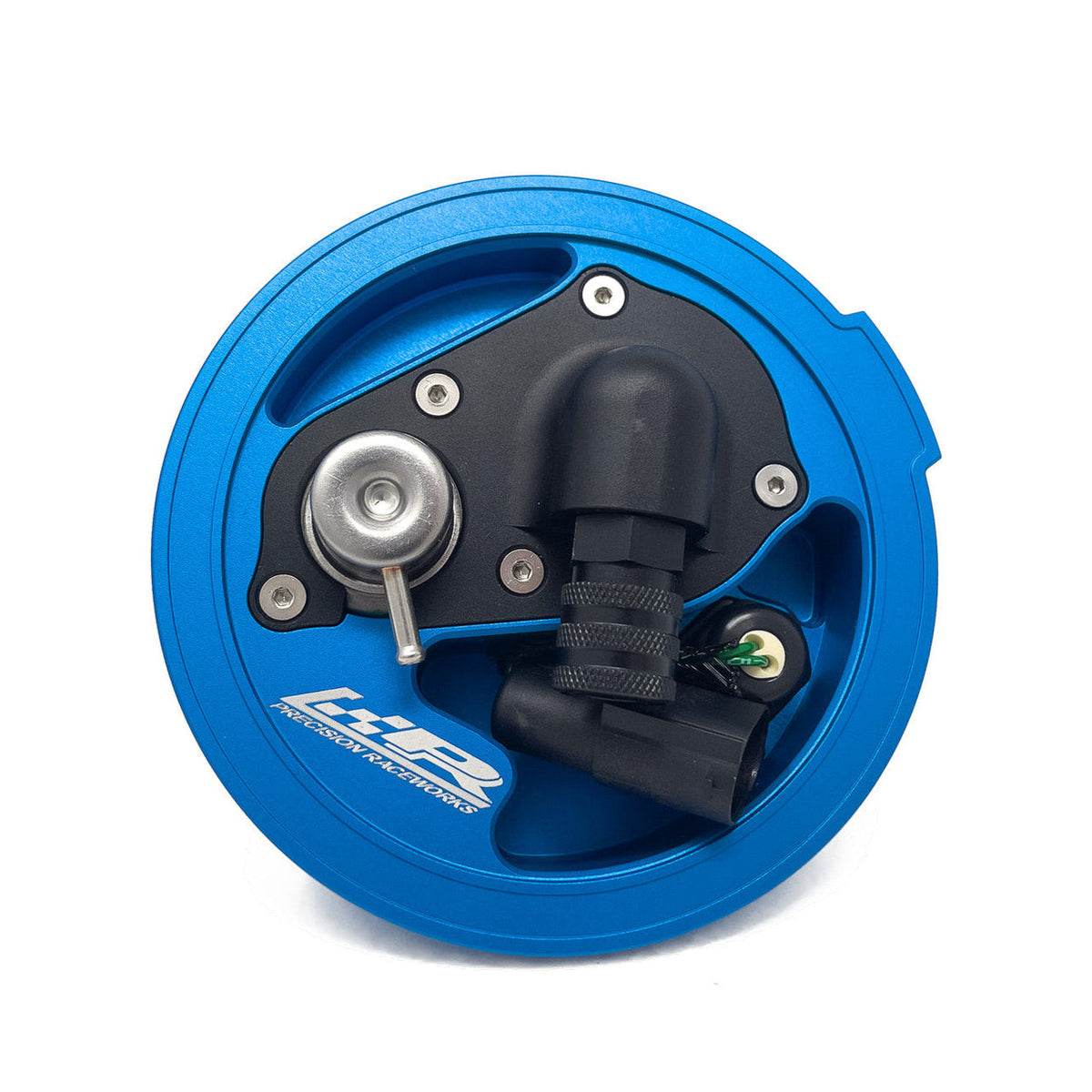

• In-Tank 5 Bar (601-0244): preset, boost-referenced 1:1 regulator mounted in the tank

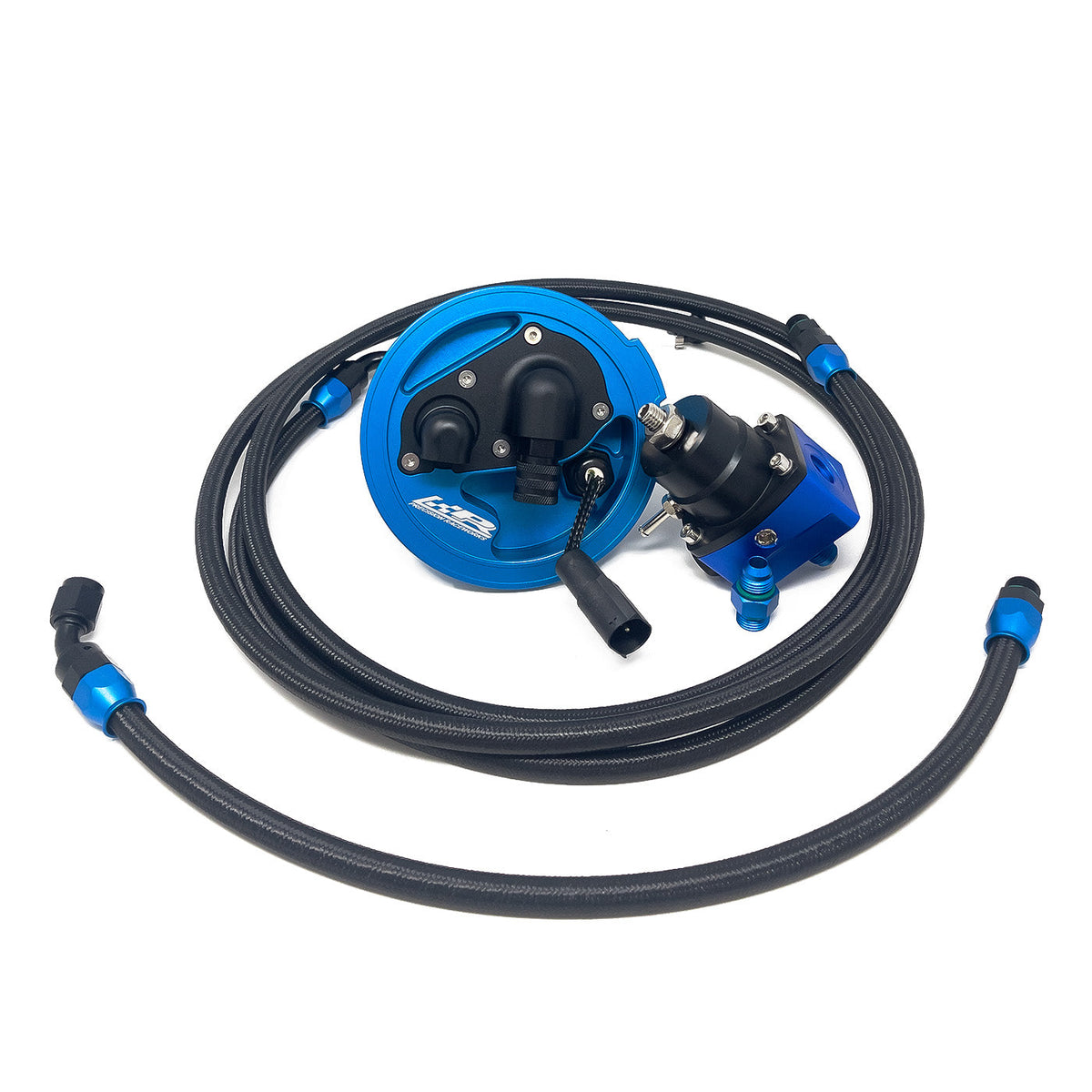

• Adjustable with 1-to-1 (622-0272): fully adjustable 1:1 regulator mounted in the engine bay
• Suitable for pump gas through race fuel and ethanol blends

PARTS INCLUDED

• In-Tank 5 Bar (601-0244): billet in-tank filter housing with 10 micron element and in-tank 5 bar regulator
• Adjustable with 1-to-1 (622-0272): billet in-tank filter housing with 10 micron element, adjustable 1:1 engine-bay regulator and the lines for a BMP or plate-style port injection system

TECH RESOURCES

Required Extras

• An upgraded E8X / E9X low-pressure pump — this filter is built to pair with the Precision Raceworks E9X / E8X Bucketed Performance Fuel Pump, the Precision Raceworks / BMP E9X / E8X Modular Bucket-Less Fuel Pump or the Precision Raceworks E9X / E8X Bucketed Low Pressure Pump Upgrade (Non-Modular).
• Adjustable 1-to-1 configuration (622-0272): Precision Raceworks E9X / E8X Return Lines for V2 Regulator (201-0340 main return / 201-0338 rail to regulator) as your setup requires — sold separately (not stocked by Speed Logic).
• Optional: the filter works with any fuel line that connects to the factory filter; for maximum flow Precision Raceworks recommends its E9X / E8X -6AN Upgraded Fuel Line (201-0247) — sold separately (not stocked by Speed Logic).
• Precision Raceworks E-Series Fuel Pump Lock Ring Tool (601-0045) — makes removing the factory fuel pump lock ring easier; sold separately (not stocked by Speed Logic).

Installation

• E9X / E8X in-tank filter and regulator install guide (PDF): E9X / E8X In-Tank Filter Regulator Installation Guide
• Speed Logic offers professional installation; contact us for a quote.

Notes

• The adjustable 1:1 regulator option (622-0272) has no check valve. Fuel pressure bleeds off when the car is shut off, which can cause longer cranking or a rough idle on start-up.
• The No Regulator (601-0275) and Micro 5 Bar Static (622-0273) configurations are available to order; contact us for pricing.
• Price is for the item selected only; labor is not included.
• Confirm your engine code before ordering; this listing covers the turbocharged N54 and N55 cars only.

PART NUMBER

• 601-0244 — In-Tank 5 Bar regulator
• 622-0272 — Adjustable with 1-to-1 regulator
