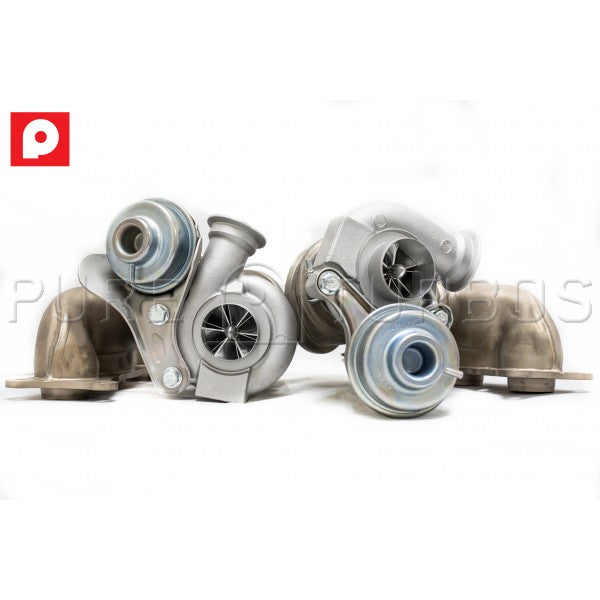

Pure Turbos Pure Stage 2 Upgrade Turbos – BMW 135i / 1M / 335i / 535i / 740i / X6 / Z4 (N54)

OVERVIEW

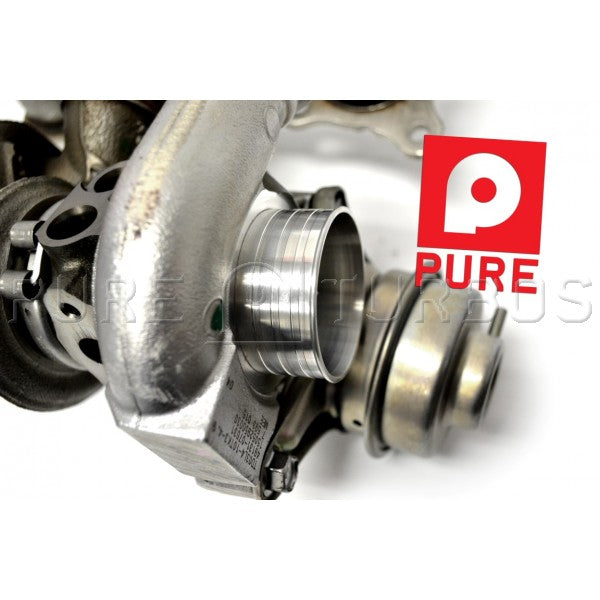

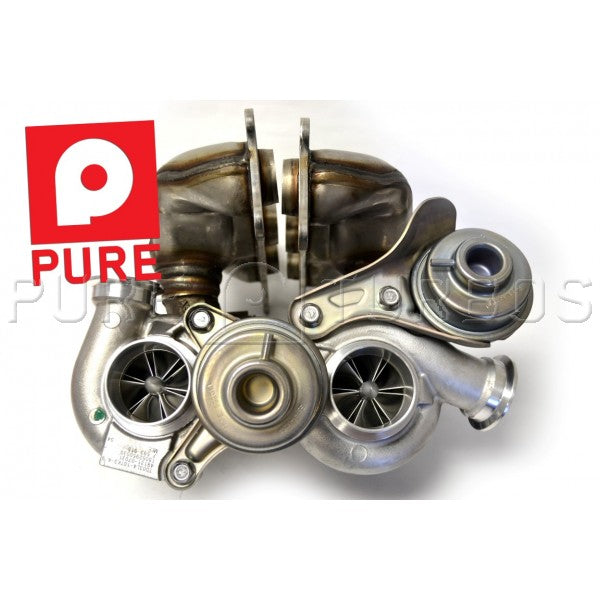

The Pure Stage 2 is Pure Turbos’ OEM-based turbo upgrade for the N54. Pure rebuilds your factory turbochargers with an upgraded billet compressor wheel, a high-flow turbine wheel and an upgraded CHRA, while keeping the OEM housings for a factory-like installation. Pure Turbos rates the upgrade as 650+ whp capable, with results depending on fuel and supporting modifications.

Two versions are offered: Daily Driver (450–600 whp) and Hi-Flow (600–700 whp). This is a core-exchange upgrade: send your turbos to Pure first, or pay a refundable core deposit and return your cores after your upgraded turbos arrive.

SPECS

• 650+ whp capable (results vary by fuel and supporting modifications)
• Daily Driver version: 450–600 whp
• Hi-Flow version: 600–700 whp

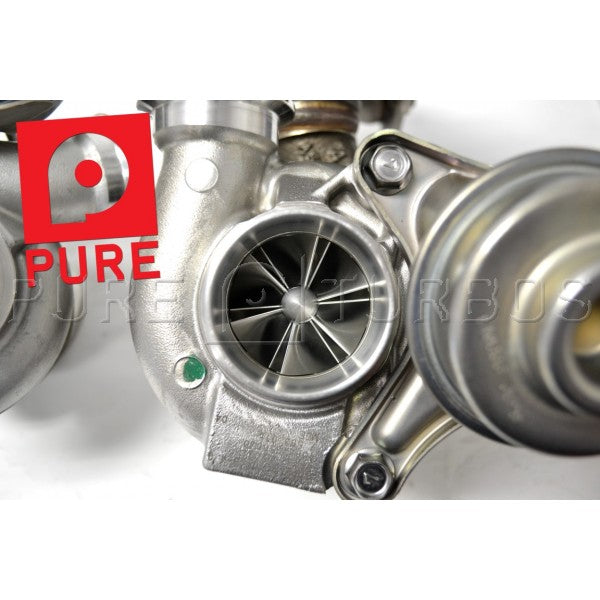

• Upgraded billet compressor wheel

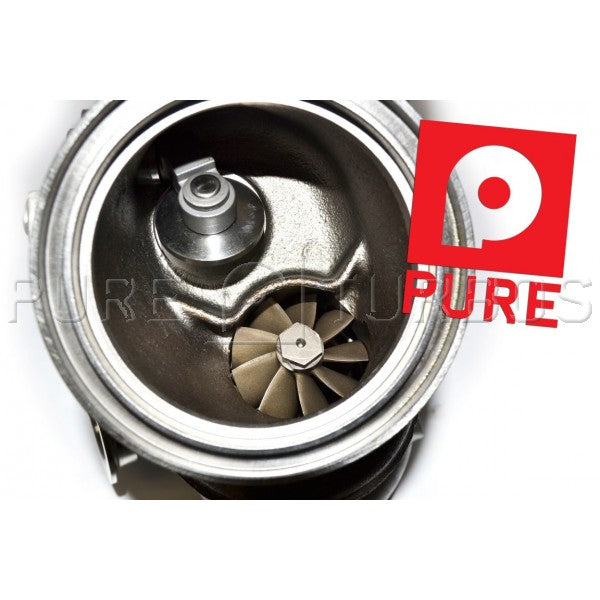

• High-flow turbine wheel
• Upgraded heavy-duty CHRA (center housing rotating assembly)
• VSR high-speed balanced

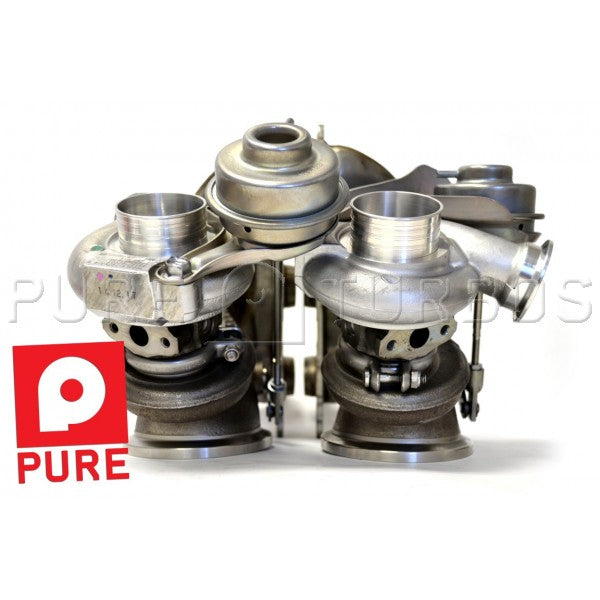

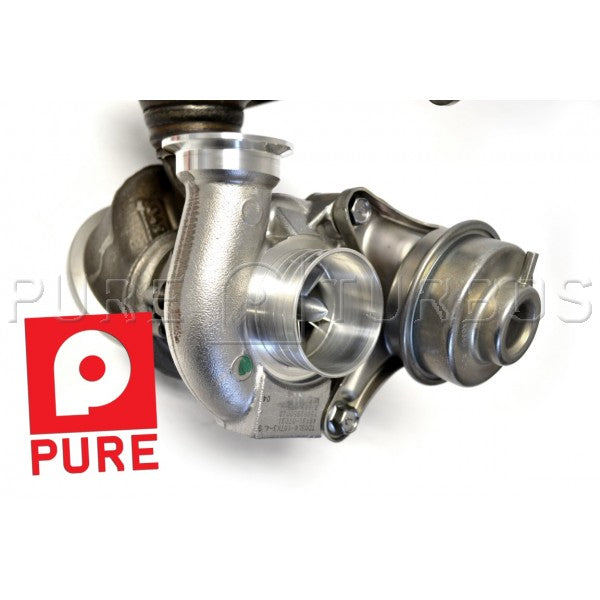

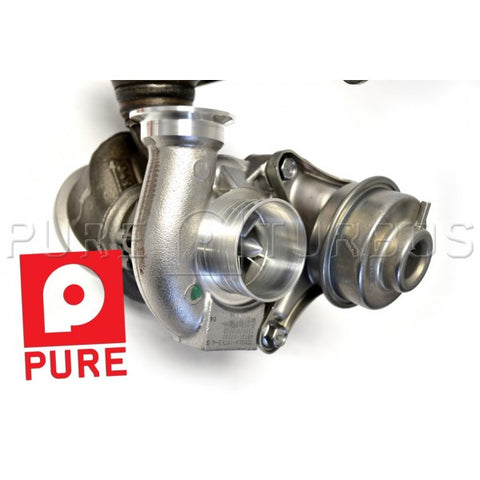

• Retains OEM housings
• Optional Pure 2" silicone inlet kit (no DV provision): +$200

PARTS INCLUDED

• Your N54 turbochargers upgraded to Pure Stage 2 (Daily Driver or Hi-Flow, as selected), as supplied by Pure Turbos
• Pure 2" silicone inlet pipe kit with five clamps, when that option is selected

TECH RESOURCES

Additional Parts Required

• Custom ECU tune: required by Pure Turbos for engine safety and to reach the rated power. Tuning platforms we sell: MHD Super License – BMW N54 or the Burger Motorsports JB4 Tuner (N54).
• A core: either send your original turbochargers in first, or pay the $300 refundable core deposit at order. Include the Pure Turbos core return sheet with your cores.
• Turbo inlets: Pure’s 2" silicone inlet kit is available as an option on this listing, or see our PURE Hi-Flow Silicone Turbo Inlet Pipe Kits listing. The Pure inlet kit does not include diverter valve recirculation.
• Turbo gaskets, O-rings, and oil and coolant line seals: single-use items that should be replaced during installation. They are not supplied with the turbochargers.
• Supporting fuel system: needed at higher power levels. Confirm your fueling before ordering; we can advise.

Installation

• Pure Turbos installation, pre-lube and break-in procedure (manufacturer FAQ): pureturbos.com/faq. Pre-lube the turbocharger through the oil inlet, idle 5–10 minutes without revving, then drive on low boost / light throttle until the car is properly tuned.
• Pure Turbos does not publish model-specific installation instructions or videos for this upgrade. Installation follows the factory turbocharger replacement procedure for the chassis; professional installation is recommended.
• Pure Turbos core return sheet (PDF): pure-turbos-core-return-sheet.pdf. Print it, fill it in and include it with your core shipment.
• Before sending cores to Pure, remove all accessories and hardware from them (oil lines, coolant lines, actuators, inlets and similar). Pure discards anything that is not part of the core unit.

Notes

• Send-in option: lead time starts once Pure receives your turbos.
• Core deposit option: the $300 deposit is refunded once your factory turbos are returned to Pure within 60 days of receiving your upgrade. Pure lists separate deposit choices for the 335i LHD and for all other models; both are $300.
• Pure’s product page does not state whether the price covers one or both turbochargers (the N54 is twin-turbo). Confirm with Speed Logic before ordering.
• Pure Turbos includes a limited 1-year / unlimited-mile warranty.
• Legal notice: these parts are for off-road use only and are legal solely for competition racing vehicles as defined under California law. They are not legal for use on public roads.
• Price is for the turbocharger(s) only; labor is not included.
