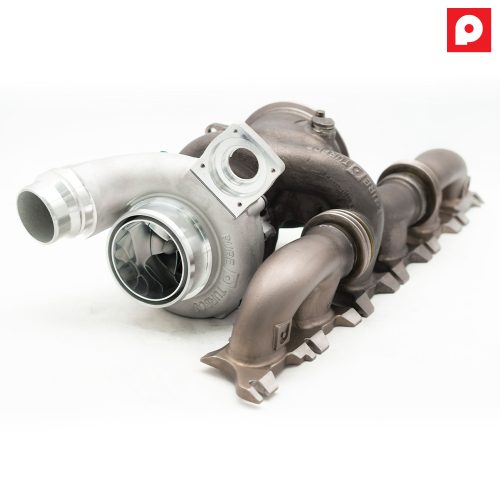

Pure Turbos PURE900 (NEW) Turbo Upgrade – Toyota GR Supra (A90/A91)

OVERVIEW

The Pure900 (NEW) is Pure Turbos' largest B58 turbo upgrade for the Toyota GR Supra (A90 / A91), built on a new aftermarket housing for a direct-fit installation. It combines a billet compressor wheel, a larger high-flow turbine wheel and an upgraded center housing rotating assembly (CHRA). Pure Turbos rates it as 800+ whp capable, with results depending on fuel and supporting modifications.

Because the housing is new, there is no core exchange and no core deposit; your factory turbo stays with you. Offered for both 6-Port and 2-Port manifold cars, with an optional T51R Mod Inlet.

SPECS

• 800+ whp capable (results vary by fuel and supporting modifications)
• Upgraded billet compressor wheel
• Larger, high-flow turbine wheel
• Upgraded heavy-duty CHRA (center housing rotating assembly)
• VSR high-speed balanced
• New aftermarket housing, direct fit; no core required
• Available for 6-Port and 2-Port manifold configurations
• Optional T51R Mod Inlet (+$375) for enhanced compressor induction sound

PARTS INCLUDED

• Pure900 (NEW) B58 turbocharger (single) on a new aftermarket housing
• Silicone inlet adapter (compatible with the factory airbox)
• T51R Mod Inlet, when that option is selected

TECH RESOURCES

Additional Parts Required

• Custom ECU tune: required per Pure Turbos, for engine safety and to reach the rated power. Tuning platforms we stock: MHD Super License – Toyota GR Supra (B58), Bootmod3 B58 Tune – Toyota GR Supra, JB4 Tuner – Toyota GR Supra.
• Vent-to-atmosphere (VTA) catch can: required. The factory PCV / CCV connections are no longer available with this turbo, and the factory EVAP line is no longer used.
• Turbo gaskets, O-rings, oil and coolant line seals: single-use items that should be replaced during installation; not supplied by Pure Turbos.
• Supporting fuel system: needed at this power level, for example an E85 blend with a flex-fuel kit such as the Fuel-It Bluetooth Flex Fuel Kit – Toyota GR Supra (B48/B58) or the MHD FlexFuel Kit – BMW G-Series / Toyota GR Supra. Confirm your fueling before ordering; we can advise.

Installation

• Pure Turbos does not publish installation instructions or videos for this upgrade; professional installation is recommended.
• Pure Turbos pre-lube and break-in procedure: Pure Turbos FAQ.
• The included silicone inlet is designed for the factory airbox; other intake systems may need modification.

Notes

• No core exchange or core deposit is needed for this version.
• Choose the manifold type that matches your car: 6-Port or 2-Port. Contact us with your VIN if you are unsure.
• The Turbo Install Kit option is a Speed Logic add-on; Pure Turbos does not offer an install kit with this turbo.
• Pure Turbos includes a limited 1-year / unlimited-mile warranty.
• Legal notice: these parts are for off-road use only and are legal solely for competition racing vehicles as defined under California law. They are not legal for use on public roads.
• Price is for the turbocharger only; labor is not included.
